dental cad cam 5 Axis Milling Machine zirconia
dental cad cam 5 Axis Milling Machine zirconia produces complex dental restorations such as crowns, bridges and implant components. Utilizing 5-axis technology, it offers exceptional precision and flexibility, making it easy to mill intricate shapes. The machine features a user-friendly touchscreen interface for convenient operation. It is compatible with a variety of milling materials, including zirconia blocks, PMMA, PEEK, and wax. The spindle operates at speeds of 6000-60000 RPM, providing efficient and precise milling. The rotary axis has a stroke of ±360° for versatile machining, and the machine is equipped with 14 tool positions and a tool size of 4x56mm shank diameter. With a rated power of 650W, with a Z-axis speed of 4000mm/min and an XY-axis speed of 6000mm/min.
- Product Introduction
Products Description
dental cad cam 5 Axis Milling Machine zirconia produces complex dental restorations such as crowns, bridges and implant components. Utilizing 5-axis technology, it offers exceptional precision and flexibility, making it easy to mill intricate shapes. The machine features a user-friendly touchscreen interface for convenient operation. It is compatible with a variety of milling materials, including zirconia blocks, PMMA, PEEK, and wax. The spindle operates at speeds of 6000-60000 RPM, providing efficient and precise milling. The rotary axis has a stroke of ±360° for versatile machining, and the machine is equipped with 14 tool positions and a tool size of 4x56mm shank diameter. With a rated power of 650W, with a Z-axis speed of 4000mm/min and an XY-axis speed of 6000mm/min.
Products parameter
The max speed of the spindle:6000-60000 rotation/min
The max speed of XYZ axis:Z axis 4000mm/min
XY axis6000mm/min
Help you save milling material Each zirconia block can produce 30% more dentures

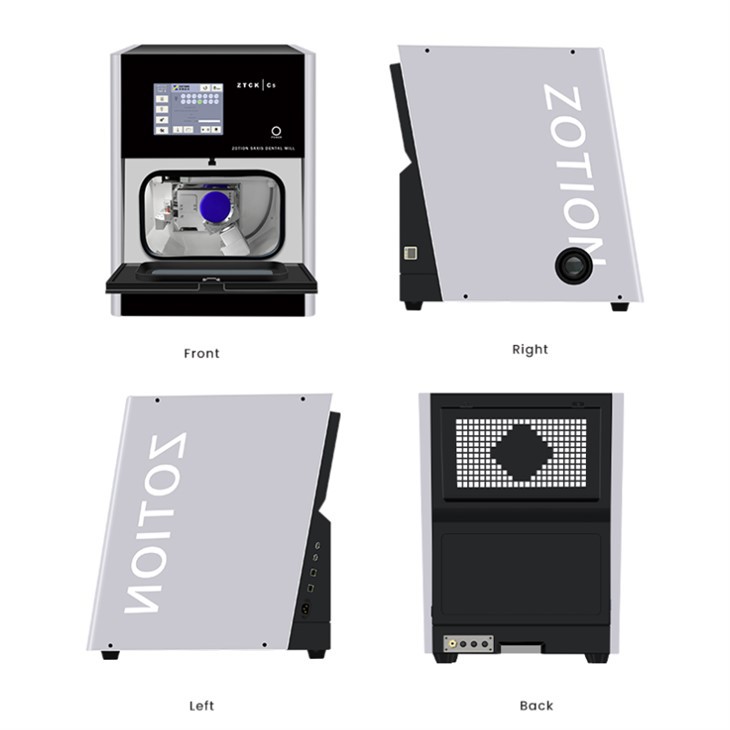

Size:64cm (width), 60cm (height), 49.2cm (length)
Milling material: Zirconia block, PMMA, PEEK, WAXSpindle RPM: 6000–6000RPMRotary axis stroke: A axis ±360°Tool number: 14 Tool size: Shank diameter 4*56mmRated Power: ≈650w
Products Details
Products advantages
1. Highest Precision
Premium spindle with precision bearing, 650W power, and 60,000 RPM
10-micron repetition accuracy
2. Maximum Variety
Supports all 98mm/98.5mm round discs with our unique 100° holder design, saving over 30% of material compared to standard 98mm holders
Large indication diversity with a +25° to 125° rotation angle in the 5th axis
3. Tremendous Stability
Processes all types of materials, including zirconia, PMMA, wax, PEEK, and more
Solid cast body for minimal vibrations
4. Outstanding Reliability
Operates day and night
Components made in Germany and Japan
12-month warranty
5. Maximum Efficiency
No calibration needed thanks to the stable structure
Automatic tool changer (14 tools, with 12 available options)
Stainless steel working space, easy to clean
Simple operation via internal computer and touchscreen
