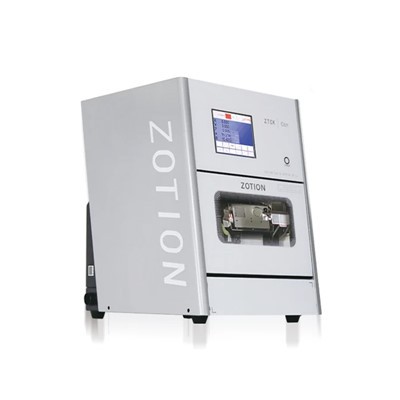

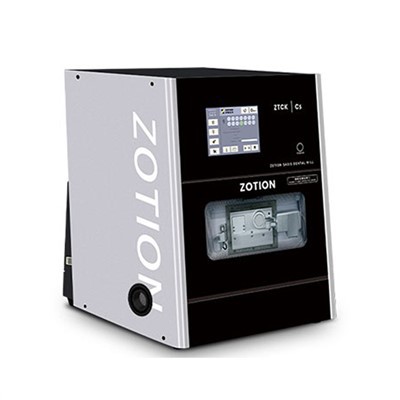

Zirconia Dental Milling Machine
Zirconia Dental Milling Machine is designed to handle milling materials with diameters of 98mm and 98.5mm, and a maximum thickness of 80mm. It offers high-speed performance with XYZ axis speeds of 4000mm/min (Z axis) and 6000mm/min (XY axis), and a spindle speed range of 6000-60000 RPM. The machine features versatile axis angles with an A-axis rotation of ±360° and a B-axis range of 25° to 115°. Power consumption is optimized, and the machine operates with low noise pollution. The automatic tool magazine can accommodate 8-14 milling burs and is designed for easy, hidden installation for efficient tool management.
- Product Introduction
Products Description

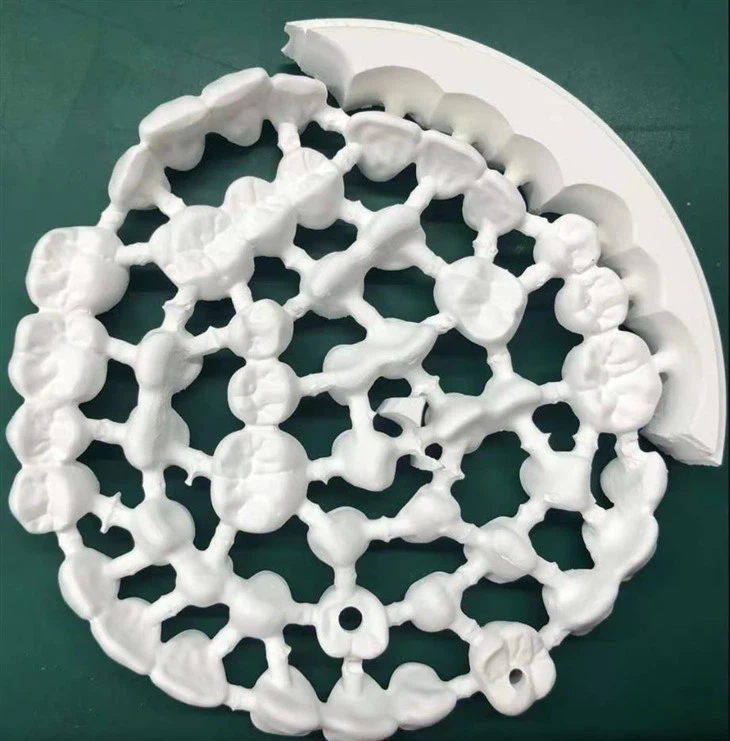

The Zirconia Dental Milling Machine is used in dental laboratories and milling centers. It is capable of milling materials such as zirconia, wax, PMMA and PEEK, and has a high-quality spindle and servo motor for stable performance.
Products Details
Products advantages
1. Intelligent Detection & Adaptive Adjustment
Unlike conventional machines, this CAD/CAM dental milling machine integrates intelligent detection and adaptive adjustment throughout the entire machining process.
After startup, the system automatically detects key parameters such as tool wear, tool length, and clamping force, and completes positioning and parameter optimization using built-in algorithms-without manual calibration or setup.
Benefits:
Compared with manual adjustment, this intelligent system reduces pre-processing time by 40% and lowers machining errors caused by human factors to below 0.003 mm.
2. Hidden Tool Magazine & Reduced Maintenance
To address common issues such as tool damage, dust contamination, and frequent maintenance, the machine is equipped with a flexible 8–14 tool magazine, supporting all tools required for rough milling, fine milling, and polishing of materials such as zirconia and PMMA.
During idle intervals, the tool magazine automatically retracts into a sealed chamber, isolating it from dust generated during processing.
Benefits:
Compared with conventional open tool magazines, this dynamic retractable design extends tool life by 35% and reduces maintenance frequency by 60%.
3. Full-Angle 5-Axis Machining Capability
Featuring a full-angle motion structure, the machine offers A-axis ±360° rotation and B-axis tilt from 25° to 115°, working in coordination with the XYZ axes to achieve true 5-axis simultaneous machining.
This design enables precise processing of undercuts, deep grooves, and complex anatomical structures that cannot be handled by traditional 3-axis or semi-5-axis machines.
4. Remote Control & Data Monitoring System
The machine supports network-based remote operation, equipped with a professional real-time monitoring and control system.
Users can remotely check spindle speed, tool wear, and machining progress, adjust parameters, and receive fault alerts via mobile devices or computers, without being physically present.
The system also automatically records machining data (processing time, tool usage, workpiece parameters), enabling traceability, process management, and quality analysis.
5. Innovative 100° Clamping System
To solve common issues such as unstable clamping, material displacement, and high material waste, the machine adopts an innovative 100° blank clamping structure.
Unlike traditional single-point clamping, this design provides multi-point uniform fixation, ensuring stability during high-speed milling without vibration or displacement.
Benefits:
Maximizes material utilization and significantly reduces waste caused by improper clamping.
factory
Cover Area
years experience
Exported Countries
Customer Services
Zotion was established in 2009 and has more than 15 years of production experience. We specialize in the research and development of dental restoration equipment and technology.
