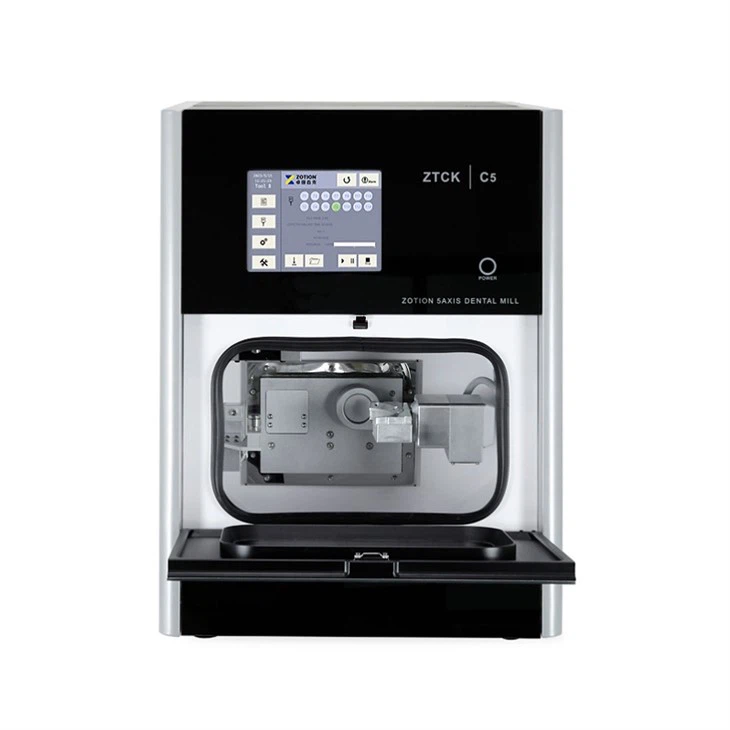

Dental CAD CAM Machine
Dental CAD CAM Machine,which is a dry and high precision milling machine for dental lab and milling center. It can mill zirconia,wax,pmma,peek. Dental CAD CAM Machine uses high quality spindle and servo motor,which ensures the stability of the milling machine.It is capable of milling materials with a maximum diameter of 98 mm or 98.5 mm and a maximum thickness of 80 mm. The Z-axis speed of the XYZ axis can reach 4000 mm/min, the maximum speed of the XY axis is 6000 mm/min, and the rotation speed of the spindle ranges from 6000 to 60,000 RPM. The A-axis can achieve a full rotation of 360°, and the angle range of the B-axis is +25° to -115°, providing a wide range of milling angles. The machine is equipped with an automatic tool change system and uses a 4 mm diameter and 56 mm length milling cutter. It is controlled through NC code and has USB 2.0 connection and 100M network access for easy data transfer. The machine supports 220V ±10%, 50/60Hz power supply and is very quiet during operation - less than 45 dBA when in standby mode and less than 70 dBA when milling, with noise levels varying depending on the material being milled. The machine should be installed indoors, with an ambient temperature between 5-40°C and an altitude of no more than 2000 meters. The dimensions of the machine are 470 mm (W) x 560 mm (D) x 650 mm (H) and it weighs 90 kg.
- Product Introduction
Products Description
This Dental CAD CAM Machine is capable of high-precision milling of materials such as zirconia, wax, PMMA and PEEK, and is equipped with a high-quality spindle and servo motor, which makes the machine run stably.
Products parameter
Products Details
Products advantages
factory
Cover Area
years experience
Exported Countries
Customer Services
Zotion is a company specializing in the development and production of CAD/CAM systems. Established in 2009 in Chongqing, a municipality directly under the Central Government of China, the company has a highly skilled and innovative R&D team. It collaborates with many well-known universities and research institutions both domestically and internationally to actively promote technological innovation within the industry.
The company boasts first-class production equipment and a strict quality management system. From raw material procurement to product design, production, testing, and after-sales service, Zotion ensures stringent quality control at every stage to guarantee the excellent performance and reliable quality of its equipment.
Zotion is committed to providing high-quality and efficient digital solutions to dental medical institutions worldwide. The company's products encompass various CAD/CAM systems, digital dental software, digital dental consumables, and more, all aimed at meeting the diverse needs of its customers.
In the future, Zotion will continue to uphold its corporate purpose of "professionalism, innovation, service, and quality," striving to improve product quality and service levels, and contributing to the digital development of the global dental industry.
