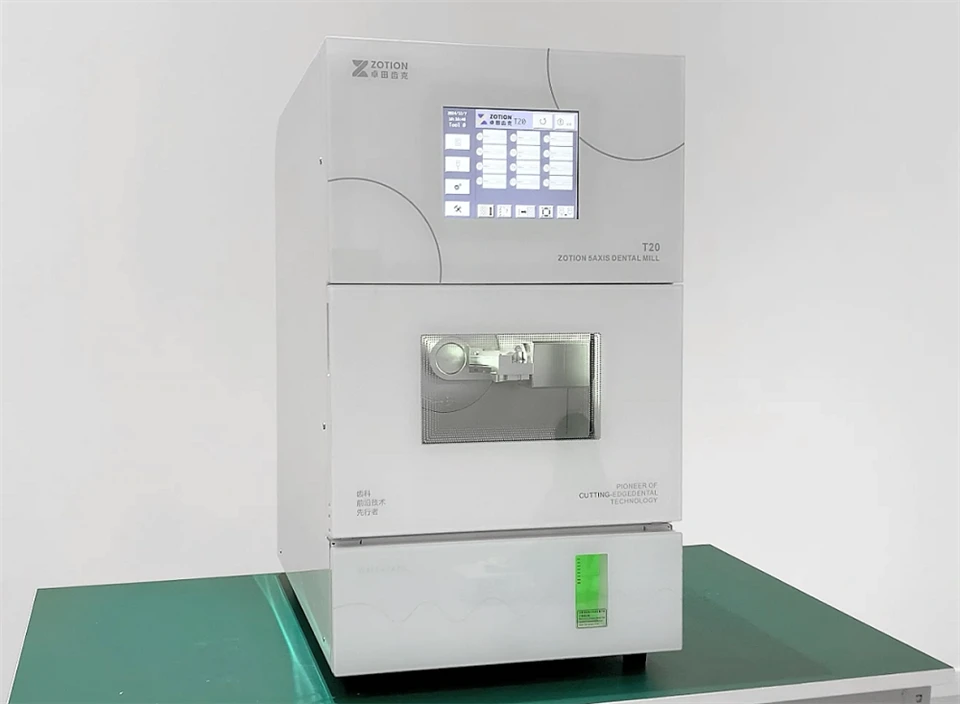

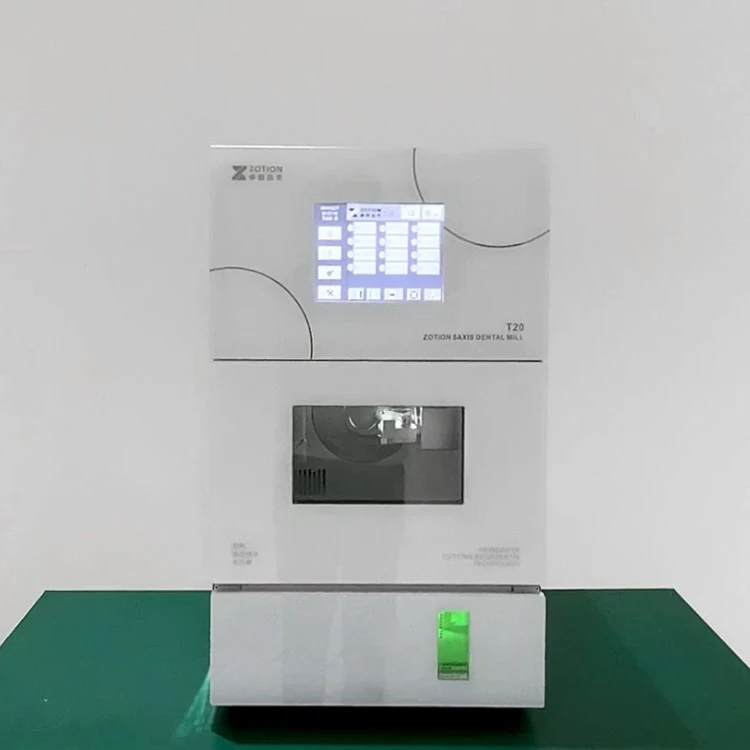

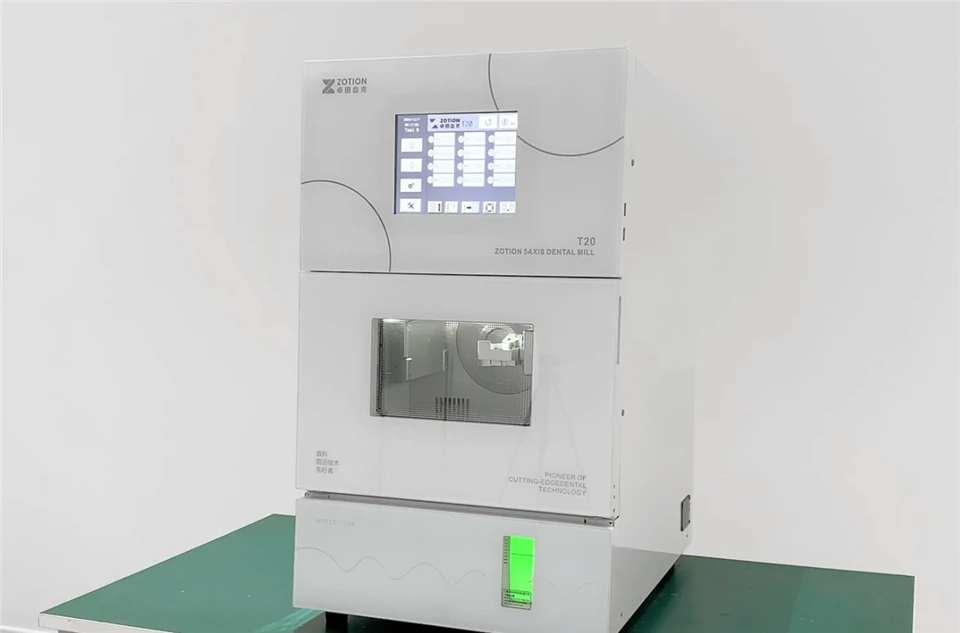

ZOTION T20W-E Chairside Dental 5 Axis CNC Wet Milling Machine For Glass Ceramics And Premill Abutment



Zotion T20W-E is a 5 axis wet cad cam milling machine.It's new model in 2025. It's the most economic 5axis cad cam milling machine in China. It can mill wax,pmma, glass ceramics and Titanium premill abutment.





Item	Specification
Milling materials	wax, pmma, glass ceramics and Titanium premill abutment.
Axis number	5 axis
Spindle RPM	10000-80000RPM
Rotation range (first entry)	A axis ±360 °,B axis ±30°
Cooling type	watering cooling
Tool change	Automatic tool change(ATC)
Tools number	12
Tool size	Shank diameter 4*56 mm
XYZ Max running speed	Z Axis: 4000 mm/min,XYaxis:6000mm/min
Program interface	USB 2.0,100M Internet access
Control code	NC code
Power	220v±10%,50/60 HZ/1800W
Spindle Power	1400 Watt (germany electrike spindle)
Rotation range (second entry)	A axis +360 ° B axis +25° to -135°
Weight	≈72 kg
The size of the machine	420mm726mm513mm
Linear axis, precision ball screw drive. Polished version.Motor with resolution < 1μm.polished precision guides made of high alloy steel. Repeatability ±0.003mm
Working decibel:＜45decibel in standby,＜70 decibel when running.The data is tested by UT353. lt exists tolerance when milling different materials







1.High-performance Core Configuration:Built with 80,000rpm German water-cooled spindle for smooth surface finish and extended tool life

2.Triple Protection System: Triple protection system: auto calibration, tool life monitoring and power-off resume

3.Efficient & User-friendly:12-station ATC design, low noise operation and compact structure.User-friendly design, ideal for both dental clinics and laboratories

4. No air compressor required, saves customers' cost, simpler and more convenient for daily operation

5.Full material compatibility, suitable for glass ceramic, Titanium Premill Abutment, resin disc, wax block and PEEK disc

If you are interested in this product and want to know the dental milling machine price and other information, welcome to consult us!



Chongqing Zotion Dentistry Technology Co., Ltd. is a professional manufacturer integrating R&D, production and sales of dental products. We specialize in this field for more than 16 years. We were established in Chongqing, China in 2009 and obtained the medical device quality management system certification in 2009. It is also the first manufacturer in China to produce CADCAM 5 axis milling machines!









FAQ:

Q1: What materials can this machine process?

A:It supports a wide range of dental materials including:

Wax,PMMA,Glass ceramics,Titanium premill abutments

👉 It covers applications from temporary restorations to semi-permanent restorations, meeting most CAD/CAM dental lab requirements.

Q2: What is the difference between wet milling and dry milling?

A:Wet milling uses a water cooling system (Water Cooling Technology).

👉 Key benefits:

Reduces cutting heat
Minimizes micro-cracks in glass ceramics
Improves surface quality
Extends tool life

It is especially recommended for:
👉 Glass ceramics + titanium materials

Q3: Is the machine accurate and stable for mass production?

A:Yes. The machine offers:

Repeat positioning accuracy: ±0.003mm
High-precision ball screw system
Linear guide rail structure

👉 Result:
Stable long-term production performance, suitable for dental labs and batch manufacturing.

Q4: Is the spindle powerful enough for hard materials?

A:The machine is equipped with a 1400W high-performance German spindle.

Speed range: 10000 – 80,000 RPM
Low speed: high torque for hard materials
High speed: fine precision cutting

👉 Ensures stable performance for titanium and ceramic processing.

Q5: Does it support automatic tool changing? How many tools?

A:Yes, it comes with a:

👉 12-tool automatic tool changer (ATC system)

Tool size: Φ4 × 56mm
Automatic switching for roughing / finishing / different materials

👉 Benefit:
Reduces downtime and improves continuous production efficiency.

Q6: What control system and data interface does it use?

A:The machine uses:

NC code control system
USB 2.0 interface
100M Ethernet port

👉 Easy file transfer and stable production workflow integration with CAD/CAM systems.

Q7: What are the main advantages compared to other brands?

A:This model stands out with:

Wet milling system (ceramic + titanium compatible)
1400W German spindle
±0.003mm high precision structure
12-tool automatic tool changer
Cost-effective alternative to European machines

👉 Ideal for upgrading dental laboratories at a lower investment cost.

Q8: What is the main market positioning?

A:This machine is for:

Dental laboratories
CAD/CAM production centers
Clinic-based milling systems

👉 It supports multi-material production with high precision and stable performance.
