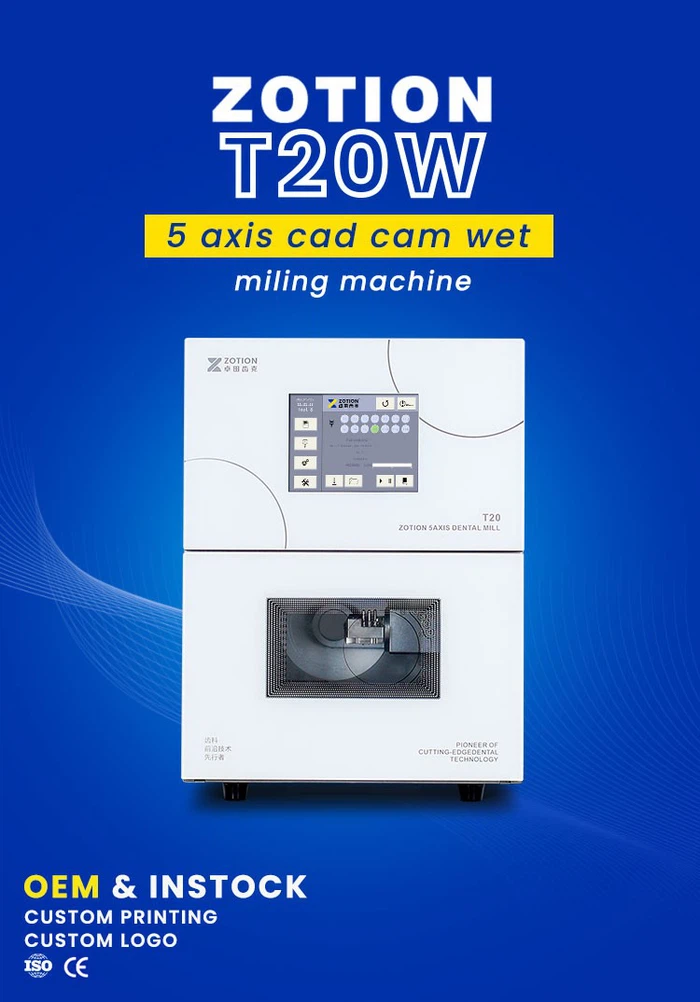

Dental Lab Equipment 5 Axis Wet Milling Machine



Dental Lab Equipment 5 Axis Wet Milling Machine is designed and produced by Zotion. It has the characteristics of high quality and high performance. It is suitable for dental laboratories and is an economical dental equipment.

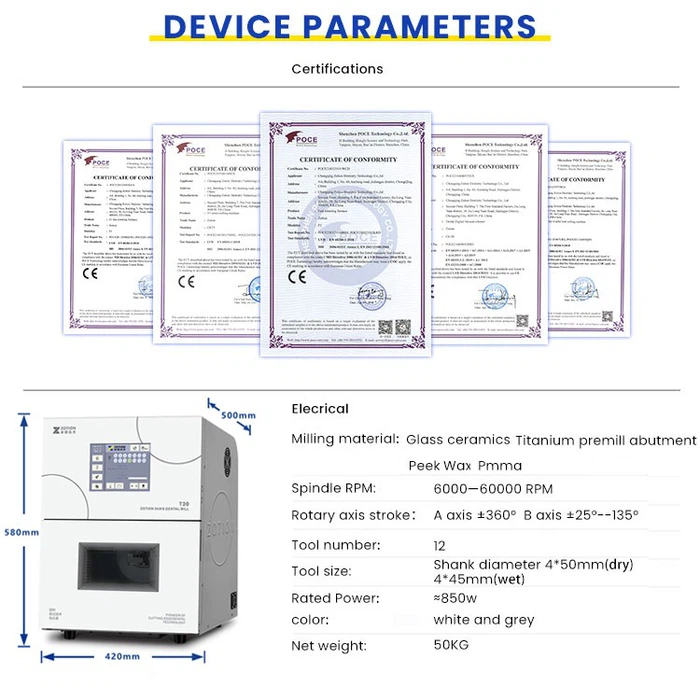

What material can mill	Glass ceramics ,Titanium premill abutment,PMMA
XYZ max running speed	Z axis 60000mm/min XY axis 6000mm/min
Spindle speed	6000--60000 RPM
Rotary axis stroke	A axis : 360°Baxis :土25°_-135°

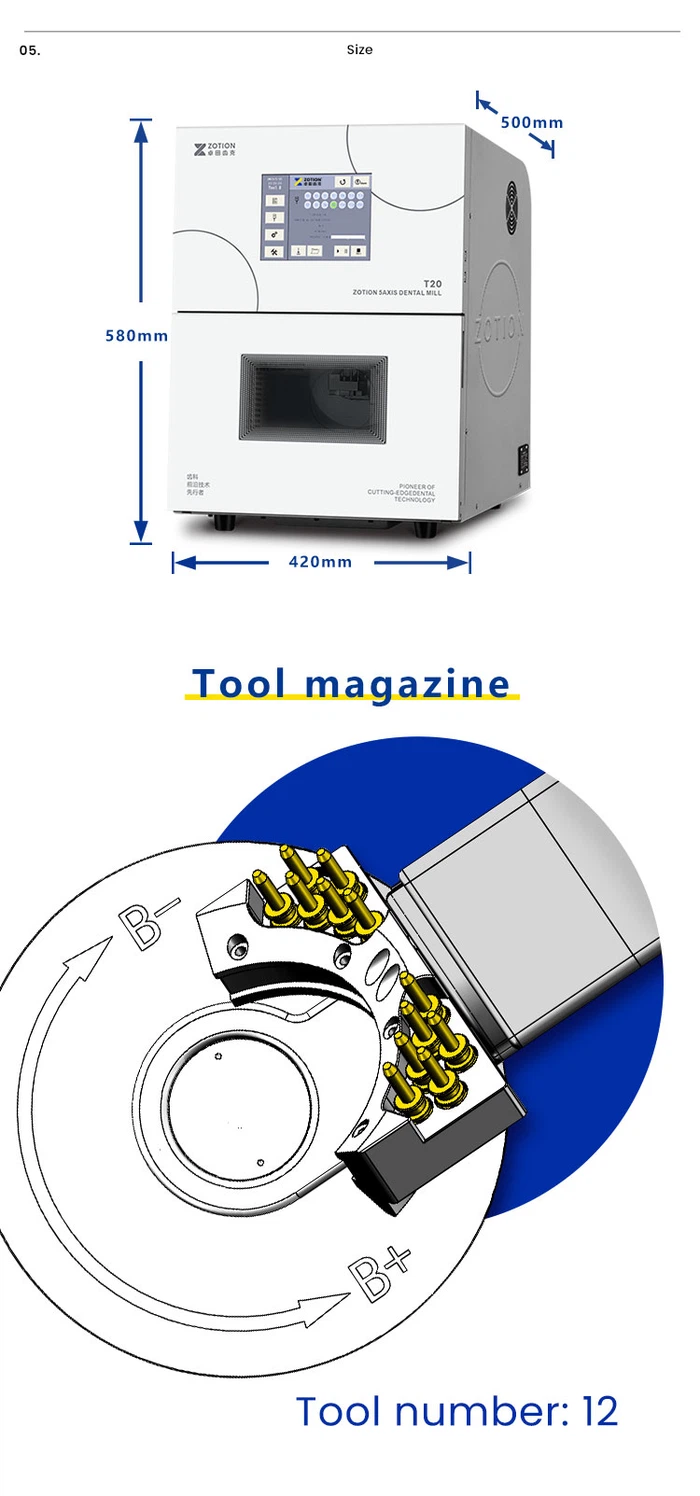

Tool magazine type	Professional automatic tool magazine
tool quantity	12 tools
Tool Size	Shank diameter 4mm*45mm total length
Control code	NC code
Program interface	USB2.0,100M network port
Power	AC 220V 土10% ,50/60 Hz
Spindle power:	850w
Working noise	<45 decibel in standby,<70 decibel when running. The data is tested by UT353.It exists tolerance when milling different material
Net weight	50kg
Size	W*L*H 420mm*540mm*580mm



Advantages of Dental Lab Equipment 5 Axis Wet Milling Machine：



1.50KG - small & compact

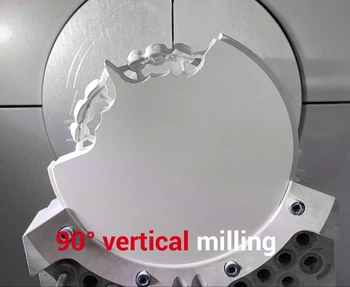

​2. ​A axis ±360°, B axis angle +25° -135° - make sure almost no undercut areas in milling

​3. Milling bur lifetime show - easy to know how long the burs can be used

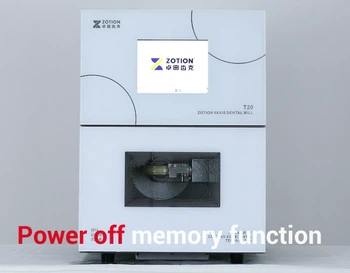

​4. Power off memory function - continue mill from the point stops by sudden power off, save time

​5. Milling time shown - easy to know how much timm need for current STL file

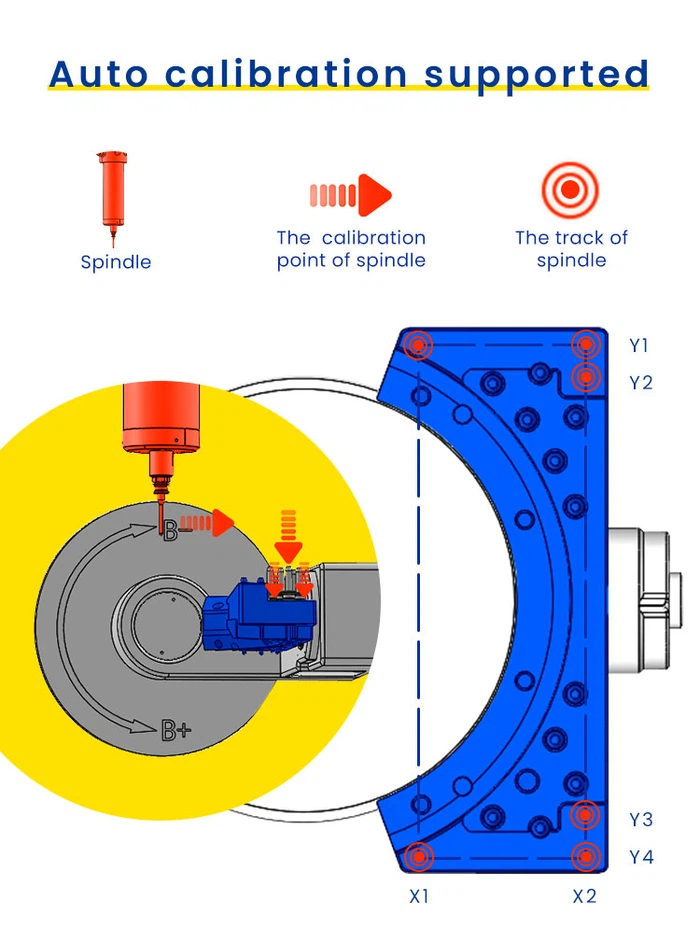

​6. One click calibration - easy to calibrate, no need mill square as usual, save time.

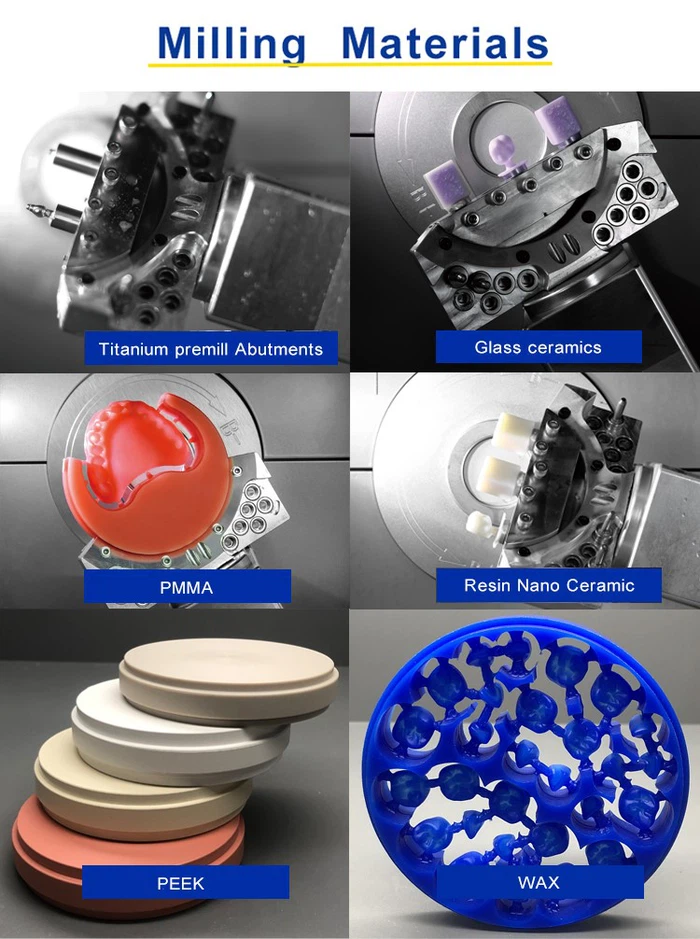

Dental Lab Equipment 5 Axis Wet Milling Machine can mill following materials:

1.Glass ceramic (Lithium disilicate) block

2.Pre-milled abutment

3.PMMA disc

4.Resin block

Zotion in 2009 as the first manufacturer design and produce dental zirconia discs and milling machines, our products have been sold to over 120 countries and areas, also sold technologies to many factories in China, we currently produce dental lab materials(zirconia/PMMA/wax/PEEK), and dental equipments(milling machines, sintering furnaces and vacuum cleaners). All our products got CE and ISO certifications with great quality control and performance, famous in china and abroad with great reputation in our customers.









Our service:

1.Instant reply: Sales team always online for 24 hours ready for clients any questions.

2.Strict Quality Control: each machine will be check and tested over 100 hours before shipping.

3.Professional sales team: All sales being in this business over 5 years at least, with full experience of all our products

4.Great after-sales service: We provide professional installation and maintenance video guide, support remote help for software problems and online video call after service.



FAQ:

Q1. Are you a manufacturer company?

A: We are the best designing and producing factory in China for dental milling machines in China over 14 years
Q2. How long is your delivery time? If I want to customize the products, how long does it take?
1. Production time 5-7 days if have ready stocks, 7-10 days if no ready stock, shipping time depends on the way you choose for shipping
2. We accept OEM services for our customers. Production time need 15-30 days according to the OEM extent.
Q3.How can I order?

Steps: Ask quotation for product – confirm product details payment ways – make proforma invoice – arrange payment to us – arrange production & shipping

Q4. How is your company's product after-sales service?
Machine warranty is 1 year, we will supply free parts if have any problem during the warranty. Also we can provide lifetime maintenance guide.

If have any questions/problems during in using, we will take video to show you directly how to solve it.
Q5. Our country's power supply and plug are different. How do you solve it?
Our machine mainly suggest 220V for more steady power supply during milling, if need transformer also can supply. Outlet can supply according to your country request.
Q6. How to pay?
We mainly accept T/T Bank transfer (USD/Euro/RMB), Alibaba (Master card/Visa/paypal…) , Western Union
Q7. How is the package of goods? Delivery methods?
1. Wooden boxes with full protection foam inside

2. Acceptable for by air/sea/courier companies, you can also come pick if have shipping agent in China.

Hot Tags: Dental Lab Equipment 5 Axis Wet Milling Machine, China, suppliers, manufacturers, factory, customized
