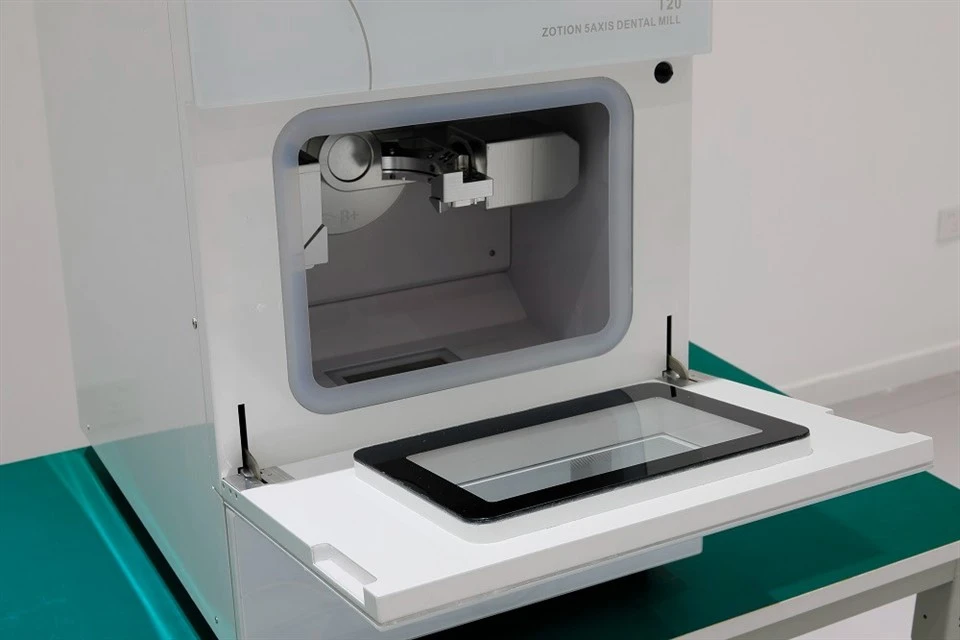

ZOTION T20D-E 5 Axis Dry CAD CAM Milling Machine For Zirconia Block PMMA Wax Peek
Zotion T20D—E is a 5 axis dry cad cam milling machine.It’s new model in 2025. It’s the most economic 5axis cad cam milling machine in China. It can mill zirconia block, wax,pmma, PEEK.
- Product Introduction
Products Description
Looking for a real upgrade for your dental lab or clinic? The ZOTION T20D-E is built for dry milling Zirconia, PMMA, Wax, and PEEK, bringing stable automation and consistent precision right to the workbench.
The machine is equipped with an 800W German high-performance spindle running up to 60,000 RPM, enabling smooth cutting with clean margins and reduced finishing time. A 12-tool Automatic Tool Changer keeps the process continuous, reducing manual intervention during production.
Its motion system is based on a precision ball screw drive with fine-ground linear guides. Motor resolution is controlled within <1 μm, and repeat positioning accuracy reaches ±0.003 mm, supporting stable results in long-term batch production.
The 5-axis structure covers A-axis ±360° and B-axis +25° to -135°, allowing deep cavities, undercuts, and complex geometries to be processed in one setup without re-clamping.
Compact size (420 × 540 × 500 mm) and light weight (57 kg) make it suitable for small to medium labs. Natural air cooling keeps the system simple, reducing maintenance requirements and eliminating the need for additional cooling equipment. Noise stays below 70 dB during operation, keeping the working environment comfortable.
Products parameter
| Parameter | Specification |
|---|---|
| Milling materials | PMMA, Wax, Zirconia, PEEK |
| Axis number | 5-axis simultaneous milling |
| Spindle speed (RPM) | 6,000 – 60,000 RPM |
| Cooling type | Natural air cooling |
| Tool change system | Automatic Tool Changer (ATC) |
| Tool capacity | 12 tools |
| Tool size | Φ4 × 56 mm shank diameter |
| XYZ max speed | Z axis: 4000 mm/minXY axis: 6000 mm/min |
| Control interface | USB 2.0 / 100M Ethernet port |
| Control code | NC code |
| Power supply | 220V ±10%, 50/60Hz |
| Power consumption | 1200W |
| Max spindle power | 800W German high-performance spindle |
Products advantages
1.Supports multiple materials: Zirconia, PEEK, PMMA and wax
2.High-precision Axis Control: Adopts 5-axis linkage with wide processing range (A-axis ±360°, B-axis +25°~-135°) for high-precision machining
3.Intelligent Management System: Equipped with automatic tool change, auto calibration, tool life management and power-off resume
4.Wide Application: High speed and high accuracy, perfectly suitable for dental clinics and labs
5.No air compressor required, saves customers' cost, simpler and more convenient for daily operation
factory
16+
Years Experience
2,500m2
Cover Area
24h
Customer Services
120+
Exported Countries
Chongqing Zotion Dentistry Technology Co., Ltd. is a professional manufacturer integrating R&D, production and sales of dental products. We specialize in this field for more than 16 years. We were established in Chongqing, China in 2009 and obtained the medical device quality management system certification in 2009. It is also the first manufacturer in China to produce CADCAM 5 axis milling machines!
customer feedback
FAQ:
Q1: Does this machine require an air compressor or external air supply?
A: No, it does not. The machine adopts a natural air cooling system (No air compressor required), which reduces installation requirements and lowers both initial investment and maintenance costs.
Q2: Is the maintenance of this machine complicated or frequent?
A: No. The machine uses a precision ball screw and linear guide system, which ensures stable performance with low maintenance requirements. Daily maintenance only includes basic cleaning and tool inspection. No hydraulic or complex cooling system is needed.
Q3: How is tool life managed? Does it require manual tracking?
A: The system includes an automatic tool life management function. It records tool usage cycles and working status automatically. When a tool reaches its service limit, the system will alert the operator to replace it, reducing human error.
Q4: Will long-time continuous operation affect stability?
A: No. The machine is designed with an industrial-grade structure, including high-rigidity frame and precision guide system. It also supports automatic calibration and stable machining control, making it suitable for long continuous operation.
Q5: What happens in case of a power failure? Is data lost?
A: The machine supports power-off recovery. It automatically saves machining path and working status. After power is restored, it can resume from the last interruption point without data loss or rework.
Q6: Is it difficult to operate? Do I need a professional technician?
A: The operation is user-friendly. With automatic tool change, auto calibration, and pre-set parameters, most users can operate the machine independently after short training.
Q7: Does it support remote management or multi-machine control?
A: Yes. The machine supports Ethernet (100M network port) for data transfer, enabling centralized file management and multi-machine production coordination, ideal for scalable dental labs.
Q8: What is the market positioning of this machine?
A: It is positioned as a compact entry-level 5-axis dental milling machine, designed to help traditional dental labs upgrade to a CAD/CAM digital workflow with lower investment.
Q9: What are its limitations compared to larger industrial models?
A: As a compact system, it is mainly optimized for dental materials such as zirconia, PMMA, wax, and similar blocks. It is not designed for large industrial blanks or heavy metal machining tasks.
