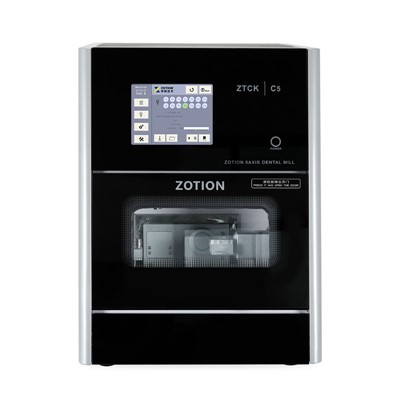

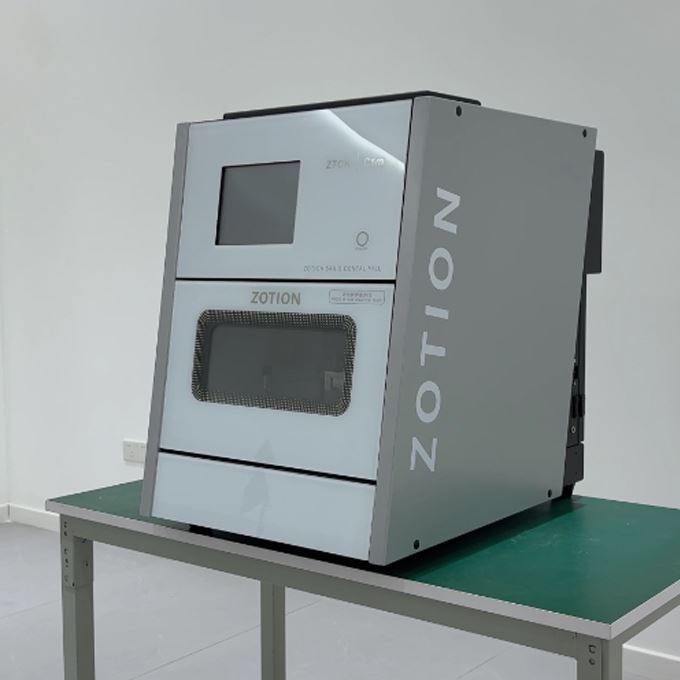

Dental Cad Cam Milling Machine 5 axis Milling Machine For Glass Ceramic
Dental Cad Cam Milling Machine 5 axis Milling Machine For Glass Ceramic.The model is C5M, It is a wet milling machine,For milling PMMA disk, Glass ceramics, Metal disc(Crown/Bridge), Titanium Premill Abutment. C5m has a High power spindle ,High quality servo motor.It supports 4-axis and 5-axis milling options, and the maximum operating speed of the XYZ axis is 4000 mm/min for the Z axis and 6000 mm/min for the XY axis. The spindle speed range is 6000 to 60,000 RPM. The A axis provides ±360° rotation, and the B axis provides +30° rotation for 5-axis milling. Using water cooling for proper thermal management, the tool magazine can automatically accommodate up to 14 tools with a shank diameter of 4*56 mm. It uses NC code operation and is compatible with USB 2.0 interface and 100M network port for convenient data transmission. The machine requires AC220V ±10%, 50/60 Hz power supply and consumes 650W. It is quiet in operation, with noise levels below 45 dBA in standby mode and below 70 dBA in operation, depending on the material being milled. The machine is compact, measuring 490mm (W) x 620mm (D) x 625mm (H) and weighing 105 kg net.
- Product Introduction
Products Description
Dental Cad Cam Milling Machine 5 axis Milling Machine For Glass Ceramic supports 5-axis linkage, has extremely high processing flexibility, and can complete the milling of complex shapes and fine structures.Dental Cad Cam Milling Machine 5 axis Milling Machine For Glass Ceramic is equipped with an automatic tool changing system, which can accommodate up to 14 tools with a tool holder diameter of 4*56 mm, supporting fast tool replacement and saving production time. The water cooling system effectively reduces heat accumulation and ensures continuous and stable processing accuracy. The equipment supports NC code operation and is equipped with USB 2.0 and 100M network ports to facilitate data transmission and connection with CAD/CAM systems. The machine power is 650W and the noise level is less than 70 dBA, which is suitable for long-term operation.
Products parameter
Products Details
Products advantages
1.multiple function fixture for different materials
2.memory function
3.automatically calibration functions
factory
Cover Area
years experience
Exported Countries
Customer Services
Products certificates
customer feedback
Customer Comments:
"We have been using the Dental Cad Cam Milling Machine 5 axis Milling Machine For Glass Ceramic for several months now and it has truly exceeded our expectations. Here are the key benefits we have experienced:
Precision and Accuracy: With high precision, we are able to mill complex shapes and intricate details in glass, ceramics, and metals, including titanium, with perfect precision.
Versatility: The machine supports a wide range of materials, including glass, ceramics, metal discs, and titanium posts
Milling capabilities are high speed, which reduces processing time.
Hot Tags: Dental Cad Cam Milling Machine 5 axis Milling Machine For Glass Ceramic, China, suppliers, manufacturers, factory, customized
