Dental Lab Equipment Titanium Premill Abutment 5 Axis Milling Machine



The Dental Lab Equipment Titanium Premill Abutment 5 Axis Milling Machine can manufacture a variety of dental restorations (including crowns, bridges and abutments). The machine supports a wide range of milling materials, such as glass ceramics, titanium posts, titanium disks, PMMA and PEEK. The spindle operates in a speed range of 6000-60000 RPM, while the rotary axis provides +360° travel on the A-axis. Equipped with a tool magazine that can accommodate up to 14 tools with a shank diameter of 4×56 mm, it ensures flexibility in handling a variety of milling tasks. The machine has a rated power of approximately 650W and a maximum operating speed of 4000 mm/min on the Z axis and 6000 mm/min on the XY axis, allowing for efficient and precise milling. Its 5-axis milling technology with an accuracy of ±1° can provide high-precision results.







Tool magazine type	Automatic
Tool numbers	14
Tool size	Shank diameter 4*56 mm
Control code	NC code
Program interface	USB 2.0 ,100M network port
Power requirement	AC220v +-10%,50/60 Hz
Power consumption	650w
Working decibel	<45 decibels in standby:, < 70 decibels when running,The data was tested by UT353,the level of the noise varies when different materialis used
Net Weight	105 kg
Size	WLH 490mm*620mm*625mm













1. Multi-material fixture system
Fixtures support wax, PMMA, glass ceramics, composite resin, and titanium. Different shapes and sizes can be clamped directly without changing the basic setup.
Stable fixation keeps the material steady during milling and reduces vibration-related errors.

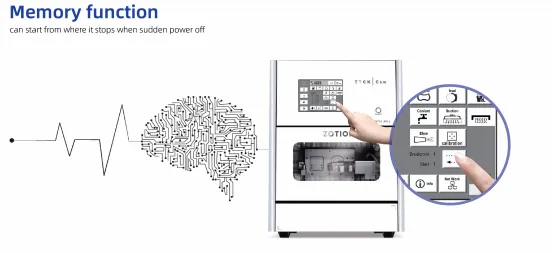

2. Program memory function
Milling parameters such as tool paths, speeds, and material settings can be stored in the system. Saved programs can be reused for the same type of restoration.

This reduces repeated setup work, shortens preparation time, and keeps machining results consistent across batches.

3. Automatic alignment adjustment
The system checks tool position, tilt, and working origin during operation. Small deviations caused by wear or temperature changes are corrected automatically.

This helps maintain machining accuracy without frequent manual recalibration and keeps the process stable over long runs.

4. Remote operation (optional)
The machine can be connected to a network for remote monitoring and control. Start, stop, and parameter adjustment can be done from a distance.

This allows easier management of multiple machines and helps technicians respond quickly when issues appear.

5. Automatic measuring head + touchscreen control
A built-in probe continuously checks tool position and adjusts the working origin during machining.
The touchscreen interface simplifies operation and reduces setup steps.

This setup helps reduce positioning errors and keeps operation straightforward, even for new users.

6. 90° vertical machining capability
The system supports vertical milling at 90° angles, allowing direct processing of functional surfaces and detailed structures.

This improves edge definition, fit accuracy, and surface detail without repositioning the workpiece.
