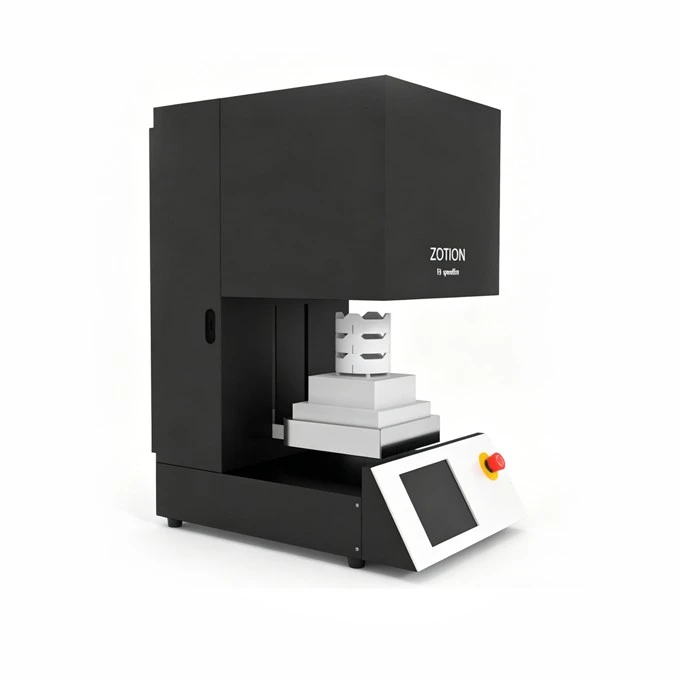

Zotion F3 Fast Sintering Dental Zirconia Furnace High Speed Sintering Oven For Dental Lab
The F3 is a newly launched dental zirconia sintering furnace from Zotion, featuring upgrades in heating structure, temperature control, and overall stability. The device adopts an integrated display and control design, reducing signal interference during operation, providing more direct operational feedback, and ensuring greater stability during prolonged high-temperature operation.
- Product Introduction
Products Description
The F3 is a newly launched dental zirconia sintering furnace from Zotion, featuring upgrades in heating structure, temperature control, and overall stability. The device adopts an integrated display and control design, reducing signal interference during operation, providing more direct operational feedback, and ensuring greater stability during prolonged high-temperature operation.
| Parameter | Value |
| Rated voltage | Interflow 220 VAC±10 % |
| Rated Power | Max 4000w |
| Temperature control precision | ±1°C |
| Size | 575*400*770mm |
| Net Weight | 52.5kg |
| Rated Temperature | Maximum temperature 1600°C |
| Max heating rate | Max heating rate 100°C/min. |
| Sintering chamber(mm) | H:170xL:140xD:140, 3 layers sintering trays |
| Sintering function | Zirconia sintering |
| Heating element | 6 silicon molybdenum (MoSi2) heating elements |
Products advantages
The heating system uses six heating elements, combined with a redesigned thermal field to create a 360° three-dimensional heating environment. Temperature distribution inside the chamber is more uniform. When multiple trays are sintered at the same time, the temperature difference between layers is smaller, and the consistency of color and shrinkage is improved.
F3 uses a pure DC heating system. Compared with traditional AC heating, the power output is more stable. Wear on heating elements is reduced, and common issues such as flaking and contamination of MoSi₂ heating rods are minimized, resulting in a longer service life.
Sintered finished product display
factory
17+
Years Experience
2,500m2
Cover Area
24h
Customer Services
120+
Exported Countries
Chongqing Zotion Dentistry Technology Co., Ltd. - a manufacturer with 17+ years experience in dental zirconia,dental sintering furnace,dental milling machine
Exporting to 120+ countries (CE / ISO13485 certified).
