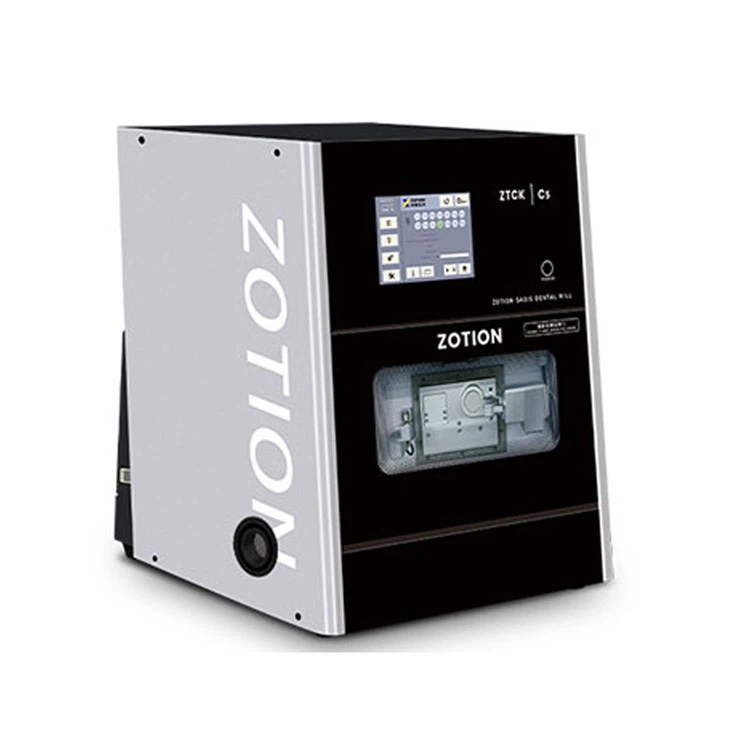

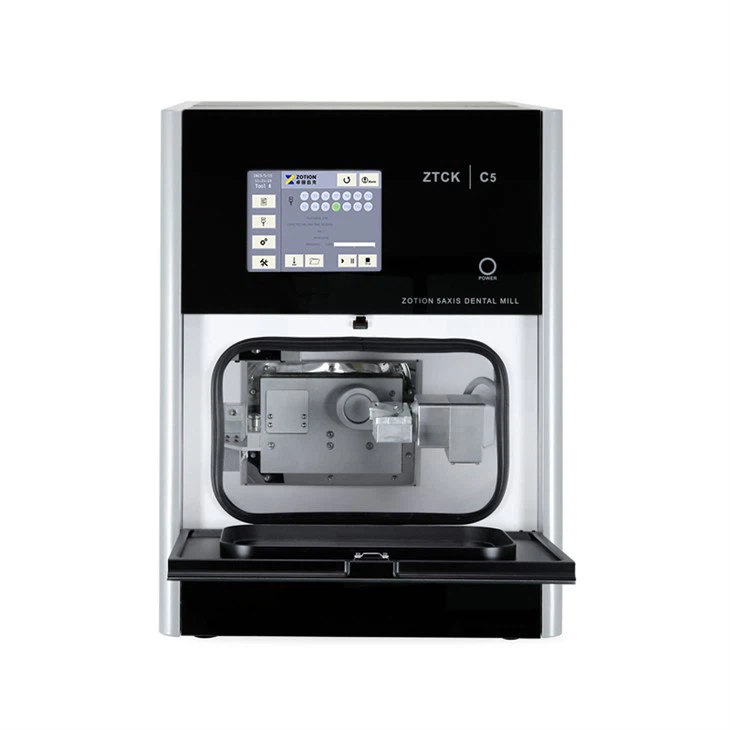

5 axis Dental Cad Cam Dry Milling Machine



Zotion 5th Generation 5-axis Dental Milling Machine, 5 axis Dental Cad Cam Dry Milling Machine, is used for CAD/CAM processing of dental materials such as zirconia, wax, PEEK and PMMA. It has reliable performance and a wide range of processing angles.

Machining accuracy: ±0.01 mm

Spindle speed: up to 60,000 RPM

Tool magazine: 8 or 14 tools (optional)

A-axis: ±360° rotation

B-axis: +25° to -115° tilt

Built-in probe for automatic origin calibration

Integrated CNC system with touchscreen (no external PC required)







1. High-speed spindle performance
The spindle runs up to 60,000 RPM, keeping cutting stable across zirconia and other hard materials. Surface finish is consistent, with low vibration during high-speed milling.

2. 5-axis simultaneous machining
Full 5-axis linkage allows multi-angle cutting in one cycle. Undercuts, implant structures, and complex restorations can be completed without repositioning.

3. 100° blank holder (patented design)
The angled holder improves material usage during milling. Compared with standard fixtures, zirconia utilization can increase by about 30%.

4. Automatic calibration system
Built-in measuring probe checks tool position and work origin at startup. No manual calibration required before milling.

5. Real-time bus control system
The CPU communicates with all 5 axes through a bilateral connection. Data transfer is faster and more stable compared with traditional single-channel systems.

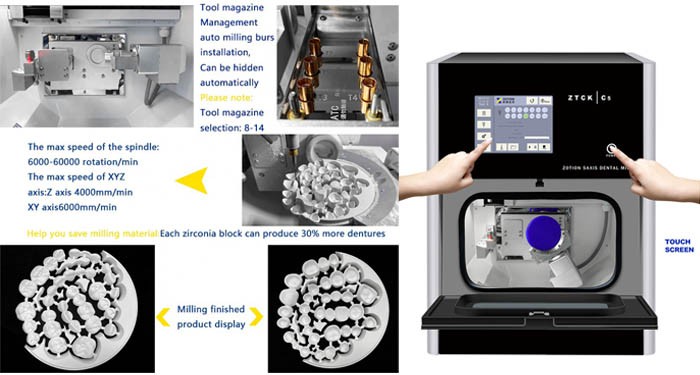

6. Hidden automatic tool magazine
The tool magazine retracts when not in use. This reduces dust exposure from zirconia and PMMA milling, helping maintain tool accuracy and extending tool life.

7. High-precision transmission components

Harmonic reducer for accurate motion control

THK guide rails and ball screws

Panasonic servo motors
These components keep axis movement stable during long machining cycles.

8. Active dust protection design
The structure reduces dust accumulation inside the machine. Internal components stay cleaner, which supports long-term operation.

9. Integrated system design
Built-in CNC computer and touchscreen simplify setup. No external computer is required. Operation and monitoring are done directly on the machine.

10. Status indicator system
LED signal light shows machine status during operation, making it easy to check running conditions from a distance.

11. Model-free workflow support
Works with intraoral scan data. Restorations can be milled directly without creating a physical model, reducing steps and saving time.

12. Wide material compatibility
Handles zirconia, PMMA, PEEK, wax, and composite materials. Suitable for crowns, bridges, inlays, onlays, and implant components.

13. Service support

Warranty: 1 year

Technical support available for installation, operation, and maintenance















Here is the dental equipment production workshop. We can produce 4,000 units of the C5 dental milling machine each year. As long as you need it, we can manufacture it. Our products adhere strictly to standards from raw material procurement to processing and final production, ensuring consistency in our products.
