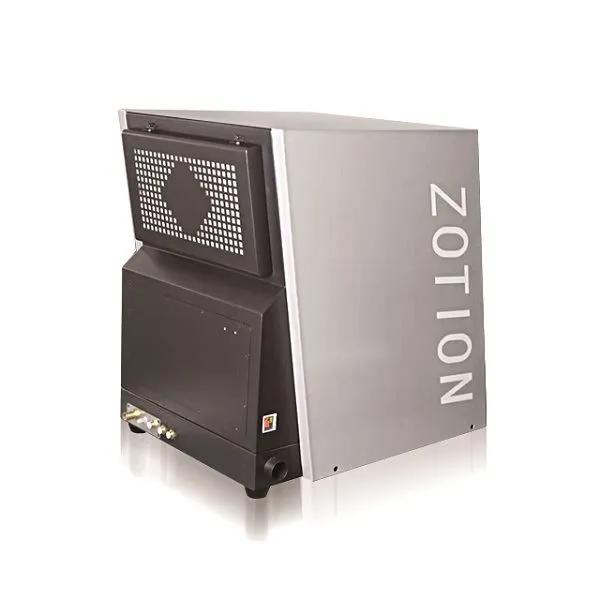

wet dental cad cam machine 4 axis 5 axis Dental Milling Machine







Tool magazine type	Automatic
Tool numbers	14
Tool size	Shank diameter 4*56 mm
Control code	NC code
Program interface	USB 2.0 ,100M network port
Power requirement	AC220v +-10%,50/60 Hz
Power consumption	650w
Working decibel	<45 decibels in standby:, < 70 decibels when running,The data was tested by UT353,the level of the noise varies when different materialis used
Net Weight	105 kg
Size	WLH 490mm*620mm*625mm



Cooling system: built-in wet cooling system
Control system: intelligent operating system, support for a variety of CAD/CAM software

Intelligent operating system:

Touch screen control friendly user interface, simple and easy-to-use operating system, support for multiple languages. (For example, more than 10 languages ​​such as English, German, French, Russian, etc.)







1. Multiple-Function Fixture for Different Materials

The machine is equipped with a versatile fixture system compatible with a wide range of dental materials, including zirconia, PMMA, wax blocks, and PEEK. The fixture structure can be adjusted according to different material sizes and shapes, allowing flexible switching between various machining tasks.

During high-speed 5-axis machining, the material is held securely and stably, minimizing vibration impact and ensuring continuous, high-precision processing performance.

2. Memory Function

Power-loss resume capability
During machining, the system continuously records real-time status, including tool position, toolpath, and key processing parameters. In the event of unexpected power failure, the system automatically saves the stopping point. Once power is restored, machining can resume from the exact interruption point without restarting, effectively reducing material waste and time loss.

Machining data logging
Each machining task is automatically recorded, including operational data and processing parameters. This allows users to review machining history, analyze process conditions, and optimize workflow when necessary.

Intelligent resume logic
When restarting, the system automatically evaluates the current machine status and performs necessary safety checks before resuming the original program, ensuring process consistency and reliability.

Reduced manual intervention
After recovery, there is no need to reset programs or re-establish work origins, simplifying operation and minimizing human intervention.

3. Automatic Calibration Function

Tool compensation system
The built-in detection system monitors tool wear conditions and performs real-time compensation during machining. This ensures stable machining accuracy and reduces deviations caused by tool degradation.

Automatic tool setting and axis calibration
After startup or tool replacement, the system automatically performs axis alignment and calibration. All axes remain synchronized during 5-axis movement, ensuring precise machining of complex geometries.

Automatic homing function
Before each machining cycle, the system automatically returns to the reference zero position, ensuring a consistent baseline for every job and eliminating repeated positioning errors.

System self-check function
The machine performs automatic diagnostics on key components such as motors, spindle, and sensors. If any abnormal condition is detected, the system will issue alerts and adjust operational status to maintain stable machining performance.



Zotion is a leading dental equipment manufacturer, focusing on the research and development, production and sales of dental CAD/CAM systems and related equipment. The company is committed to providing innovative solutions for the global dental market, helping dental professionals improve work efficiency and treatment effects.

Factory scale
We have advanced production facilities covering an area of ​​more than 2,500 square meters. The factory is equipped with the most advanced manufacturing equipment, including precision machining centers, laser cutting machines and automated assembly lines. We also have a dedicated R&D center and quality control laboratory to ensure the high quality and reliability of each product.
Production capacity
Our factory produces more than 4,000 dental milling machines annually to meet the needs of the global market. At the same time, we support customized production to meet the special needs of different customers.

Quality control
Zotion follows strict ISO 9001 and CE certification standards, and conducts strict quality control in every link from design and development to production and manufacturing. Our quality inspection team uses the most advanced testing equipment to conduct comprehensive performance and safety tests on products.

R&D innovation
The company has a R&D team composed of senior engineers and technical experts, constantly promoting technological innovation, and investing a lot of resources in R&D every year to ensure that the products are always at the forefront of the industry.
Customer Service
We are committed to providing excellent customer service, including:

Technical Support: Provide comprehensive technical support to help customers solve any problems during use.
Training Service: Provide product operation and maintenance training to ensure that customers can use the equipment efficiently.
After-sales Service: Quickly respond to customer needs, provide repair and maintenance services, and ensure long-term stable operation of the equipment.







1. Evaluation of Chinese customers
Customer background: A leading dental technology company focusing on the design and processing of digital dental products.
Evaluation content:
"Zotion's 5-axis wet milling machine is particularly outstanding in the processing accuracy of titanium alloy bases. The equipment we used before was prone to errors in titanium alloy processing, but Zotion's machine can ensure that the tolerance of each component is at the 2-micron level, which is suitable for high-precision dental product production. The automatic calibration function also reduces the complexity of manual operation and improves our production efficiency."
Overall rating: 4.8/5. Customers believe that the stability and automation functions of the equipment are the biggest highlights.

2. Evaluation of American customers
Customer background: A dental laboratory located in California, USA.
Evaluation content: "We are impressed by the automatic memory function of Zotion equipment. When the equipment suddenly stops due to power problems, we can rely on the machine's memory function to resume production from the stop point, avoiding waste of materials and time. The operation interface of the equipment is also very intuitive, and it is easy for team members to get started."
Overall rating: 4.7/5.

3. Evaluation from German customers
Customer background: A dental technology company located in Germany.
Evaluation content: "The versatile fixture allows us to easily handle different types of materials. The machine's automatic calibration is very accurate, and the details that we previously needed to adjust manually can now be done automatically, reducing errors and time-consuming manual operations."
Overall rating: 4.9/5. Customers praised the high precision and stability of the equipment, especially its performance in high-frequency operations.
4. Evaluation from Japanese customers
Customer background: A dental manufacturing company located in Tokyo.
Evaluation content: "We are very satisfied with Zotion's 5-axis wet mill, especially the automatic calibration function, which saves a lot of debugging time while ensuring high-precision processing. In addition, the machine's memory function is very practical. Even if there is a sudden power outage, the device can continue to work from where it stopped last time."
Overall rating: 4.8/5.

FAQ:



Q1: Can this machine handle different dental materials without frequent fixture changes?
A: Yes. The machine uses a multi-functional fixture system designed for zirconia, PMMA, wax, PEEK and other common dental materials. The clamping structure adapts to different block sizes and shapes, keeping materials stable during high-speed 5-axis milling and reducing repeated setup work.

Q2: Will material position shift during high-speed milling?
A: The fixture applies balanced pressure distribution during clamping. This helps keep the block stable even during long and complex toolpaths. It reduces vibration-related movement and supports consistent accuracy across batches.

Q3: What happens if the machine stops suddenly during processing?
A: The machine is equipped with a memory recovery system. It automatically records the cutting position and machining parameters in real time. If power is interrupted, the system can continue from the exact stopping point after restart without restarting the job.

Q4: Does power recovery affect milling accuracy?
A: No. After power restoration, the system checks the machining state before resuming. It keeps the original toolpath data and position reference, so the restoration continues with the same accuracy as before interruption.

Q5: Do I need to reset or reprogram the machine after a power outage?
A: No manual reprogramming is needed. The system automatically loads the previous job status. Operators only need to confirm and continue processing.

Q6: How does the automatic calibration work?
A: The machine performs automatic calibration at startup and after tool changes. It checks axis alignment and reference points, then adjusts system parameters to keep machining accuracy stable.

Q7: What about tool wear during long production runs?
A: The system monitors tool condition during operation. When wear is detected, it compensates automatically to maintain cutting accuracy and reduce manual adjustment frequency.

Q8: Is manual calibration required for daily use?
A: In normal operation, no manual calibration is required. The system completes alignment, zero point setting, and basic checks automatically before each job starts
