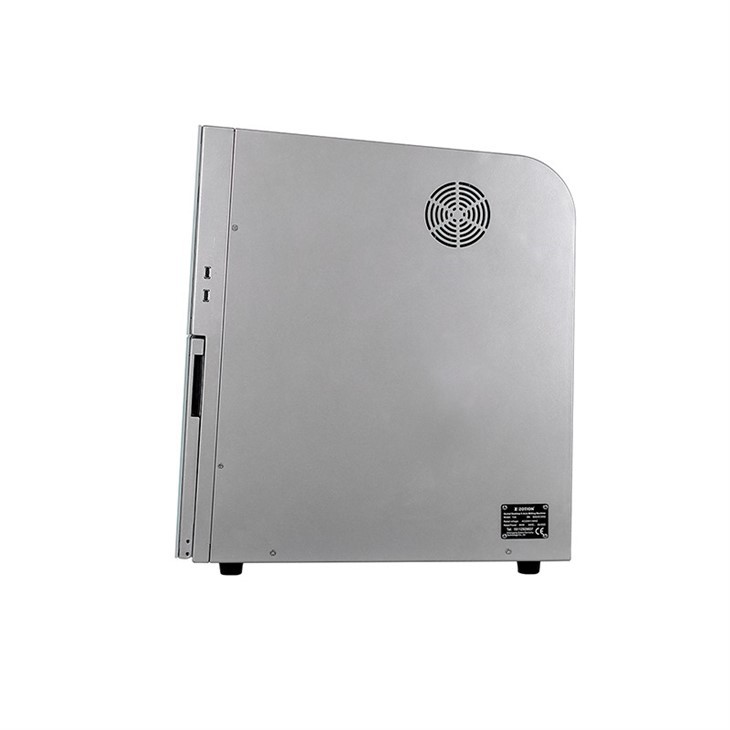

Dental Crown milling machine CAD CAM 5 axis Dental Milling Machine

Dental Crown CAD/CAM 5-Axis Milling Machine is used for the production of crowns, bridges, dentures, and other dental restorations. It supports milling zirconia blocks, PMMA, wax, and PEEK materials for both temporary and permanent restorations.

The machine uses dry milling technology with a spindle speed of up to 60,000 RPM, allowing fast cutting and stable machining accuracy during continuous operation. It is suitable for zirconia crown and bridge processing, PMMA temporary restorations, wax pattern milling, and PEEK applications.

A 5-axis linkage system supports multi-angle machining, reducing repositioning during complex restoration processing. Deep cavities, undercuts, and curved surfaces can be milled in one setup.

The machine uses an optimized blank holder structure that improves material usage during milling. Compared with conventional fixture designs, material consumption can be reduced by around 30%, lowering zirconia and PMMA costs during batch production.

The built-in breakpoint recovery function records machining progress in real time. If power interruption or unexpected shutdown occurs, the machine can continue from the previous processing position after restart, reducing remakes and material loss. This function is especially useful during long milling cycles or unattended overnight operation.
