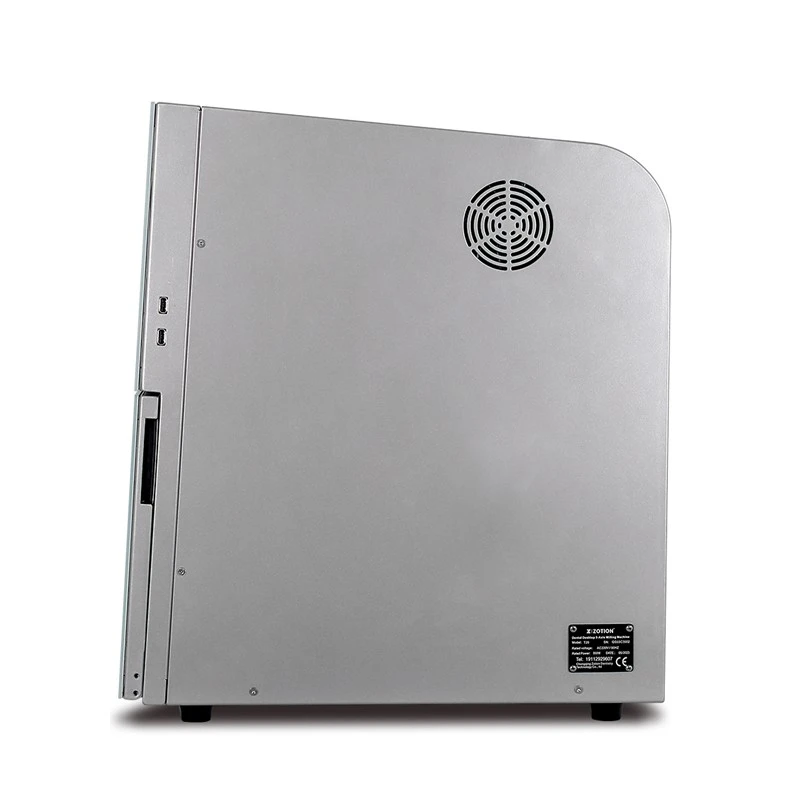

Compact Glass Ceramic cad cam 5 Axis dental Milling Machine



Compact Glass Ceramic cad cam 5 Axis dental Milling Machine can mill glass ceramics and pre-milled abutments, providing high-precision and efficient milling solutions.

Features:

High-precision milling (rotation range: A-axis: 360°, B-axis: +25° to 135°):

Precise machining of complex shapes using 5-axis linkage technology ensures high-quality restorations.

Wet machining:

Equipped with a built-in cooling system to maintain the optimal working temperature of tools and materials, reducing the risk of thermal stress and material cracking.

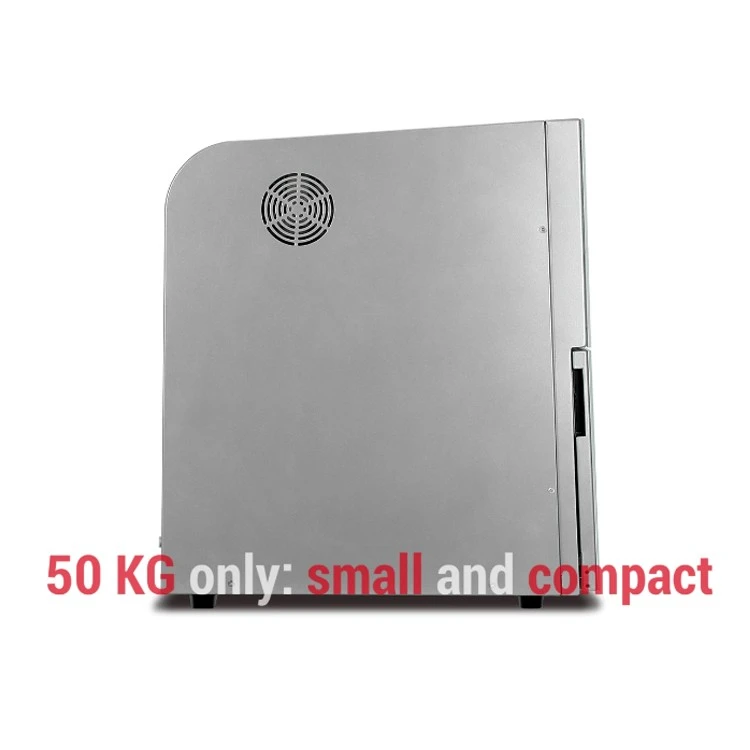

Compact design:

The space-saving design (420 x 500 x 580 mm) is suitable for various laboratory environments and is easy to move.

User-friendly interface:

The intuitive operating interface simplifies setup and monitoring, making it accessible to users of different skill levels.

Multi-material compatibility:

Supports milling of a variety of materials, including PMMA, pre-milled abutments and glass ceramics, to meet various needs.

Efficient Production:

Fast milling capability reduces machining time and increases productivity (maximum spindle speed: 60,000 RPM).

Application scenarios: Widely used in dental restorations, including the production of crowns, bridges, and abutments.





products
Model	T20D
Axis	5
Milling mode	dry
Max spindle speed	60000 RPM/min
Spindle power	850w
Spindle cooling	Water cooling
Rotation range	A axis: 360° B axis：+25°-135°
Number of tool housed	12
Compatible compressed air	＞6pa(No oil and no water)
Input Voltage	max.850W,50-60Hz,220ACV









High-precision mechanical components: The servo motor, drive system and linear guide system inside the equipment are all precisely designed to ensure the precision control of each axis.
Precision CNC control system: The movement of each axis is precisely controlled by the CNC control system to ensure position accuracy and repeatability.
High-performance spindle: The combination of high-speed spindle and precision cutting tools ensures high precision and high finish during processing.









Zotion is an innovative enterprise focusing on the manufacture of dental equipment and dental consumables. With years of technical accumulation and R&D capabilities, Zotion has become one of the leading equipment manufacturers in the industry. The equipment we provide includes but is not limited to dental five-axis wet milling machines, dental CNC milling machines, dental CAD/CAM systems, etc., which are widely used in dental restorations, dental material processing and the production of personalized customized restorations.

Advantages of Zotion:
Independent R&D and technological innovation

Zotion has an experienced R&D team that focuses on technological innovation in the field of dental equipment. Through continuous technological investment and independent R&D, we are able to continuously launch advanced equipment that meets market demand.

Our equipment has significant advantages in processing accuracy, repeatability, and processing stability. Zotion's equipment uses high-precision servo motors, precision guides, and high-performance spindles, and each processing process can maintain the highest processing accuracy. With our equipment, customers can achieve the production of precision dental restorations, such as pre-milled abutments, tooth restorations, etc.

Customized services

Zotion provides highly customized services and provides personalized equipment solutions based on the specific needs of customers. Appearance is also acceptable.

Quality Control and International Certification

Zotion has passed ISO 9001, CE and other certifications, and our products meet international quality standards. We adopt a strict quality management system, and strictly control every link from raw material procurement to production and testing to ensure that each device has excellent quality and reliability.

Perfect after-sales service system

We provide customers with a full range of after-sales services, including equipment installation and commissioning, operation training, regular maintenance, etc. Zotion's technical support team is always available to answer customers' questions to ensure the long-term stable operation of the equipment.

Zotion's products are exported to Europe, America, Asia and other regions, and have won wide recognition in the international market.
