Dental Zirconia Milling Machine cad cam 5 axis zirconia milling machine



Model	T20D
Axis	5
Milling mode	Dry
Milling type	Crown/coping,Bridge,
Max spindle speed	60000 RPM/min
Spindle power	500w
Spindle cooling	Air cooling

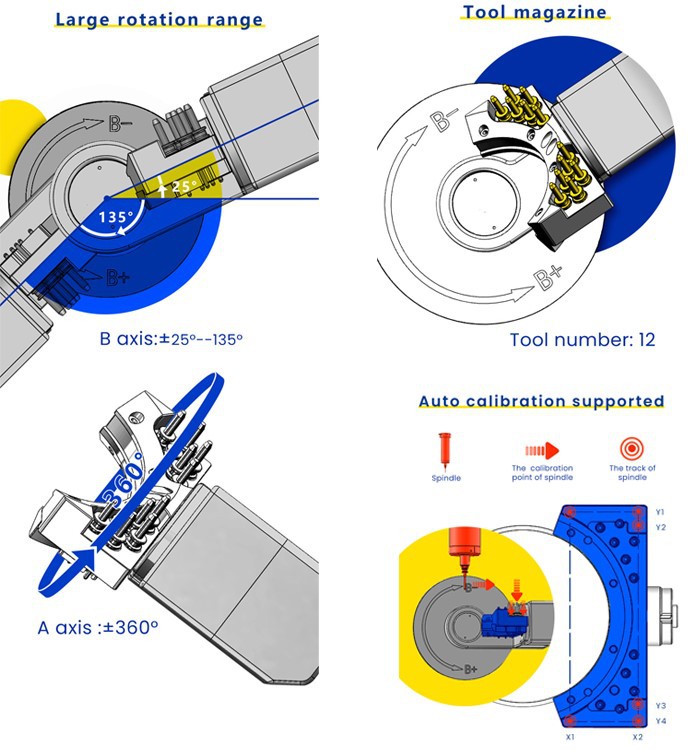

Rotation range	Aaxis: ± 360° Baxis：+25°-135°
Number of tool housed	12
Compatible compressed air	＞6pa(No oil and no water)
Loadable workpiece shape	Disk diameter: 98mm
Input Voltage	AC220V ±10%,50/60HZ
External dimensions	420*540*580mm
Weight	50kg only
Control command set	NC code
Brand	ZOTION
Factory Add	Chongqing,China







1. Tool Magazine – 12 Tools

The machine comes with a built-in 12-tool automatic tool magazine, allowing tools to be switched automatically during the milling process.

This reduces manual intervention and shortens waiting time between tool changes, helping improve overall production flow, especially in batch processing.

2. Automatic Calibration System

The machine supports automatic calibration at startup and after tool changes.

Each time the system starts, it adjusts positioning automatically to maintain consistent machining accuracy.

This reduces setup mistakes caused by manual operation and keeps daily workflow more stable and efficient, especially for operators with different skill levels.

3. Power-Off Memory Function

If power is interrupted during machining, the system records the last working position and process status.

After power is restored, the machine continues from the exact stopping point instead of restarting the job.

This helps avoid material loss, reduces repeated machining, and keeps production running more reliably in environments with unstable power supply.

4. 90° Vertical Milling

The 90° vertical milling design allows stable cutting for detailed structures and precise contours.

It performs well in zirconia restorations that require clear edges and accurate geometry, especially for crowns and bridge structures with complex surface shapes.

This structure helps maintain consistency in form and reduces deviation during fine-detail machining.

*In addition to the above advantages, there are also!





If you're interested in this dental milling machine and would like to know its price and additional details, feel free to contact us!

The factory has a highly skilled engineering and R&D team dedicated to continuous innovation and development of cutting-edge dental equipment. With over 15 years of expertise in precision machining and dental solutions, the factory focuses on producing high-performance machines that meet international standards.

The factory is equipped with modern CNC machine tools and automated assembly lines to ensure efficient production while minimizing errors. Rigorous testing at each stage guarantees the reliability and effectiveness of the dental laboratory.

The factory provides strong after-sales support and customer service, providing comprehensive training and technical assistance to customers worldwide.









FAQ：

Q1: What is the difference between a 12-tool magazine and a standard tool magazine?

A: The 12-tool magazine supports automatic tool changing during processing, eliminating the need for frequent manual tool replacement. It enables continuous machining processes such as roughing and finishing in a single workflow, significantly reducing machine downtime.

Q2: Does tool changing affect machining accuracy?

A: No. The system automatically detects tool conditions and performs calibration matching. After tool changes, machining positions and tool paths remain consistent, avoiding human error.

Q3: Does automatic calibration require manual operation each time?

A: No. The machine automatically performs calibration at startup or after tool changes. This reduces setup time and ensures consistent results across different operators.

Q4: Will inexperienced operators affect machining accuracy?

A: The impact is minimal. With automatic calibration and pre-set machining parameters, most processes are standardized. Operators mainly need to select the material and program.

Q5: Will a power outage cause material waste when restarting?

A: No. The power-loss resume function stores the last machining position and status. After recovery, the machine continues from the interrupted point without restarting or re-machining.

Q6: Is accuracy maintained after power recovery?

A: Yes. The system resumes from the original coordinates and tool path without altering the machining logic, ensuring consistent precision.

Q7: What is the purpose of 90° vertical machining?

A: It is mainly used to improve edge definition and complex structural accuracy, such as crown margins and bridge connectors. It reduces detail distortion and ensures more stable restoration geometry.

Q8: Will complex crowns or bridges cause machining deviations?

A: No. The 5-axis simultaneous movement combined with 90° vertical machining allows multi-angle cutting, reducing blind spots and improving stability for complex restorations.

Q9: Does the 12-tool system reduce tool lifespan due to frequent tool changes?

A: No. Tool usage is automatically assigned based on the machining path. This prevents overuse of a single tool and can actually help balance tool wear and extend overall tool life.
