5 axis cnc dental milling machine
5 axis cnc dental milling machine,which is a dry and high precision milling machine for dental lab and milling center. It can mill zirconia,wax,pmma,peek. 5 Axis Dry dental Cnc Milling Machine For CAD CAM Zirconia Discs uses high quality spindle and servo motor,which ensures the stability of the milling machine. It can accommodate milling materials with diameters of 98mm and 98.5mm and a maximum thickness of 80mm. The XYZ axis can reach speeds of up to 4000mm/min (Z axis) and 6000mm/min (XY axis), while the spindle speed range is 6000 to 60,000 revolutions per minute. The A axis offers full rotation (+/- 360°) and the B axis has a range of 25° to 115°. The machine features an automatic milling drill mount with a drill of 4mm diameter and 56mm length. It is controlled via NC code and has USB 2.0 and 100M internet access for easy data transfer. The machine is powered by a 220V ±10%, 50/60 Hz power supply, consumes very little electricity, and has a noise level of less than 45 dBA in standby mode and less than 70 dBA during milling (depending on the material). Installation is simple and requires indoor installation at an altitude of less than 2000 meters and a temperature between 5-40°C. The machine has compact dimensions (470 x 560 x 650 mm) and weighs 90 kg.
- Product Introduction
Products Description
The 5-axis CNC dental milling machine is a high-precision digital processing device designed for dental laboratories and clinics. It is mainly used for machining a wide range of dental materials, including zirconia, PMMA, and wax.
Based on advanced 5-axis simultaneous milling technology, the machine can automatically produce various dental restorations such as crowns, bridges, veneers, inlays, onlays, implant abutments, and long-span frameworks - delivering high automation, high precision, and high efficiency.
Products parameter
|
The type of milling burs
|
Auto milling burs installation
|
|
The amount of milling burs
|
DiameterΦ 4*56mm
|
|
Controlling instruction set
|
NC code
|
|
Interface
|
USB 2.0.100M Internet access
|
|
Voltage
|
220V +-10%,50/60 Hertz
|
|
Power Consumption
|
Noise-pollution level
|
|
Noise-Pollution level
|
Standby model : under 45 decibel milling model: under 70 decibel The data was tested by UT353, the level of the noise varies when different material is used.
|
|
Install conditions
|
Indoor installation altitude below 2000m,temperature :5-40 degree Celsius
|
|
The size of the machine
|
470*560*650mm
|
|
Weight
|
90kg
|

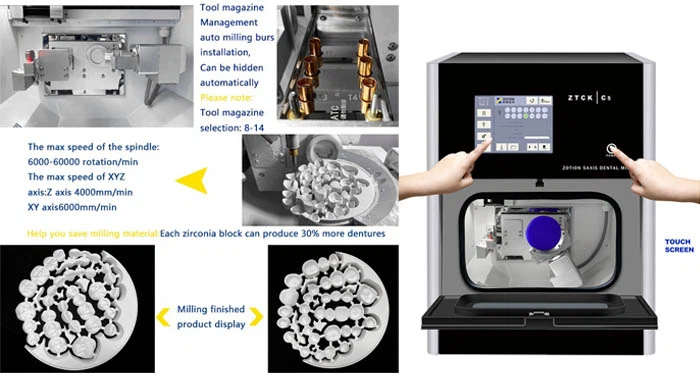

Products Details
Products advantages
1. True 5-Axis Simultaneous Machining – Wide Application Range
Equipped with an A-axis (±360° rotation) and a large-angle B-axis, the machine enables full-angle, multi-directional milling.
Complex structures such as undercuts, long bridges, and customized abutments can be completed in a single clamping without repositioning - ensuring higher precision, broader applications, and stronger processing capability.
2. High Precision and Stability
Ultra-high machining accuracy up to ±0.01 mm
Excellent edge integrity with low chipping rate
Heavy-duty machine body ensures low vibration during operation
This results in better fitting restorations, higher success rates, less adjustment, minimal remakes, and consistent product quality.
3. Automatic Tool Changer (ATC) System
Tool magazine capacity: 8–14 tools
Automatic switching between roughing, finishing, and polishing tools
Enclosed tool magazine design prevents dust contamination
This ensures fully automatic, uninterrupted operation, higher efficiency, longer tool life, and a cleaner working environment.
4. Automatic Calibration – No Manual Adjustment Required
The system automatically detects and compensates for axis positions and tool wear.
No manual calibration is required after startup, which saves setup time, reduces human error, and ensures stable machining performance.
5. High Efficiency and Time Saving
Fast milling speed with short single-crown processing time
Supports continuous unattended production
Optimized milling paths significantly reduce machining time
This greatly increases lab productivity, shortens delivery time, and reduces labor costs.
6. Unique Material-Saving Design
100° special clamping ring reduces material waste
Optimized tool paths minimize leftover material
High material utilization rate
Up to 30% material cost saving, especially for high-value materials such as zirconia and PEEK.
7. Remote Control and Intelligent Operation
Supports remote monitoring and operation
User-friendly touchscreen with multi-language system
Built-in milling programs for various materials
Easy to learn, simple to manage, and allows operators to handle multiple tasks simultaneously.
8. Stable Structure and Long Service Life
Strong and rigid machine body design
High-quality core components with excellent durability
Stable long-term operation under heavy load
Low failure rate, low maintenance cost, and long service life.

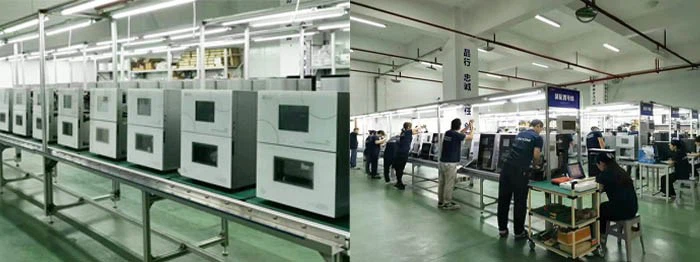

factory
