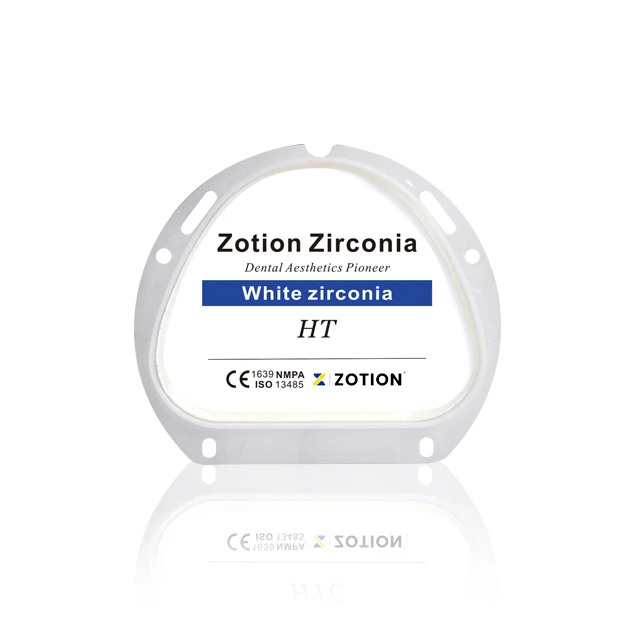

New White Zirconia Blank HT dental zirconia disc
- Product Introduction
Products Description
Our factory-produced HT white zirconia disc belongs to 3Y-TZP yttrium stabilized zirconia raw material. All blanks adopt high-purity zirconia powder with total oxide content of ZrO₂+HfO₂+Y₂O₃ above 99%, yttrium oxide proportion controlled between 4.5%~6.0%, impurity aluminium oxide kept below 0.5% to cut intraoral irritation risk after long-term wearing.
Core fixed technical parameters
Biaxial flexural strength after full sintering: 1200–1300MPa, Vickers hardness HV10 hits 1200HV and above, fracture toughness ranges 3.5~5.0MPa·m¹ᐟ², stands frequent heavy occlusal bite from bruxism patients
1mm thickness sample light transmittance sits at 40%~41%, balances aesthetic penetration and masking capacity for dark residual tooth stump, post-core abutment and titanium implant base
Pre-sinter density 3.1±0.5g/cm³, finished sinter density stabilizes at 6.08±0.01g/cm³, linear sinter shrinkage locked in 19%~22%, technicians input fixed shrinkage coefficient into CAM software without repeated size debugging
Recommended standard sinter temperature:1530℃; short-cycle fast sinter supports 90min firing for 4-unit conventional bridges, cuts lab daily sinter waiting time
Post-sinter chemical solubility＜100μg/cm², meets ISO6872 dental bioceramic standard, no gingival black stain or allergic feedback in clinical long-term follow-up
Complete size & system specification
Available outer diameter options: Open system 98mm, Zirkonzahn exclusive 95mm, Amann Girrbach AG 71mm three mainstream specifications.
Thickness inventory covers 10mm/12mm/14mm/16mm/18mm/20mm/22mm/25mm, custom special thickness available on bulk order.
Discs match Roland, VHF, Sirona, Imes-icore mainstream dry/wet milling equipment, no extra fixture modification during replacement.
Lab practical selling highlights
Uniform internal crystal grain distribution after isostatic pressing, pre-sinter blank gains stable edge holding property. Milling with 1.0~2.0mm carbide bur at 20000–40000RPM rarely sees edge collapse or tiny crack, lowers finished piece scrap rate during bulk processing.
Pure white blank without pre-stained pigment, technicians dip or brush compatible zirconia stain freely to match full VITA16 shade system, flexible for personalized single crown and multi-unit shade gradient demand.
Wide clinical application scope: full contour posterior single crown, 2~6unit fixed bridge framework, implant custom abutment, inlay & onlay repair. One disc can split multiple small restorations to improve raw material utilization rate.
Stable batch consistency from raw powder mixing to pressing and calcination, same parameter between different production lots, labs avoid abnormal fitting gap caused by inconsistent material shrinkage in successive orders. We supply free sample test before formal bulk purchase.
