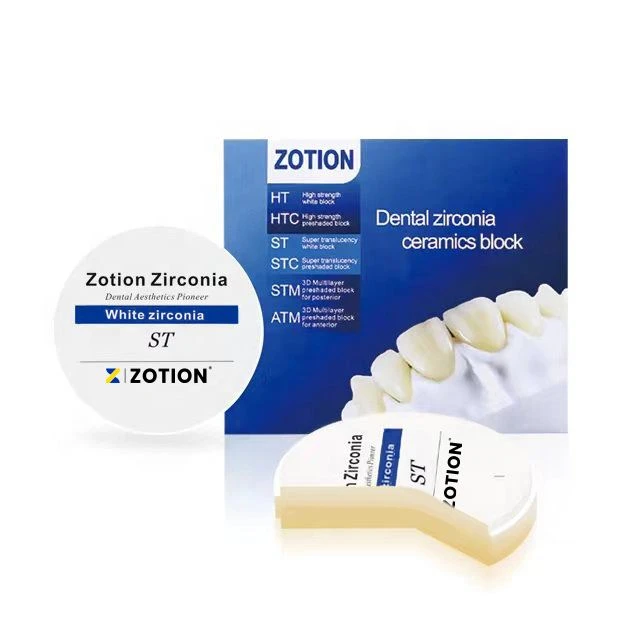

Multilayer Zirconia block
Zotion has many types of zirconia,including white zirconia block(HT:＞1200mpa Translucency :41%,ST:＞900mpa Translucency:43%),preshaded zirconia block(STC：＞900mpa Translucency:43%,HTC:＞1200mpa Translucency:41%),3D multilayer zirconia block(STM:800mpa-1100mpa Translucency:43%-49%,ATM:600mpa-900mpa Translucency:46%-55%),3D multilayer preshade zirconia block(TSTM:800mpa-1100mpa Translucency:43%-49%,TATM:600mpa-900mpa Translucency:46%-55%) Zotion dental zirconia block has high strength, good translucency and natural color.And Zotion zirconia has CE and ISO certificates ,it has been sold to more than 120 countries around the world .
- Product Introduction
Products Description
Available in 98mm, 95mm and 71mm sizes, Multilayer Zirconia blocks offer superior clarity and aesthetics compared to other colored zirconia materials without compromising strength. These zirconia blocks are available in 18 shades that match the VITA Classic A1-D4 shade guide, plus two bleached white shades. With a flexural strength range of 800 MPa to 1100 MPa, the material is ideal for a variety of dental applications such as monolithic crowns, multi-unit bridges, Maryland bridges, full-contour crowns, inlays/onlays and implant abutments. It is manufactured using CAD/CAM milling, is available in high clarity and is available with conventional or self-adhesive cement bonding options. The blocks are designed for excellent shade grading, resulting in natural-looking, long-lasting restorations.
| Type | Code | Translucency | Flexural strength | Color |
| White zirconia block | HT | 41% | ＞1200Mpa | white |
| ST | 43% | ＞900Mpa | ||
| Monolayer preshaded zirconia block | HTC | 41% | ＞1200Mpa | A1.A2.A3 |
| STC | 43% | ＞900Mpa | A1.A2.A3.A3.5 A4. B1.B2.B3.B4 C1.C2.C3.C4 D2.D3.D4 BL1.BL2.BL3 BL4 | |
| 3D Multilayer preshaded zirconia block | STM | ≥Top-Bottom≥49%-≥43% | Top-Bottom ≥800Mpa-≥1100Mpa | |
| ATM | Top-Bottom≥55%-≥46% | Top-Bottom ≥600Mpa-≥900Mpa | ||
| 3D multilayer preshade zirconia block(made of Tosoh zirconia powder) | TSTM | Top-Bottom≥43%-≥49% | Top-Bottom ≥800Mpa-≥1100Mpa | |
| TATM | Top-Bottom≥46%-≥55% | Top-Bottom ≥600Mpa-≥900Mpa |
1. Excellent aesthetic effect
Natural gradient color:
The multi-layer structure makes the color tone and transparency of each layer precisely designed to imitate the gradient effect from enamel to dentin in natural teeth, reducing additional dyeing or lamination processes, making the restoration look natural and realistic.
2. Excellent mechanical properties
High strength and toughness:
By precisely controlling the microstructure between layers, the multi-layer zirconia block not only has excellent bending strength, but also maintains high fracture toughness to ensure long-term stable use.
Balanced physical properties:
The hierarchical structure not only meets aesthetic needs, but also optimizes the overall mechanical properties, making the material stable and reliable in both processing and clinical applications.
3. Efficient processing adaptability
Pre-sintered state:
The material is usually provided in a pre-sintered state, which is convenient for efficient processing by CAD/CAM systems. During the processing, it can not only ensure fineness but also shorten the subsequent sintering cycle.
4. Accurate color and layer control
Highly consistent color distribution:
Made with precision technology, the color, transparency and thickness of each layer are strictly controlled to ensure the stable performance of the finished product in color and optical effects, meeting the needs of high-end aesthetic restorations.
5. Wide range of clinical applications
Applicable to various types of restorations:
Multi-layer zirconia blocks are not only suitable for conventional restorations such as single crowns and bridges, but can also be used for complex full-mouth restorations to meet the aesthetic and functional requirements of different patients.
Bionic restoration:
By simulating the structure and color of natural teeth, the final restoration is closer to natural teeth in appearance, transparency and strength, improving patient satisfaction.
