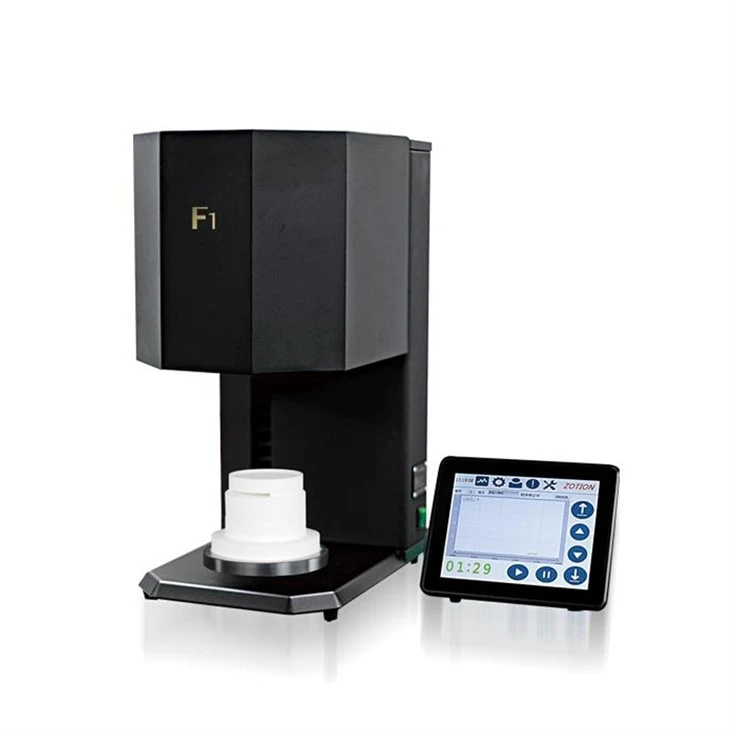

25 Minutes Glass Ceramics Zirconia Fast Sintering Furnace



The 25 Minutes Glass Ceramics Zirconia Fast Sintering Furnace offers fast and precise sintering, taking only one hour to complete the entire process (including heating, holding and cooling), and can sinter up to 10 crowns at a time. It features a durable thermal element that heats evenly, minimizing the risk of incomplete sintering or inaccurate color. The furnace is equipped with a PID intelligent temperature control system with a temperature deviation of only ±1°C, ensuring high accuracy. It is able to store up to 40 programs and has a user-friendly touchscreen interface for simplified operation and setup. The furnace supports a maximum temperature of 1650°C, a heating rate of up to 150°C/min, a capacity of 1 liter, and can accommodate up to 40 units on the sintering tray. Rated at 220V and 2500W, the furnace provides efficient and reliable performance.





Product model	F1
Rated voltage	AC:220;50/60HZ
maximum temperature	1650
Furnace volume	1 liter
Furnace size	42*30*60cm
Furnace weight	35kg
Temp Accuracy	±1℃
Temperature Control	Touch Screen Control System
Facroty ADD	Chongqing,China
OEM	Support
Note:More about dental sintering furnace details welcome to contact us!









I. Product Performance Parameters
Maximum Sintering Temperature and Temperature Control Accuracy
The sintering furnace's maximum sintering temperature can reach 1650°C, with a temperature control accuracy of ±1°C.
Zirconium oxide's physical properties (such as strength, density, and hardness) vary significantly when sintered within different precise temperature ranges. According to reports from authoritative dental materials research institutions, temperature control within ±1°C ensures a yield of over 95% for zirconia restorations. Compared to equipment with less precise temperature control, this significantly reduces product scrap caused by temperature deviations.
Heating Rate
In mass production, rapid heating can significantly shorten the production cycle for individual batches. For example, a medium-sized dental restoration fabricator using a standard heating rate furnace might only be able to sinter three to four batches per day. However, our fast-heating furnace, due to the reduced heating time, can complete five to six batches per day. This significantly improves production efficiency, enables faster delivery to downstream customers, and enhances market competitiveness. Warranty Period and After-Sales Service
Specific Description: Provide a clear warranty period of one year and a comprehensive after-sales service system, including a professional after-sales team that responds within 24 hours of receiving a fault report and offers a variety of service options, including on-site repairs and remote technical support.
II. Operational Convenience
User Interface and Intelligence
The user interface is simple and intuitive, featuring a large touchscreen and a fully Chinese (or multilingual, depending on the target market) menu. It features an intelligent program preset function, allowing customers to select preset sintering programs based on different zirconia materials and restoration types with a single click, or edit and save customized sintering process parameters.
The easy-to-understand user interface reduces the learning curve for operators, allowing both experienced technicians and new employees to quickly master the system. The intelligent program preset function significantly improves production standardization and reduces human error. According to feedback from dental laboratories that have used similar intelligent operation equipment, the use of intelligent program presets has reduced the product rejection rate due to incorrect parameter settings from approximately 10% to less than 3%, improving production efficiency and product quality.
