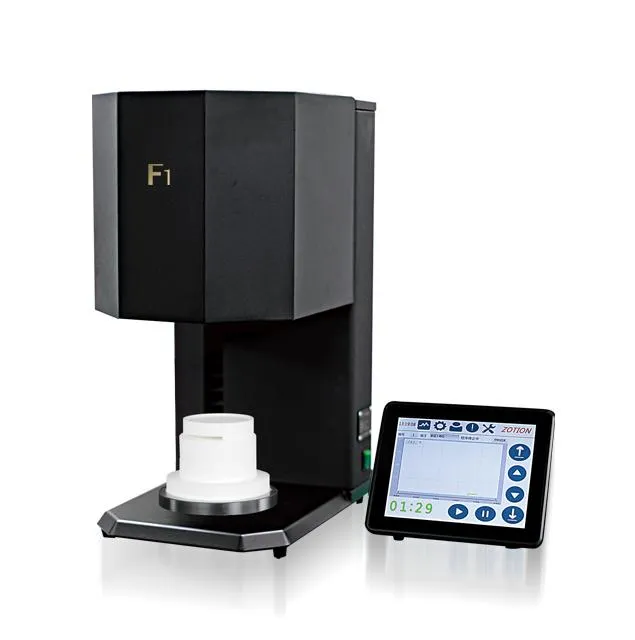

zirconia Fast slow Sintering furnace Dental
Fast slow Sintering furnace Dental, it only takes 25 minutes to complete the sintering process, provides stable high temperature control, makes the sintering process uniform and high quality results (maximum temperature can reach 1650°C), touch screen control, easy to operate. The furnace volume is 1 liter, and 40 units of teeth can be put into the sintering tray, temperature accuracy: +1°C
- Product Introduction
Products Description
Zirconia Fast Sintering Furnace Dental Main Features:
1. Dual-mode sintering (fast/slow sintering mode)
Technical implementation: zirconia Fast Slow Sintering Furnace Dental has a built-in intelligent program switching function. Users can select the mode according to the material type (such as high-transmittance zirconia, multi-layer gradient zirconia) or process requirements (such as pre-sintering, final sintering).
Reflection scenario:
Fast mode: For standard zirconia materials, the temperature is accelerated at 150°C/minute, shortening the total sintering time to 1-2 hours (the traditional mode takes 8-10 hours), which is suitable for the clinic's rapid restoration needs.
Slow mode: For materials that are prone to cracking or have complex structures (such as ultra-thin restorations), a gradient temperature increase (such as 20-50°C/minute) is used to avoid thermal stress concentration and ensure the density and strength of the finished product.
2. Fast heating capability (150°C/minute, up to 1650°C)
Technical support: High-power silicon-molybdenum rod heating elements are used, combined with an efficient thermal insulation layer (ceramic fiber) to achieve rapid heating and high-temperature stability.
Efficiency improvement:
Traditional equipment takes 2 hours to heat up to 1500°C, while zirconia Fast Slow Sintering Furnace Dental can complete it within 10 minutes, shortening the entire cycle by more than 70%.
3. 1-liter furnace volume and 40-tooth position design
Space optimization:
1-liter volume: The compact design saves laboratory space while meeting the requirements of sintering 40 crowns or 10-15 multi-unit bridges (such as three-unit bridges) at a time, suitable for small and medium-sized clinics.
Humanized interface:
20 preset programs: Users can select with one click without manually entering the temperature curve.
4. PID intelligent temperature control system (±1°C accuracy)
Control principle:
PID algorithm: Real-time collection of multi-point thermocouple data, dynamic adjustment of heating power, elimination of overshoot, and ensuring that the furnace temperature difference is ≤1°C.
Uniform temperature design: The furnace adopts a 3D surround heating layout, with an airflow circulation system (such as a forced convection fan) to avoid cold areas/hot spots.
Quality assurance:
When the temperature fluctuation is less than 1%, the shrinkage consistency of zirconia reaches 99.5% (about 95% for traditional equipment).
5. Touch screen operation interface
Real-time monitoring: display remaining time, energy consumption data, fault alarm
User experience:
Multi-language interface (Chinese/English/Spanish), lowering the operation threshold.
Products Details
Products advantages
factory
Cover Area
years experience
Exported Countries
Customer Services
Since its establishment in 2009, Chongqing Zotion Dentistry Technology Co., Ltd. has focused on the research and development, production and sales of dental products and has developed into an important enterprise in the industry. In addition to the advantages mentioned above, the following are the company's other six advantages:
1. Professional R&D team: Zotion has a R&D team composed of many senior professional and technical personnel, focusing on the research and development and production of multi-axis precision molding dental equipment and dental consumables to ensure the technological leadership of the products.
2. Rich industry experience: As a company established for more than 15 years, Zotion has accumulated rich experience in the field of dental equipment and consumables, and is able to deeply understand market demand, continuously innovate and optimize products.
3. Strong production capacity: Zotion's factory area is 2,500 square meters, with multiple production lines and advanced production equipment, strong annual production capacity, and can meet the production needs of large-scale orders.
4. International certification qualifications: Zotion has passed the ISO9001 quality management system certification, and its products have obtained international certifications such as CE and ISO13485. The product quality meets international standards and enhances market competitiveness.
5. Complete after-sales service system: Zotion has a professional after-sales service department that provides 24-hour online technical support. Problems encountered by customers during use can be solved in a timely manner to improve customer satisfaction.
6. Extensive market coverage: Zotion products have been exported to more than 120 countries and regions around the world, including the United States, Europe, the Middle East and Asia, with strong global business development capabilities and brand influence.
Products certificates
customer feedback
Delivery Time:
The Zotion Fast & Slow Sintering Furnace for Dental Lab typically has a delivery time of 7 to 15 business days after order confirmation, depending on the order quantity and specific customer requirements. For customized orders or large-volume purchases, the delivery time may vary slightly, but Zotion ensures efficient production and timely shipping to meet customer needs.
Product Packaging:
The Zotion Fast & Slow Sintering Furnace is carefully packaged to ensure safe transit. The packaging includes:
Sturdy Outer Box: A heavy-duty carton box reinforced with protective materials to prevent any external damage during shipping.
Protective Foam Inserts: To cushion the furnace and absorb shocks, minimizing the risk of impact damage.
Internal Padding: Foam or bubble wrap inside the box to secure the furnace in place and avoid movement during transport.
User Manual: A detailed instruction manual is included to guide customers through setup, operation, and maintenance.
