Dental Oven 1650 Degree Dental Zirconia Fast Sintering Furnace





The Zotion F2 dental sintering furnace is a high-efficiency, laboratory-grade sintering solution.
It features Fast Cool 2.0 technology and precise temperature control, enabling fast and stable sintering of zirconia and glass ceramic materials.





Model	F2
Chamber Size(mm)	100*200mm. 3layers sintering tray
Power supply	2500w
Max. temperature	1650
Continuous Working temperature	1600
Heating Rate	100℃/Min
Heating Element	Silicon Molybdenum Bar
Temperature Accuracy	±1°C
Temperature Controller	separate touch screen, 20-segment programmable Very easy and simple operation
Operation	Manual
Furnace's size	420*320*600mm(smaller and lighter)
Certification	CE
Brand	ZOTION
OEM	support
Warranty	One year limited manufacturer's warranty (Consumable parts such as heating elements are not covered, Life-time support by the warranty, please order
Gross Weight	50kg (With Package.) Wooden box and foam stuff will ensure this Dental Zirconia Sintering Furnace For Sale arrive fast and safely.





The F2 dental sintering furnace is equipped with a touchscreen control system for easier operation. The system includes 20 temperature programs to meet different sintering requirements.

The F2 features an advanced intelligent temperature control system with high temperature accuracy.(±1℃)







1.Traditional Furnace:
Sintering one zirconia crown takes 2–3 hours.
Technicians must stay until the cycle finishes, making it difficult to handle urgent cases.

Zotion F2:
With a rapid heating rate of 100°C/min and exclusive Fast Cool 2.0 technology, the full sintering cycle takes only 45 minutes.

Benefits:
Load before leaving work, and collect finished restorations the next morning.
Or run batch production during the day-daily capacity can be doubled, allowing labs to accept urgent orders anytime.

2.Traditional Furnace:
After sintering, restorations must be removed manually with heat-resistant gloves.
Slow handling may cause cracking, and frequent door opening leads to temperature fluctuations that affect accuracy.

Zotion F2:
Equipped with a fully automatic intelligent lifting system:

During heating: when temperature reaches 100°C and stabilizes for 2 minutes, the tray automatically rises into the high-temperature zone

After sintering: the tray automatically lowers to a safe unloading position

Benefits:
No manual handling required, eliminates burn risks, and maintains stable internal temperature.
Sintering success rate reaches up to 99%.

3.Traditional Furnace:
Uneven heating often leads to poor marginal fit, chipping, and material waste.

Zotion F2:
Uses MoSi₂ heating elements with a 1650°C high-temperature chamber and ±1°C precision control.

Benefits:
Uniform temperature distribution across all trays ensures excellent marginal fit and no chipping, reducing material waste by up to 30%.

4.Traditional Furnace:
Small chamber capacity-only a few units per cycle.
Multi-unit bridges require multiple batches, causing inconsistent color results.

Zotion F2:
Features an extra-large sintering chamber that can hold 3 layers of trays.

Benefits:
Process 30+ units (full crowns/bridges) in one cycle.
Multi-layer sintering ensures highly consistent and natural color results.







Factory Advantage:

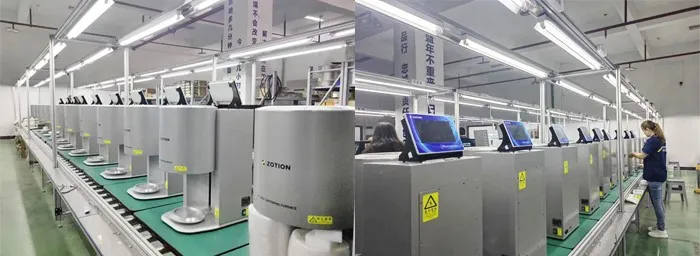

We produce dental material . CADCAM equipment , Sintering furnamce in China more than 15 years , So we can control the cost well.

We Supply professional after-sales service and be assured give you a guarantee.

We have strong research and development capabilities to meet your any needs













Packaging Details：

Export without fumigation standard wooden box

Wrap plastic film around each wooden box

The size of the wooden box is 55*42*83cm(L*W*H)

Delivery time:

Payment within 5 days after delivery or based on order quantity

If the order quantity is not very large we can send it to you by expresssuch as TNT DHL.UPS or EMS.

If the order is large. we will recommend that you use air or sea freiaht throuah a desianated freight forwarder.We can also provide agents for long-term cooperation.

FAQ

Q1. Are you a manufacturer company?
A: We are a OEM/ODM Professional manufacturing company in dentistry since 2009 with more than13 years experience
Q2. How long is your delivery time? If I want to customize the prodcuts, how long does it take?
A.1. If the products are in stock, it is 5-7 working days.
2. We can provide customized services for our customers. It takes about 15 days.
Q3.How can I order?
A: We will make quotation after you send us your purchase plan(including product name, model and quantity). If you agree with the quotation, please send us your company name, address and telephone for goods delivery. We will make proforma invoice and inform you the payment way. Goods delivery details will also be informed accordingly.
Q4. How is your company's product after-sales service?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have
professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
If you have problem in using, you can describe the problem details, we will ask technician to give your solution. Free spare partscan be provided if necessary.
Q5. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q6. How to pay?
A.T / T, Westerin Union ,RMB ,Paypal etc, it is recommended to use Alibaba Trade Guarantee.
Q7. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging
2. Express, air, sea freight according to customer requirements, find the most suitable way.
