fast dental sintering furnace
fast dental sintering furnace, it only takes 25 minutes to complete the sintering process, provides stable high temperature control, makes the sintering process uniform and high quality results (maximum temperature can reach 1650°C), touch screen control, easy to operate. The furnace volume is 1 liter, and 40 units of teeth can be put into the sintering tray, temperature accuracy: +1°C
- Product Introduction
Products Description
Products parameter
|
Technology Parameters |
|
|
Highest temperature |
1650℃ |
|
Rated power |
2500W |
|
Rated voltage |
220VAC±20% |
|
Fastest speed |
150℃/Min |
|
Temperature control precision |
±1℃ |
|
Size |
42*30*60cm |

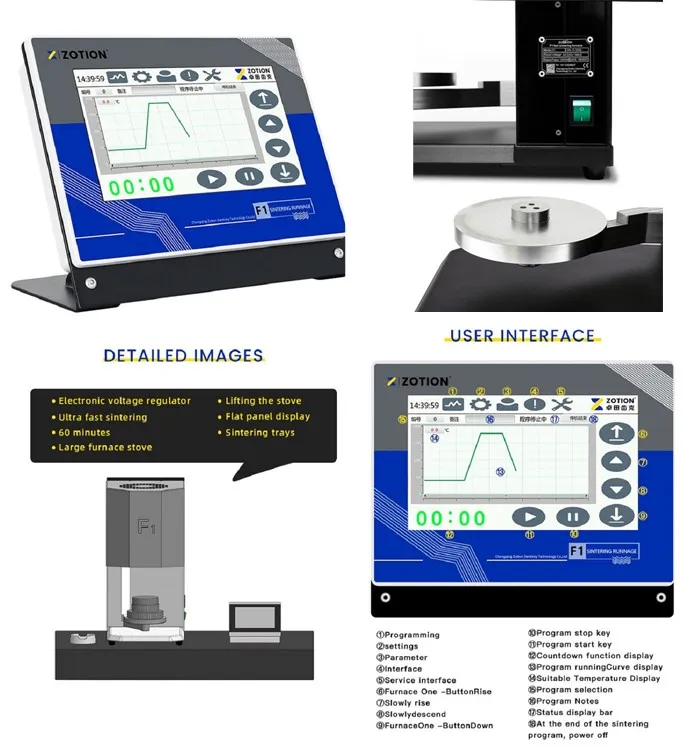

Products Details
Products advantages
High Efficiency & Energy Saving
Equipped with high-efficiency heating elements and a vacuum-formed ceramic fiber chamber, the furnace reduces heat loss by 40% compared to traditional sintering furnaces, while significantly shortening heating and holding times.
The sintering time for a single batch (12–16 zirconia crowns) is stably controlled within 25–30 minutes, which is much faster than the industry average of 60–80 minutes.
Precise Temperature Control & Uniform Heating
The quality of dental restorations-translucency, strength, and dimensional accuracy-largely depends on temperature control precision and chamber uniformity.
This furnace is equipped with a high-precision PID intelligent temperature control system and multi-point temperature sensors, ensuring accurate temperature regulation with a deviation of ≤ ±1°C and chamber temperature uniformity within ≤ 5°C.
Stable Quality & High Pass Rate
The pass rate of sintered zirconia restorations exceeds 99.5%, with dimensional accuracy controlled within ≤ 0.01 mm.
The restorations achieve a Vickers hardness of ≥1200 HV, fully meeting clinical requirements for dental applications.
factory
Cover Area
years experience
Exported Countries
Customer Services
Zotion is a company specializing in the production of high-end dental equipment and consumables. Founded in 2009, the company has over 15 years of production experience.
Our factory operates on the principle of "Quality First, Integrity-Based," consistently adhering to strict quality control standards. From selecting raw materials to packaging the finished products, every step of the process is carefully monitored to ensure the quality and stability of our products.
We also have a highly skilled and experienced production team, equipped with advanced manufacturing and testing equipment. Continuously developing new technologies and products, we base our operations on the ISO9001 quality management system. Technological innovation and ongoing quality improvement drive our commitment to sustainable development.
