Wet Dry full Automatic Dental Milling Machine Glass Ceramic 5 axis Milling Machine

Model code is T20D with full 5-axis linkage structure, two optional working modes: full dry milling and liquid cooling wet milling. The spindle supports peak rotating speed at 60000 RPM/min, rated spindle power upgrades to 850W with air cooling structure for continuous long-hour operation. A axis swings full ±360°, B axis ranges +25° to 135°, built-in 12-station integrated automatic tool magazine for tool storage. The machine matches dry/wet processing of glass ceramic, zirconia, PMMA, PEEK and wax blanks, fits standard 98mm diameter milling discs. Working environment requires oil-free & water-free compressed air over 6Pa, input power supports AC220V±10% under 50/60HZ power supply. Overall outer dimension measures 420540580mm, net weight keeps 50kg, equipment reads NC code for operational control, produced in zotion.





1. Unique design holder can save 30% more materials than other machines on market

2. Breakpoint resume function - increase 80% working efficiency, no need repeat milling

3. 850W spindle, big power milling fast and high precise

4. Integrated design of holder and automatic tool magazine to reduce space

*In addition to the above advantages, there are also!

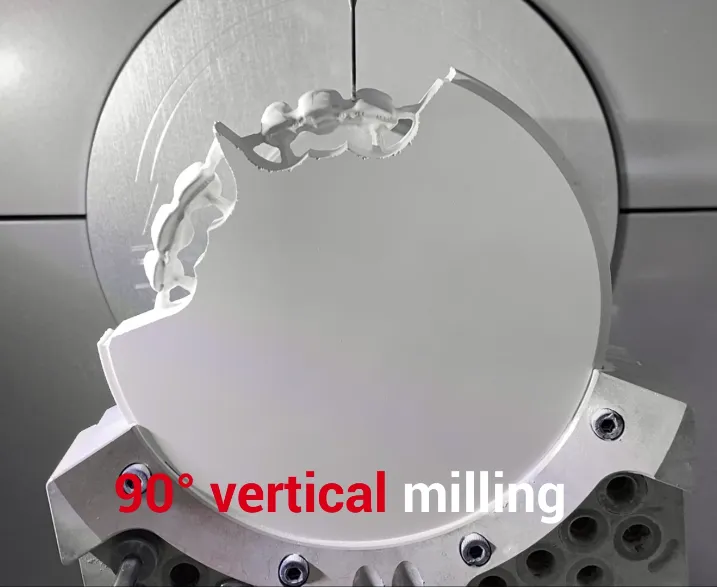

The machine adopts custom exclusive workpiece holder structure. Compared with ordinary clamps, it reduces edge clamping margin of the blank. 98mm standard disc can arrange more crown and bridge units in one processing round. Material waste decreases obviously in daily batch production, bringing 30% higher material utilization than ordinary dental milling machines.

The system supports breakpoint resume function. It automatically records real-time machining coordinates and cutting progress during operation. If power failure or unexpected stop happens, the machine continues cutting from the stopped position after restart. No need to reprocess the whole blank or redo clamping and positioning. It greatly cuts invalid operation time and raises overall lab productivity by 80%.

Equipped with 850W high-power air-cooled spindle and maximum 60000RPM rotating speed. The spindle outputs stable torque during high-hardness material cutting. When milling glass ceramic, zirconia and other fragile blanks, it maintains fast feeding speed without edge chipping, cracking or burrs. Finished restorations keep smooth surface and consistent marginal precision.

Fixture and tool magazine adopt integrated modular structure. Traditional independent tool holder occupation space is removed. Internal cabin layout is more reasonable. The whole machine keeps compact size of 420*540*580mm and 50kg lightweight body, fitting small lab desktop placement without occupying extra working area.

This machine supports free switching between dry milling and wet milling modes through the control panel. Dry mode applies air cooling system, suitable for zirconia, PEEK and wax block processing. Wet mode turns on internal circulating water pipeline. Cooling water washes cutting residues in real time and lowers tool temperature during glass ceramic milling. It reduces tool wear, clears milling dust and keeps clean cutting effect for delicate glass ceramic restorations.





If you're interested in this dental milling machine and would like to know its price and additional details, feel free to contact us!
