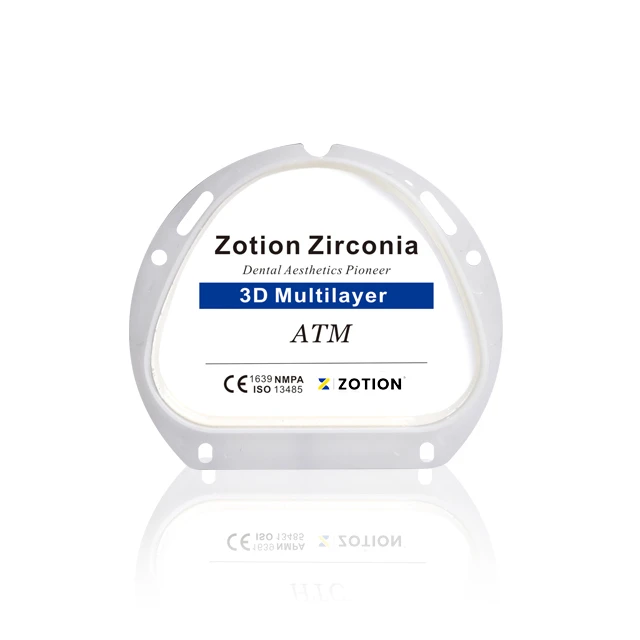

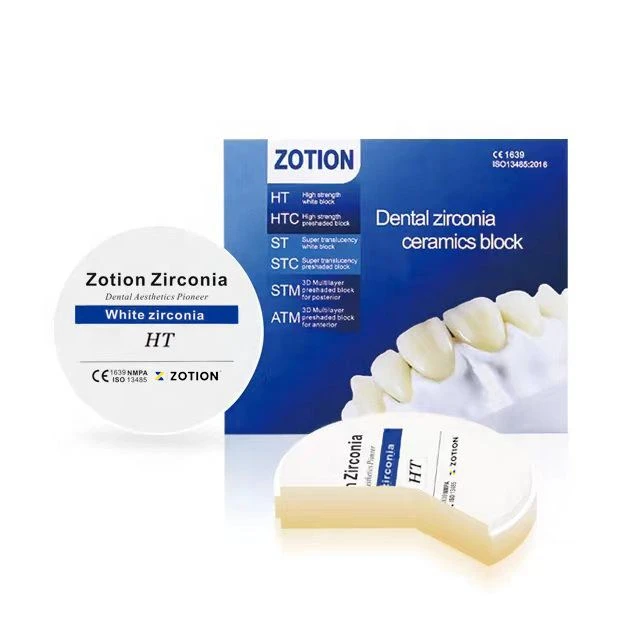

Dental Zirconia Disc



Dental Zirconia Disc uses high-purity zirconium oxide powder, which is strictly screened and then regulated by adding an appropriate amount of yttrium stabilizer to form a Y-TZP structure. The material has excellent bending strength and wear resistance. The advanced sintering process enables the grains to grow evenly, the product has high density and stable color, and the pre-sintered state is convenient for precision processing by the CAD/CAM system. The surface is smooth and has excellent transparency after processing. The product not only presents the aesthetic effect of natural tooth gradient, but also has excellent biocompatibility, which can effectively meet the high requirements of crowns, bridges and full-mouth restorations. Strict quality control throughout the process and multiple international certifications ensure that each batch of products meets international standards, providing stable and reliable high-performance all-ceramic restoration materials for dental clinics, and helping to achieve precise digital restorations.





Type	Code	Translucency	Flexural strength	Color
White zirconia block	HT	41%	＞1200Mpa	white
	ST	43%	＞900Mpa
Monolayer preshaded zirconia block	HTC	41%	＞1200Mpa	A1.A2.A3
	STC	43%	＞900Mpa	A1.A2.A3.A3.5 A4. B1.B2.B3.B4 C1.C2.C3.C4 D2.D3.D4 BL1.BL2.BL3 BL4
3D Multilayer preshaded zirconia block	STM	≥Top-Bottom≥49%-≥43%	Top-Bottom ≥800Mpa-≥1100Mpa
	ATM	Top-Bottom≥55%-≥46%	Top-Bottom ≥600Mpa-≥900Mpa
3D multilayer preshade zirconia block(made of Tosoh zirconia powder)	TSTM	Top-Bottom≥43%-≥49%	Top-Bottom ≥800Mpa-≥1100Mpa
	TATM	Top-Bottom≥46%-≥55%	Top-Bottom ≥600Mpa-≥900Mpa





Process flow of manufacturing Dental Zirconia Disc

Raw material preparation and mixing
Select high-purity zirconium oxide powder, add yttrium stabilizer and other functional additives in strict proportion, use high-speed mixing or ball milling equipment to achieve uniform dispersion, and form a stable Y-TZP powder system, laying a solid foundation for subsequent processes.

Molding process
The mixed powder is prepared into a shape-stable green body by isostatic pressing or injection molding technology. This step is carried out at low temperature to ensure that the green body has ideal density and dimensional stability.

Drying and degreasing
The green body is dried and degreased in a temperature-controlled environment to completely remove organic binders and prevent pores or other defects during high-temperature sintering.

Pre-sintering treatment
The degreased green body is pre-sintered at a lower temperature to promote the full decomposition of residual organic matter and improve the densification effect and dimensional stability during subsequent sintering.

High-temperature sintering
In a high-temperature furnace, a precise temperature control system is used to sinter according to a strict temperature curve (usually between 1500 and 1600°C). During the entire sintering process, heat is evenly transferred to ensure uniform growth of grains, complete densification, and excellent mechanical strength and stability.

Subsequent processing and quality inspection
The sintered green body needs to undergo post-processing processes such as fine cutting and polishing to achieve the ideal size and surface finish. Each product undergoes multiple tests (such as density, hardness, color uniformity, etc.) to ensure that it meets international dental restoration material standards.
