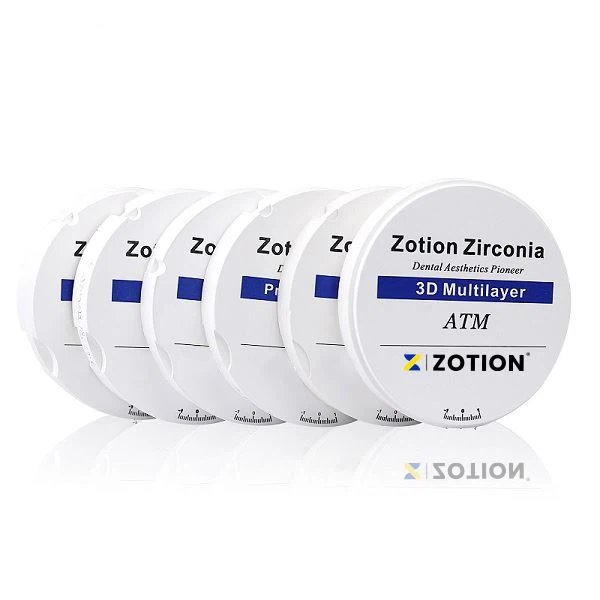

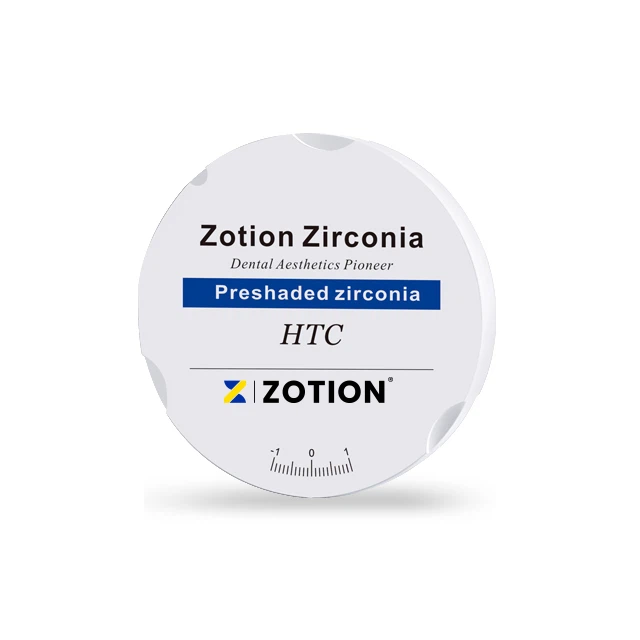

zirconia Dental Ceramic Zirconia disc



​zirconia Dental Ceramic Zirconia discs are an advanced material used in a wide range of dental restorations such as crowns, bridges, inlays and veneers. Made from high-purity zirconium dioxide, these discs offer exceptional strength, durability and aesthetics. ​
Key Features:

High Strength and Durability: Zirconia discs offer exceptional fracture resistance, with flexural strengths ranging from 600 MPa to over 1,350 MPa. This robust restoration withstands the functional demands of the oral environment. ​

Excellent Aesthetics: Engineered to mimic the translucency and color gradients of natural teeth.

Biocompatibility: Excellent biocompatibility minimizes the risk of adverse reactions in oral tissues.

Versatility: Zirconia Dental Ceramic Zirconia discs are compatible with a wide range of CAD/CAM systems and can be used with equipment from manufacturers such as Wieland, Sirona, Zirconzahn, Kavo, Lava, Amann Girrbach, Cercon and Dentmill.





zirconia Dental Ceramic The manufacturing process of Zirconia disc is a complex and delicate process involving multiple steps to ensure its excellent performance and high precision.
The following are the main steps of the process:

1. Raw material preparation: The production process begins with the selection of high-purity zirconium oxide powder, mixed with a small amount of other metal oxides (such as yttrium and cerium) to enhance the stability of the material and improve the strength after sintering.

2. Pressing and molding: The prepared zirconium oxide powder is pressed and molded by cold isostatic pressing (CIP) technology. The powder is tightly compacted under high pressure to form a preliminary disc-shaped blank.

3. Sintering process: The formed zirconia blank is sintered at high temperature to make its microstructure more dense and enhance its mechanical strength and wear resistance. The sintering temperature is between 1500°C and 1700°C, and the heating rate and holding time need to be precisely controlled to ensure the uniformity and excellent performance of the material.

4. Cooling and processing: The sintered zirconia disc needs to be slowly cooled to room temperature, which helps to eliminate thermal stress and prevent material cracking. After cooling, the disc body is post-processed, such as removing surface irregularities and fine grinding to achieve the required dimensional accuracy.

5. Surface treatment: In order to improve the adaptability and aesthetics of the zirconia disc, the surface of the disc will be polished and colored, especially when high transparency and aesthetic effects are required.

6. Precision machining and testing: During the production process, CAD/CAM systems are used for precise design and machining. CNC milling machines are used to precisely machine the zirconia disc to ensure that it meets specific clinical application requirements. Finally, the product undergoes strict quality control testing to ensure that the strength, adaptability and aesthetics of each disc body meet the standards.
