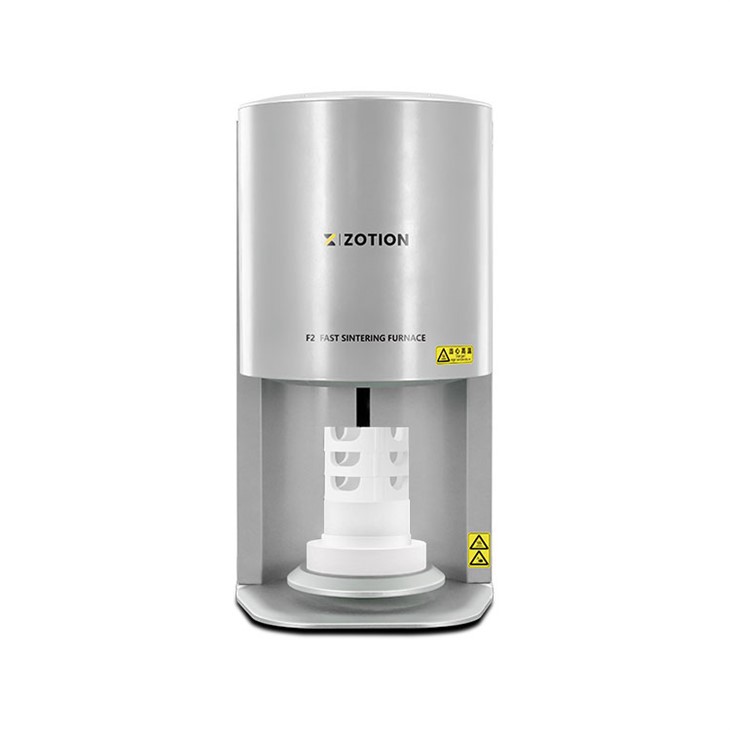

zirconia Fast dental Sintering Furnace For Dental Lab





Zotion's new product F2 fast sintering furnace is a good choice for your dental lab . Compared with F1, it is more economical . And it can sinter zirconia discs, glass ceramic. And it can also do zirconia glazing .





Rated Voltage
220V AC ±20%
Wide voltage design, compatible with global power systems and highly tolerant to voltage fluctuations.

Rated Power
2500W
Efficient heating configuration, balancing fast temperature rise with optimized energy consumption.

Maximum Temperature
1650°C
Suitable for full sintering of 3Y, 4Y, and 5Y zirconia, as well as glass ceramic materials, including high-translucency zirconia.

Heating Rate
100°C/min
Supports both fast and standard modes. Fast mode enables same-day chairside restorations.

Temperature Accuracy
±1°C
High-end industry standard, ensuring consistent strength, translucency, and color uniformity of restorations.

Appearance & Weight
Silver-gray finish, 420 × 320 × 600 mm, net weight 38 kg
Compact desktop design, no dedicated equipment room required-ideal for chairside clinics and small laboratories.







The advantages of zirconia Fast dental Sintering Furnace For Dental Lab



1. Large-capacity sintering chamber: can hold 3 layers of trays and sinter 80-100 teeth
The internal space of the sintering furnace adopts a three-dimensional layered structure design, which can hold three layers of standard sintering trays at the same time.
Each layer can hold about 30-35 tooth units (such as single crowns or bridges), and the total capacity reaches 80-100 units, greatly improving the efficiency of a single work.
Even when fully loaded, it can ensure temperature uniformity and avoid the problem of inconsistent color or density of upper and lower layers of teeth.
2. The maximum heating rate can reach 100°C/minute, realizing fast and slow burning modes
The heating rate is flexible and adjustable, and it can be easily switched from slow sintering (suitable for high-transparency, multi-layer gradient materials) to fast sintering (suitable for daily repair of single crowns).
The fast-firing mode can compress the sintering time of some products to within 30-60 minutes, greatly improving the efficiency of same-day delivery, and is suitable for "immediate restoration" or "Chairside CAD/CAM" processes.
The slow-firing mode is suitable for high-requirement ceramic blocks (such as multi-layer aesthetic ceramics). Through the temperature control curve editing function, users can finely adjust the heating, constant temperature and cooling sections to avoid cracking and discoloration.
3. Use high-purity silicon-molybdenum rod heating elements for faster, more stable and more accurate
The heating element uses high-purity Si-Mo silicon-molybdenum rods, which have excellent oxidation resistance and high-temperature durability.
High thermal conductivity and fast thermal response improve sintering efficiency while maintaining long-term stable output.
Compared with ordinary heating wires, there is no impurity release and no pollution to ceramic blocks. It is particularly suitable for sintering of dental materials that require a high clean environment (such as imported zirconia and multi-layer glass ceramics).
The element has a long life, reduces the frequency of replacement, and reduces after-sales and maintenance costs.
4. Smaller size, lighter weight, easy to install and move
The compact insulation system and lightweight stainless steel shell design independently developed by Zotion make the overall equipment lighter and more flexible.
Compared with traditional sintering furnaces, the F2 furnace is about 15–25% smaller in size, making it easy to place in dental clinics, small laboratories or laboratory tables without taking up space.
Easy to install, plug and play, suitable for export, mobile clinics or clinical field sintering and other scenarios.
Lower transportation costs, especially for international shipments or overseas distribution.
5. Ultra-high temperature precision control ±1℃, maximum temperature 1650°C
The temperature control accuracy can reach ±1℃, which is achieved by the microcomputer PID intelligent temperature control system, which can ensure that the temperature of the entire furnace is highly uniform.
When sintering multi-unit crowns, it can ensure that the density, color and light transmittance of different parts are consistent, avoiding the problem of "different colors in the same furnace".
The maximum sintering temperature can reach 1650℃, which meets the sintering requirements of all mainstream zirconia and high-strength glass ceramics, and is compatible with almost all brands of ceramic blocks on the market (such as Amann Girrbach, Ivoclar, Aidite, 3M, etc.).
