Fast slow high temperature sintering microwave furnace zirconia dental sintering furnace





Core Parameters

Category	ZOTION F2 Specifications	Value for Clinics / Labs / Milling Centers
Brand / Model / Origin	ZOTION F2, Chongqing, China	High cost-performance domestic brand; fast after-sales response; lifetime technical support.
Sintering Efficiency / Modes	Max heating rate 100°C/min; supports fast & standard modes; three-layer sintering tray, chamber size 100 × 200 mm	Fast mode enables same-day chairside restorations; standard mode ensures high-precision results for complex cases; three-layer structure increases batch capacity.
Temperature Accuracy	Max temperature 1650°C; control accuracy ±1°C	Ensures optimal density, strength, and color consistency for high-performance zirconia restorations.
Machine Dimensions	420 × 320 × 600 mm, net weight 38 kg	Compact and space-saving; suitable for chairside countertops or small dental labs.
Operation Interface	Touchscreen UI with preset fast/standard sintering programs	Easy to operate; clinical staff can master operation with minimal training; reduces operational complexity.
Power Supply & Consumption	220VAC household voltage; rated power 2500W	No special electrical setup required; directly usable in clinics/labs; low energy consumption.
Warranty & Service	12-month warranty (excluding consumables); lifetime technical support	Minimizes maintenance risks and ensures long-term reliability.

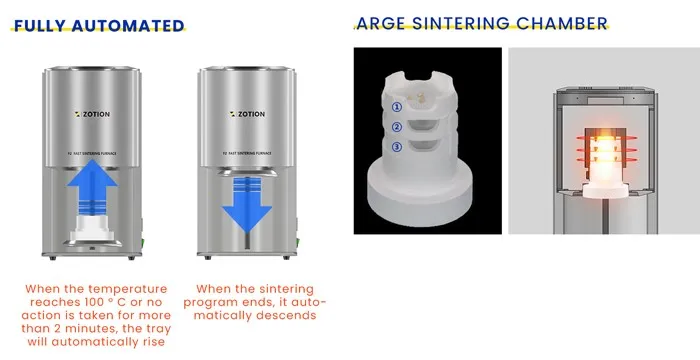

1. Dual Fast/Standard Sintering Modes + 100°C/min Heating Speed

The furnace supports both fast and standard sintering programs. Heating speed reaches 100°C/min, suitable for different restoration requirements and production schedules.

A 100 × 200 mm chamber combined with a three-layer tray structure allows multiple restorations to be processed at the same time. Each layer maintains stable temperature distribution during heating.

Fast mode is suitable for rapid zirconia sintering, while standard mode is suitable for long-span bridges and thicker restorations requiring slower heating and cooling control.

Features

Heating rate up to 100°C/min

Fast and standard sintering modes

3-layer tray structure

Chamber size: 100 × 200 mm

Supports zirconia and glass ceramic restorations

Advantages

Single crown fast sintering can be completed in less than 1 hour

Multiple restorations processed in one cycle

Suitable for chairside and laboratory workflows

Reduced risk of cracking in large restorations



2. ±1°C Temperature Accuracy + Uniform Heating Structure

The furnace uses a high-precision PID temperature control system with real-time monitoring sensors. Temperature accuracy is maintained within ±1°C during the sintering cycle.

Four-side heating and high-density insulation materials help maintain stable heat distribution throughout the chamber. Temperature difference inside the chamber remains controlled within 3–5°C.

Maximum temperature reaches 1650°C for high-strength zirconia materials.

Features

Temperature accuracy: ±1°C

Maximum temperature: 1650°C

Four-side heating structure

Stable thermal distribution

Advantages

Stable zirconia density after sintering

Consistent translucency and shade performance

Reduced discoloration and deformation

Improved batch consistency

3. Touchscreen Operation + Preset Programs + Power-Off Memory

The furnace is equipped with a 7-inch touchscreen interface and built-in preset sintering programs for zirconia, glazing, and glass ceramics.

The power-off memory function records current sintering status automatically. After power recovery, the program continues from the interruption point.

Features

7-inch touchscreen

More than 40 preset programs

Power-failure recovery function

Real-time parameter display

Advantages

Simple daily operation

Reduced manual parameter setup

Stable long-cycle sintering

Reduced material loss caused by unexpected shutdowns

Safety functions include:

Over-temperature alarm

Door-open protection

Automatic shutdown protection

4. Compact Structure + Standard 220V Power Supply

The furnace uses a compact structure with dimensions of 420 × 320 × 600 mm and a net weight of 38 kg.

It operates with standard 220V power and rated power of 2500W, suitable for clinics and laboratories without additional industrial electrical installation.

Features

Machine size: 420 × 320 × 600 mm

Net weight: 38 kg

Rated power: 2500W

Standard 220V voltage

Advantages

Easy placement in limited workspaces

Convenient transportation and installation

Low operating noise

Stable energy consumption during continuous operation

5. Multi-Material Compatibility + CAD/CAM Workflow Support

The furnace supports zirconia, glass ceramics, and resin-matrix ceramic materials within a temperature range of 800–1650°C.

Compatible with mainstream CAD/CAM workflows and open milling systems.

Features

Temperature range: 800–1650°C

Compatible with zirconia and glass ceramics

Supports digital restoration workflow

Advantages

One furnace supports multiple restoration types

Suitable for crowns, bridges, veneers, and glazing

Compatible with different material brands

Simplified digital production process
