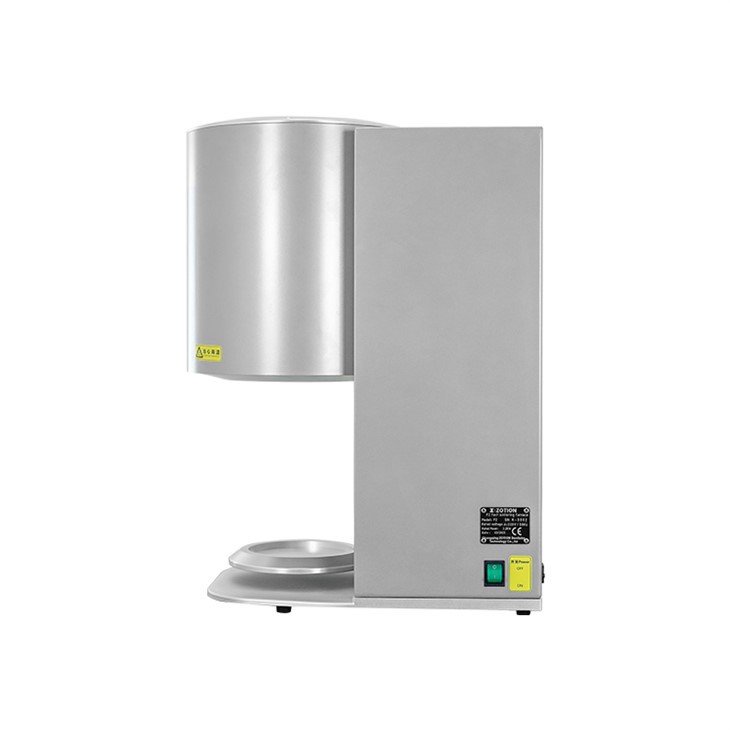

Dental Lab Clinic Zirconia Sintering Furnace
Dental Lab Clinic Zirconia Sintering Furnace consist of a double shell structure with excellent insulation. The specially designed structure ensures that the furnace can achieve fast heating and cooling procedures, providing a cleaner working environment during sintering process.It can sinter zirconia block, glass ceramics and glazing It can be set up with multiple temperature profiles to meet the different sintering requirements of our customers. What's more, Multiple languages for choice. The large size allows the furnace to sinter 3 crucibles (MAX.90 crowns) at a time,making it a good choice for dental labs and clinic. It is equipped with a touch screen control system for easier operation. Not only can sinter zirconia but also can sinter glass ceramics and glazing. It includes 20 sintering programs, the user can edit it ,so it is very friendly ,What's more, the special design structure of the furnace allows for fast heating and fast cooling, It is very popular in the denture processing industry .It supports fast sintering and slow sintering both.
- Product Introduction
Products Description
Dental Lab Clinic Zirconia Sintering Furnace can achieve sintering temperature up to 1650°C, which can make the zirconia material obtain the best density and strength. The furnace is equipped with a precise temperature control system to keep the fluctuation less than ±1°C, and the sintering quality is high. It meets ISO and CE standards, safe and reliable. The intuitive interface and intelligent management system facilitate real-time monitoring and adjustment, suitable for small dental laboratories and large-scale production. 100 degree per min fast zirconia sintering furnace is an effective and reliable choice.
Products parameter
Products Details
Products advantages
1. Extremely fast sintering, shortened cycle
High heating rate: up to 100 °C/min, compared with the traditional 20-30 °C/min furnace, the heating rate is increased by 3-5 times, and the entire sintering curve time can be shortened from ≈2 h to ≈0.5-1 h.
Shortened delivery cycle: parts quickly pass through the key section from room temperature to 950 °C-1 100 °C, and the entire firing cycle can be compressed to 30-50 minutes to meet the same-day production requirements.
2. Excellent sintering uniformity
Multi-zone independent temperature control: The furnace is usually divided into multiple temperature control zones, left and right, up and down, each zone is equipped with high-precision K-type thermocouples and PID algorithms, and the temperature difference is ≤±1 °C, ensuring that each zirconium block is treated with a consistent temperature curve.
High-performance insulation material: high-density alumina fiber + microporous insulation brick composite lining is used to reduce thermal bridge effect and ensure uniform temperature field.
3. Improvement of material density and mechanical properties
Optimization curve: Rapid heating + precise constant temperature in the insulation stage can promote grain refinement, obtain higher density (＞6.0 g/cm³) and better fracture strength (＞1 000 MPa).
Reduce intercrystalline pores: Rapidly pass through the critical eutectic temperature zone, shorten the residence time of crystal phase transformation, reduce porosity, and improve transparency and mechanical properties.
factory
Cover Area
years experience
Exported Countries
Customer Services
Products certificates
100 degree per min dental oven fast zirconia sintering furnace is equipped with multiple certifications including CE certification and Medical Device Access Certificate, which guarantee its circulation and legal use in the international market.
1. Compliance with international quality standards
CE certification: The furnace complies with the EU's health, safety and environmental protection requirements and can be legally sold in the EU market. The product strictly complies with European medical device directives and standards during design, production and use to ensure the quality, safety and reliability of the equipment.
2. Regulatory compliance to enhance market competitiveness
Medical Device Access Certificate: The furnace complies with the medical device laws and regulations of the local country or region and can legally enter the relevant market.
customer feedback
