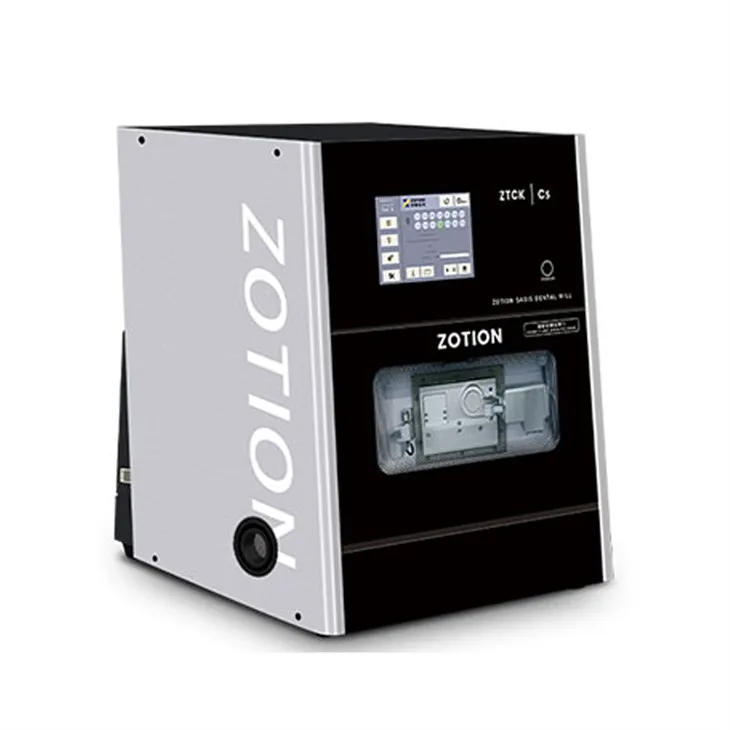

Dental Zirconia 5 Axis Milling Machine



Our this Dental Zirconia 5 Axis Milling Machine is the world's top compact size 5axis dental milling machine, grandly recommend this high-end 5-axises simultaneous machining dental milling machine for denture production jobs on dental laboratory.





Brand / Model

Brand: Zotion
Model Number: C5

Number of Axes

5-Axis Simultaneous (A-axis ±360°, B-axis +25° to -115°)

Optional 8–14 Tools, Automatic Tool Changer with Hidden Design

Remote Control with Intelligent Operating System

Power Source

Mechanical Power with Stable Output
Designed to handle the high hardness of zirconia materials, delivering strong and stable power to prevent machining interruption or edge chipping.

Quality Certification

CE and ISO Certified
Complies with medical-grade standards for zirconia restoration processing equipment, ensuring safety, quality, and global regulatory compliance.

Machine Specifications

Weight: 90 kg
Dimensions: 47 × 56 × 65 cm
Packaging: Wooden Case

Warranty: 1 Year
Support: Online Technical Assistance









1. Material Efficiency – Lower Zirconia Cost per Unit
Zirconia blanks are expensive, so material utilization directly affects lab profit. The C5 improves this through structural and software optimization.
100° angled holder
Positions the disc at a more usable cutting angle, reducing edge waste.
Compared with standard holders, material usage improves by ~30%.
5-axis control (±0.01 mm accuracy)
Cutting allowance is more precise, avoiding over-milling or scrap caused by deviation.
In real production, usable output per disc increases by 20–30%.
Zirconia milling strategy
The system generates toolpaths based on disc layout, reducing unused margins.
Batch production typically saves an additional 10–15% material.

2. Machining Accuracy – Suitable for Clinical Requirements
Zirconia restorations require stable marginal fit and surface quality.
Axis range: A ±360°, B +25° to –115°
Full-angle machining without re-clamping.
Complex cases like bridges and abutments can be milled in one setup.
Marginal fit typically controlled within <50 μm.
Auto-calibration system
On startup, the machine checks tool length, zero position, and axis deviation.
No manual calibration required.
Reduces rework caused by human error.

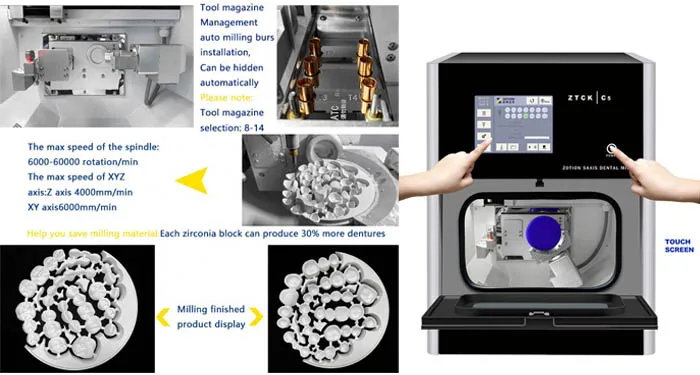

Hidden tool changer (8–14 tools)
Tool magazine retracts when idle, limiting zirconia dust exposure.
Helps maintain cutting accuracy and extend tool life.
Rigid structure (~90 kg body)
Vibration during milling is controlled within <0.002 mm.
Surface roughness after milling: Ra <0.8 μm, reducing polishing time.

3. Automation & Throughput
Designed for both chairside use and lab batch production.
Fully automatic workflow
From blank loading to final milling, no manual intervention is required.
Single zirconia crown milling time: ~30–60 minutes.
Remote monitoring
Machine status, spindle speed, and progress can be checked via network (LAN/Wi-Fi).
Suitable for multi-machine setups or overnight unattended production.
Simple operation
After startup, select preset program and begin milling.
New operators can run basic jobs after short training.
Programs can be shared across machines for consistent output.

4. Zirconia Processing Capability
Designed around the characteristics of zirconia (high hardness, brittle structure).
Material support
Works with 3Y / 4Y / 5Y zirconia, as well as PMMA, wax, and PEEK.
Stable cutting under load
Maintains consistent output when milling thick crowns or multi-unit bridges, reducing edge chipping.
Application range
Crowns, inlays, onlays, veneers, 3–6 unit bridges, and implant abutments.
Suitable for both single restorations and batch production.
Compliance
CE and ISO certified. Meets dental lab hygiene and processing requirements.

5. Durability & Support
Machine structure
Integrated cast body with wear-resistant components.
Designed for long-term operation in zirconia dust environments.
Typical service life: >5 years.
After-sales support
Standard 1-year warranty for key components.
Remote technical support for parameter setup, tool issues, and troubleshooting.
Packaging
Reinforced wooden case for transport protection.
Individual unit packing for easier handling and installation.
