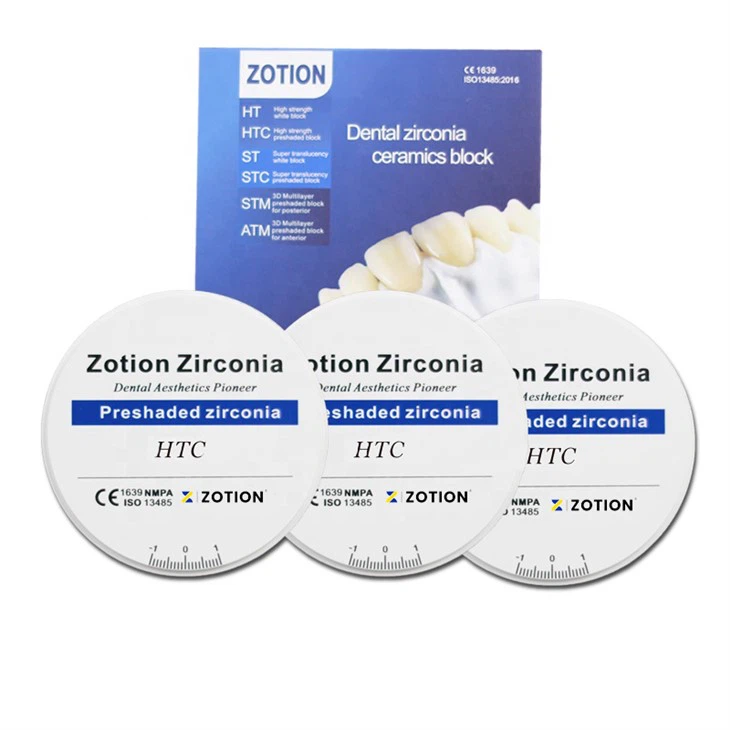

Multilayer Zirconia Disc
Zotion has many types of zirconia,including white zirconia block(HT:＞1200mpa Translucency :41%,ST:＞900mpa Translucency:43%),preshaded zirconia block(STC：＞900mpa Translucency:43%,HTC:＞1200mpa Translucency:41%),3D multilayer zirconia block(STM:800mpa-1100mpa Translucency:43%-49%,ATM:600mpa-900mpa Translucency:46%-55%),3D multilayer preshade zirconia block(TSTM:800mpa-1100mpa Translucency:43%-49%,TATM:600mpa-900mpa Translucency:46%-55%) Zotion dental zirconia block has high strength, good translucency and natural color.And Zotion zirconia has CE and ISO certificates ,it has been sold to more than 120 countries around the world .
- Product Introduction
Products Description
STC:900Mpa,44%translucency,Is made by advanced dyeing processing which based on the colorless HT zirconia ,It possesses high intensity .Transparency and natural vivid color and luster that does not need dyeing processing.
HTC:1200Mpa.41% translucency,A1,A2,A3 Colors for choice
Multilayer ATM:For making Anterior teeth ,800Mpa,43%-49% translucency,Vita 16colors for choice
Multilayer STM:For making posterior teeth ,900Mpa-1000Mpa,46%-49% translucency,Vita 16colors for choice
HT :Zotion High strength White block(1350Mpa)
ST:Super translucency White block ,44%translucency
|
Components |
Zirconia block |
|
ZrO2+HfO2+Y2O3 |
≥99% |
|
Y2O3 |
≤6.0% |
|
Al2O3 |
<0.5% |
|
Other Oxides |
<0.5% |
Physical characteristics
|
Properties |
|
|
Density before sintering(g.cm-3) |
>3.15±0.05g/cm³ |
|
Density after sintering(g.cm-3) |
>6.0g/cm³ |
|
Linear expansion coefficient |
(10.3±05)x10‾6K‾¹ |
|
Chemical solubility after sintering(μg.cm-2) |
<100 |
|
Cytotoxicity |
0 Level |
|
Radioactivity(Bq.g-1) |
<0.1 |
|
Sintering temperature(℃) |
1450-1530 |
Zotion Dyeing Liquid :
16 Colors series:
|
Type of color set |
Color series |
Capacity |
|
A color set |
A1 A2 A3 A3.5 A4 |
60ml
|
|
B color set |
B1 B2 B3 B4 |
|
|
C color set |
C1 C2 C3 C4 |
|
|
D color set |
D2 D3 D4 |
26 Colors series:
|
Type of color set |
Color series |
Capacity |
|
R color set |
2R1.5 2R2.5 3R1.5 3R2.5 4R1.5 4R2.5 |
60ml
|
|
L color set |
2L1.5 2L2.5 3L1.5 3L2.5 4L1.5 4L2.5 |
|
|
M color set |
1M1 1M2 2M1 2M2 2M3 3M1 3M2 3M3 4M1 4M2 4M3 5M1 5M2 5M3 |
factory
Cover Area
years experience
Customer Services
Exported Countries
Chongqing Zotion Dentistry Technology Co,.Ltd located in Chongqing,China,We have standard production workshop and professional after-sales teams,Also is the first manufacturer with a fully automated production line in China
Our main products are Zirconia block ,Cad Cam wax ,PMMA disk ,Milling bur ,CADCAM Milling machine for zirconia .We are gradually improving our products system and will provide with more high quality products to meet the needs of more customers .
Products certificates
Products certificates
Packaging:
Packing Detail: Each block is packed by hard carton box.
Shipment Time:
1. By Express: Shipped by air 3 working days after received payment
EMS: 3~15 days
DHL/UPS/FedEx: 3-8 days
