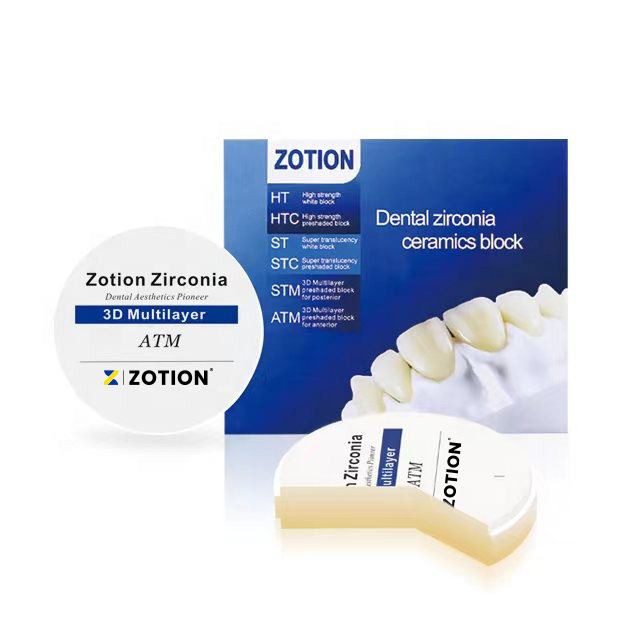

Zirconia disc Ceramic Denture zirconia Blank
Zotion has many types of zirconia,including white zirconia block(HT:＞1200mpa Translucency :41%,ST:＞900mpa Translucency:43%),preshaded zirconia block(STC：＞900mpa Translucency:43%,HTC:＞1200mpa Translucency:41%),3D multilayer zirconia block(STM:800mpa-1100mpa Translucency:43%-49%,ATM:600mpa-900mpa Translucency:46%-55%),3D multilayer preshade zirconia block(TSTM:800mpa-1100mpa Translucency:43%-49%,TATM:600mpa-900mpa Translucency:46%-55%) Zotion dental zirconia block has high strength, good translucency and natural color.And Zotion zirconia has CE and ISO certificates ,it has been sold to more than 120 countries around the world .
- Product Introduction
Products Description
|
Zirconia Blocks Different Types |
|||
|
Type |
Color |
Translucent |
Suggested Main Application |
|
HT |
White |
41% |
All Restoration |
|
ST |
White |
44% |
Coping,Crown,Bridge |
|
SST |
White |
49% |
Veneer |
|
HTC |
A1,A2,A3 |
41% |
Inner crown and inner crown bridge |
|
STC |
Vita 16color |
44% |
Long Bridge and Crown |
|
SSC |
Vita 16color |
49% |
Veneer |
|
ATM |
Vita 16color |
46%-55% |
Anterior Teeth |
|
ST,M |
Vita 16color |
43%-49% |
Posterior Teeth |
Zotion Zirconia Blocks Types Details as Following:
White Zirconia Block :HT ST SST
Preshaded Singerlayered Zirconia Block :HTC STC SSC
3D Multilayer Zirconia Block :ATM STM
EXCEPT Those Material We are also Supply Dental PMMA Block ,Dental Wax Blocks;
We are manufacture over 10 years experience in this Industry.Our material qualified by CE ISO13485 and also CFDA certificate.
Zotion Ceramic Zirconia Block Size Chart
|
Open system |
95mm system |
Amann Girrbach system |
|
D98*10mm(H) |
D95*10mm(H) |
AG71*10mm(H) |
|
D98*12mm(H) |
D95*12mm(H) |
AG71*12mm(H) |
|
D98*14mm(H) |
D95*14mm(H) |
AG71*14mm(H) |
|
D98*16mm(H) |
D95*16mm(H) |
AG71*16mm(H) |
|
D98*18mm(H) |
D95*18mm(H) |
AG71*18mm(H) |
|
D98*20mm(H) |
D95*20mm(H) |
AG71*20mm(H) |
|
D98*22mm(H) |
D95*22mm(H) |
AG71*22mm(H) |
|
D98*24mm(H) |
D95*24mm(H) |
AG71*24mm(H) |
|
D98*25mm(H) |
D95*25mm(H) |
AG71*25mm(H) |
Manufacturing process:
Raw material ratio and mixing
Use high-purity zirconium oxide powder, and add stabilizers (such as yttrium) in strict proportion. Through high-speed mixing or ball milling, ensure that the powder is evenly dispersed, laying the foundation for subsequent processes.
Molding and pressing
After adding an appropriate amount of organic binder to the evenly mixed powder, it is formed into a shape-stable green body (unsintered body) through injection molding or isostatic pressing to ensure accurate size and uniform density.
Drying and degreasing
The green body is dried, and the organic matter is completely removed through the temperature-controlled degreasing process to avoid pores or defects during high-temperature sintering.
Pre-sintering treatment
The green body is pre-sintered at a lower temperature to fully decompose the residual organic matter and improve the density and dimensional stability during subsequent sintering.

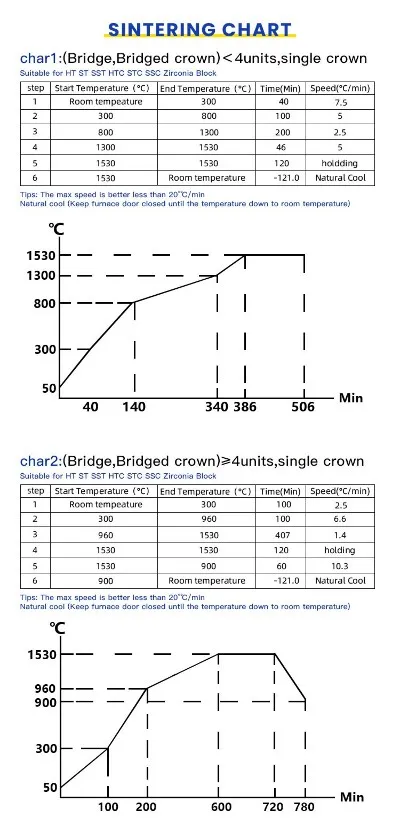

High-temperature sintering
Sintering is carried out at a temperature of 1500-1600℃ in a high-temperature furnace. The precise temperature control system ensures uniform heat distribution, densification of the material, uniform growth of grains, and a high-strength and excellent toughness zirconia blank.
Post-processing
After sintering, the green body may need to go through precision processing steps such as cutting and polishing to adjust to the final required size and surface state, suitable for clinical restoration.
Strict quality inspection
The entire manufacturing process is carried out under strict quality control, from raw material inspection to finished product delivery, using a number of physical and chemical tests, each product meets international quality standards.

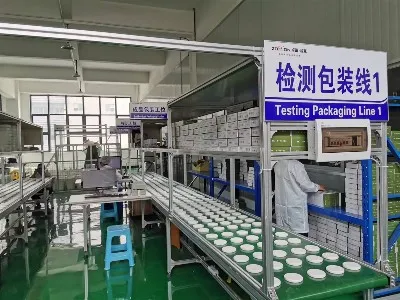

factory
Cover Area
years experience
Customer Services
Exported Countries
Zotion is a high-tech enterprise focusing on the field of digital dental restoration. Its business covers the research and development, manufacturing and sales of dental CAD/CAM equipment and high-end restoration materials.
The company has an experienced R&D team and maintains close cooperation with many internationally renowned institutions to continuously promote the innovative application of new technologies and new materials. Its product line includes high-precision 5-axis milling machines, rapid sintering furnaces and various high-performance dental raw materials, all of which use advanced automated production equipment and a full-process quality monitoring system. Each product meets strict international standards.
The factory covers an area of 2,500 square meters and adopts digital production management and modular assembly processes. From raw material pretreatment to finished product delivery, precision control is achieved to ensure product consistency and high stability. The company not only has ISO, CE and other certifications, but also provides flexible OEM/ODM customization services, which can respond quickly according to customer needs and meet the personalized requirements of the global market.
Zotion has established an after-sales service network covering domestic and foreign countries, providing professional technical support and training services, and customers receive all-round protection during equipment installation, use and maintenance.
