CEREC Compatible Zirconia Blocks for Dental CAD/CAM





Zotion produces dental zirconia blocks for laboratories working with CEREC and other CAD/CAM systems.

As a dental manufacturer, Our zirconia range covers different strength levels, translucency grades, shades, and multilayer structures. Laboratories can select the material according to the restoration type, milling system, and required aesthetic result.

For distributors, we also provide product specifications, samples, technical documents, packaging options, and OEM/ODM services.

Zotion Zirconia Selection Guide



Components
ZrO2+HfO2+Y2O3	≥99%
Y2O3	≤6.0%
Al2O3	<0.5%
Other Oxides	<0.5%



Different zirconia grades serve different purposes.

Zirconia Type Main Characteristic Common Laboratory Applications
HT High translucency Anterior crowns, aesthetic restorations
ST Balanced strength and translucency Crowns, bridges, routine restorations
HTC Pre-shaded + high translucency Aesthetic crowns, anterior restorations
STC Pre-shaded + higher strength Posterior crowns, bridges
STM 3D multilayer Anterior and aesthetic restorations
ATM 3D multilayer Aesthetic crowns and bridges
TATM 3D multilayer, Japan Tosoh powder Aesthetic and higher-end restoration workflows
TSTM 3D multilayer, Japan Tosoh powder Strength and aesthetic restoration cases
4D Pro Advanced multilayer structure High-aesthetic digital workflows

The suitable zirconia depends on the restoration design and the processing requirements of the laboratory.

CEREC CAD/CAM Compatibility

Before ordering zirconia blanks, laboratories and distributors should check the blank format used by their milling system.

Dimensions

98x10/12/14/16/18/20/22/24/25mm

95x10/12/14/16/18/20/22/24/25mm

AG71x10/12/14/16/18/20/22/24/25mm

What Dental Laboratories Should Check Before Buying Zirconia?

Choosing zirconia based only on the MPa value is not always practical.

A laboratory usually needs to consider several points.

(1). Strength

Different restoration designs have different mechanical requirements. Check the manufacturer's stated flexural strength and recommended applications for the selected zirconia.

(2) Translucency

Higher translucency can be useful for aesthetic cases, while higher-strength grades may be preferred for certain posterior or multi-unit restorations.

(3)Shade

White zirconia gives technicians

more freedom during coloring. Pre-shaded zirconia reduces part of the coloring process.

(4) Multilayer Structure

For multilayer zirconia, the position of the restoration inside the blank affects the final shade transition. CAM nesting should take the layer structure into account.

(5) Sintering Program

Different zirconia materials may require different firing parameters. Laboratories should use the sintering recommendations for the selected material rather than applying one program to every zirconia block.

(6)Milling Compatibility

The blank diameter, thickness, holder type, and CAM settings need to match the milling system.



Zotion was founded in 2009 and has a history of 17 years.

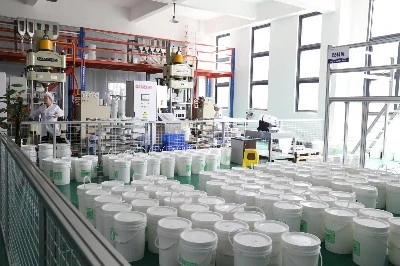

Our factory has advanced production equipment and technical team, and constantly improves product quality and production efficiency. The raw materials we select are strictly screened and tested to ensure the reliability and durability of the products. Our factory also always adheres to the protection of the environment and employees and strictly abides by relevant regulations and standards.
In order to establish a closer connection with customers, we have a professional sales team and after-sales service team, which can provide comprehensive consultation and support. We also actively participate in industry exhibitions and activities to communicate with customers.
We are well aware of the importance of product quality and customer satisfaction. We always provide
the best Cerec zirconia blocks and continuously improve our services and support.

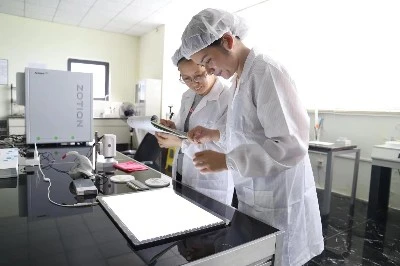

Quality Control for Zotion Zirconia Blocks

Zirconia quality is closely related to raw material quality and production control.

Our production process includes checks covering:

Raw Material

Raw materials are checked according to incoming material requirements before entering production.

Block Production

Production parameters are monitored during the manufacturing process.

Dimension Inspection

Finished blanks are checked for dimensions and appearance before packing.

Product Inspection

Finished products are inspected according to the applicable product specifications.

Samples for Laboratory Testing

Laboratories often prefer to test zirconia before moving to regular purchasing.

Zotion can provide samples for product evaluation, subject to the specific product and order requirements.

During testing, laboratories can compare:

Milling performance
Sintering behavior
Shade
Translucency
Shrinkage
Surface condition
Final restoration appearance

If you are already using another zirconia brand, you can also provide the zirconia model, size, shade, and machine information. We can recommend a comparable Zotion option for testing.

Support for Dental Distributors

Zotion works with dental distributors in different markets.















FAQ
1.Which Zotion zirconia is suitable for anterior crowns?

HT, HTC, STM, ATM, TATM, TSTM, and 4D Pro can be considered for aesthetic anterior cases. The choice depends on the required translucency, shade, strength, and restoration design.

2.Which Zotion zirconia is suitable for bridges?

ST, STC, and selected multilayer zirconia grades can be used for bridge applications. The appropriate material depends on the bridge design and required mechanical properties.

3.What is the difference between ST and STC?

ST is a white zirconia option, while STC is a pre-shaded zirconia option. Their selection is mainly related to shade requirements and workflow preferences.

4.What is the difference between HT and HTC?

Both belong to the higher-translucency range. HT is supplied as white zirconia, while HTC is pre-shaded.

5.What is the difference between STM, ATM, TATM and TSTM?

They are different Zotion 3D multilayer zirconia series with different material characteristics and positioning. TATM and TSTM use Japan Tosoh zirconia powder.

For a specific restora

tion type, we can provide the corresponding technical data for comparison.

6.What is the advantage of multilayer zirconia?

Multilayer zirconia contains different shade and translucency layers within one blank. This can reduce part of the manual characterization work and provide a gradual shade transition in the finished restoration.

7.Are Zotion zirconia blocks compatible with CEREC?

Compatibility depends on the specific milling unit and blank format. Please provide the CEREC machine model and the blank dimensions you currently use so we can check the appropriate Zotion option.

8.Can distributors order different zirconia models together?

Yes. The available product combination depends on the order quantity and product requirements. Distributors can discuss a mixed product order with our sales team.

9.Can I test Zotion zirconia before placing a bulk order?

Yes. Sample testing is available for laboratories and distributors. The sample arrangement depends on the selected zirconia series and quantity.

10Does Zotion provide OEM zirconia blocks?

Yes. OEM and ODM cooperation is available for qualified customers. Packaging, labeling, and selected product specifications can be discussed according to the project.

11.Why Buy Zirconia Directly from Zotion?

For laboratories, working directly with the manufacturer gives you access to product specifications, technical information, samples, and processing guidance from the source.

For distributors, direct manufacturer cooperation also makes it easier to discuss product combinations, packaging, OEM requirements, and long-term supply.

Zotion's main product categories cover zirconia blocks, dental milling machines, and sintering furnaces, allowing customers to source several parts of a digital dental workflow from one manufacturer.

Request Zotion Zirconia Samples：

If you are a dental laboratory looking for a new zirconia material, send us your current zirconia model and milling system.

If you are a dental distributor looking for zirconia products for your market, tell us your target product range, preferred specifications, and estimated purchasing volume.

We can provide the relevant zirconia models, technical specifications, samples, pricing, and cooperation information for your evaluation.
