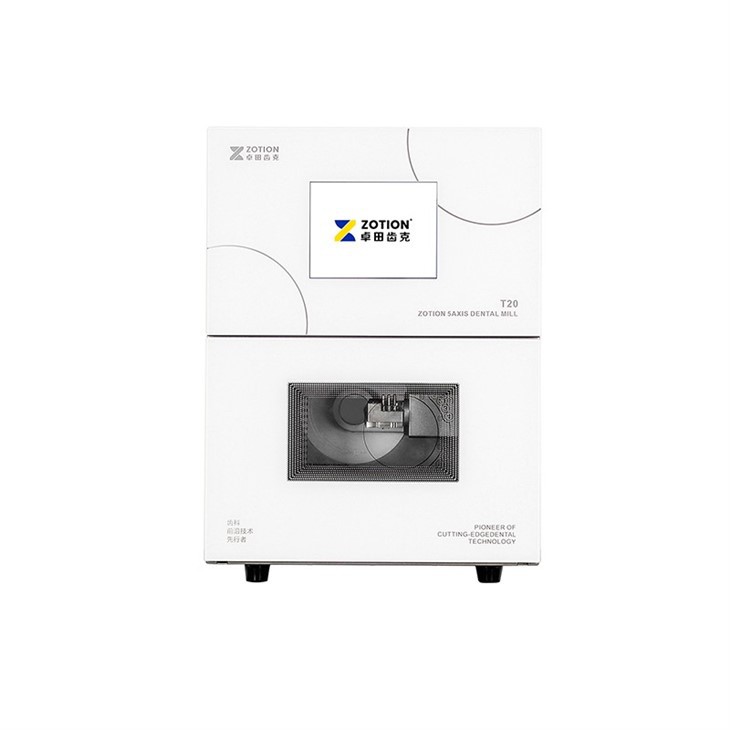

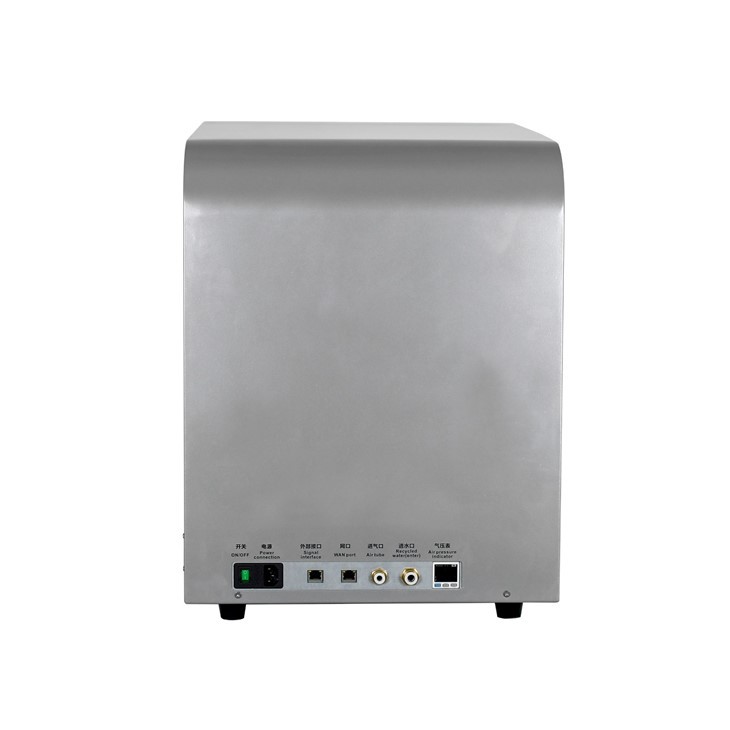

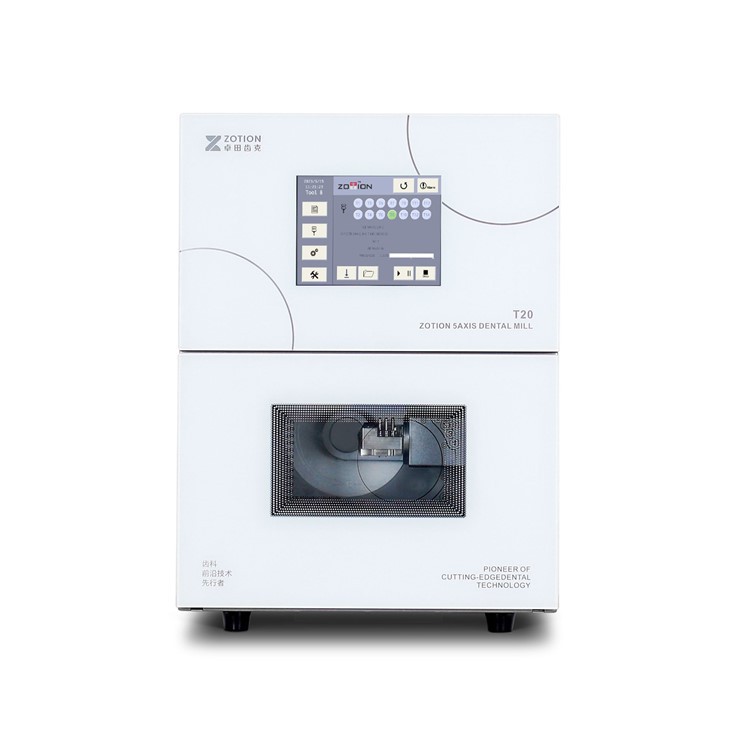

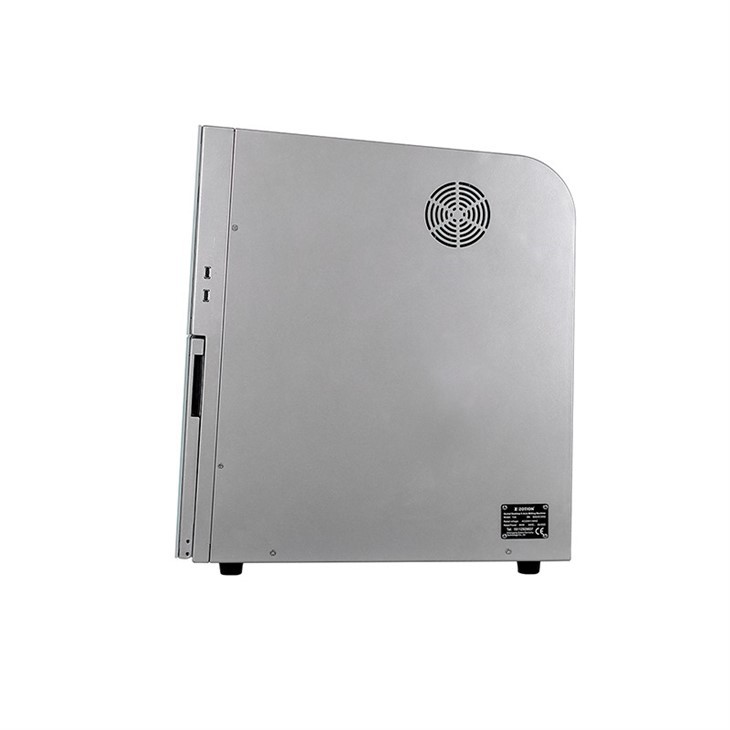

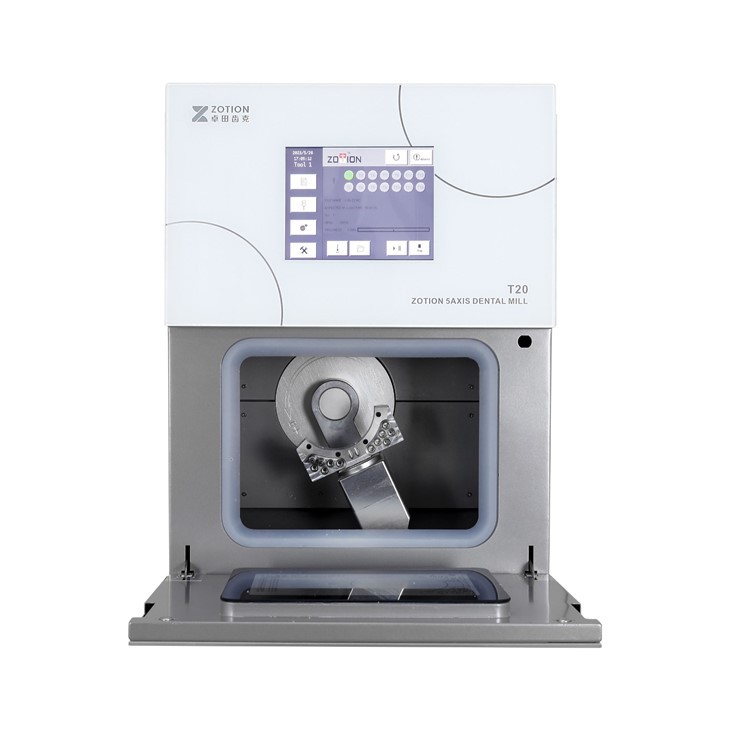

T20D Dental Clinic Dry 5 Axis Milling Machine







The cheapest milling macine in China is made by ZOTION, The modle is T20D, It is a Dry 5 axis milling machine ,T20D is our fourth--generation milling machine ,We launched in June 2023, It has compact structure, small weight and move easy , so it is best choice for dental clinic .

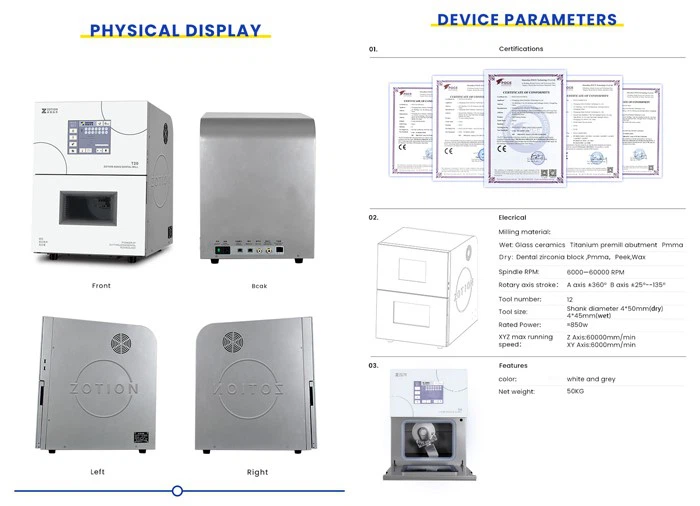

Model	T20D
Axis	5
Milling mode	Dry

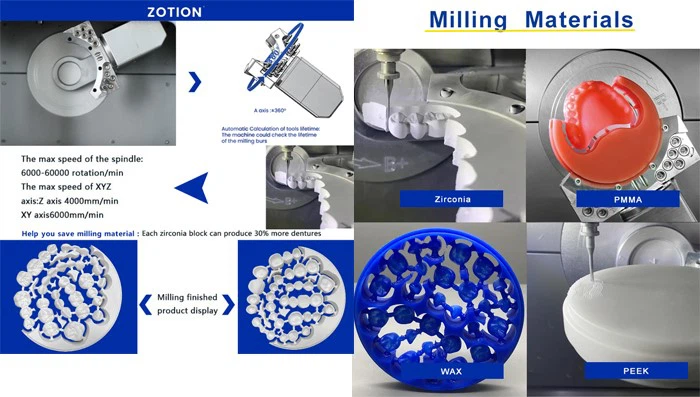

Milling material	Zirconia, wax , PMMA, PEEK
Spindle speed	6000-60000 RPM/min
Spindle power	850w
Spindle cooling	Air cooling

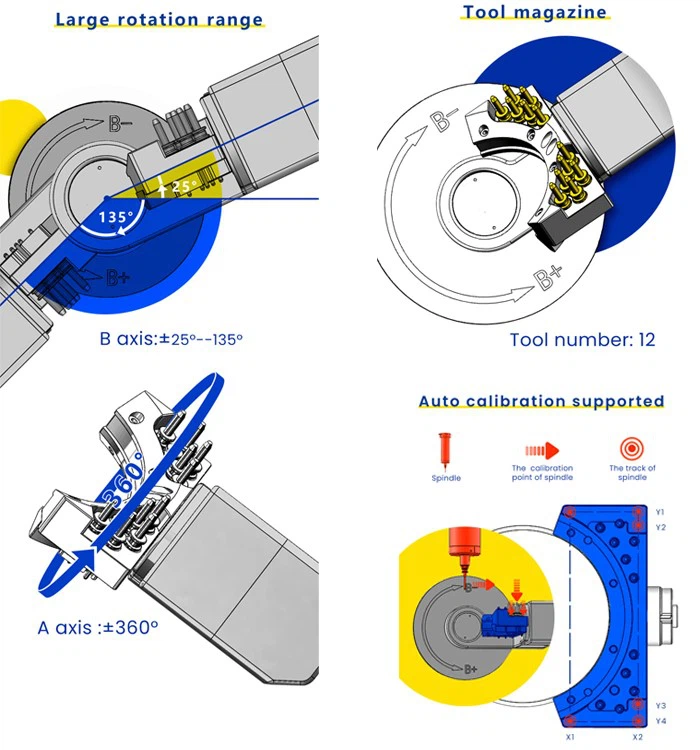

Milling Rotation range	Aaxis: ± 360° Baxis：+25°-115°
Number of tool housed	12
Compatible compressed air	＞6pa(No oil and no water)
Loadable workpiece shape	Disk diameter: 98mm
Input Voltage	AC220V ±10%,50/60HZ
External dimensions	420*540*580mm
Weight	50kg only
Control command set	NC code
Brand	ZOTION
Factory Add	Chongqing,China
OEM	Support





Advantage of T20D dental clinic Dry 5 axis milling machine

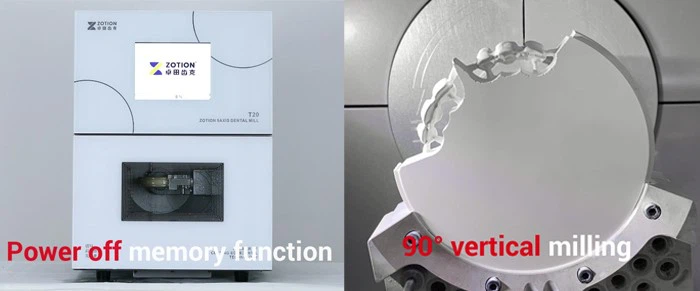

1.can 90° vercial milling

2.When running, it can display the service life of the milling burs in real time,remind you to replace the milling burs in time

3.When running, it can show how much time milling this NC file needs

4. Has power off memory fuhction(if happen outage, no need to milling from first step, will milling from stop line continually , so it can save time for you)

5.Has automatic calibration function, It's very friendly for dentists

6.Has remote control function. When the machine is running, if there is any problem, the manufacturer can know and solve this problem at the first time.





















About ZOTION



A professional zirconia blocks, CADCAM milling machine , Fast sintering furnace manufacturer with 14 years experence in China , was founded in 2009, ZOTION has rich experience in the dental industry.

ZOTION has its own factory, In Chongqing,China , produces and sells by itself, Therefore, we can meet the different needs of customers, including OEM orders, ZOTION has professional zirconia production workshop and equipment workshop , One month can production about 10000pcs zirconia blocks ,and 50pcs milling machine and 100pcs sintering furnace .We have a strong supply capacity

ZOTION all products have passed CE, ISO certification, At present, our products have been exported to more than 100 countries and have been received good feedback by many customers.

ZOTION have strong research and development capabilities,Under the leadership of chief engineer Mr.Wang and professional technical team, we have successively developed T20D, T20W professional denture milling equipment, and fast sintering furnace F1, F2, New 3D multilayer TATM, TSTM



customer feedback







Why choose ZOTION?



1. ZOTION is a manufacturer with own factory , can meet different needs of many customers , also support customize.

2.ZOTION has the most mature technology ,We are the first one to produce cadcam dry 5axis milling machine manufacturer in China .

3.ZOTION has professional after sales team, If the customer have any problem, can solve it in short time.
