dental Milling machine Dental 5 Axis CAD CAM dental Milling Machine
dental Milling machine Dental 5 Axis CAD CAM dental Milling Machine,which is a dry and high precision milling machine for dental lab and milling center. It can mill zirconia,wax,pmma,peek. C5 uses high quality spindle and servo motor,which ensures the stability of the milling machine.
- Product Introduction
Products Description
Products parameter
Unmatched precision, no calibration required
Superior performance for consistent results
Outstanding stability during operation
Direct milling without the need for models
Reliable after-sales support, ensuring peace of mind
Products Details
Products advantages
1.Enhanced Detail and Complexity: The 5-axis capability allows for intricate designs and complex dental restorations
2.Versatility: Able to work with different materials, providing flexibility in the types of restorations that can be produced.
3.Efficiency: Reduces the time required for milling and increases overall productivity in a dental lab setting.
4.in addition to,there are：
Core technology
5-axis linkage technology
The system combines X, Y, Z linear movement with A and B rotary axes, allowing the tool to reach the workpiece from multiple directions. This structure is suitable for complex restorations such as posterior crowns, bridges, and full-arch cases, where undercuts and multi-surface geometry need continuous machining.
High-speed spindle system
Spindle speed ranges from 6,000 to 60,000 RPM, supporting both roughing and fine cutting. A built-in cooling system helps control temperature during long machining cycles, keeping cutting stability and reducing tool wear.
Automatic tool change system
Some configurations include an automatic tool changer. Tool switching is handled inside the machine without manual steps, which shortens idle time between processes and supports continuous multi-step machining.
Material compatibility

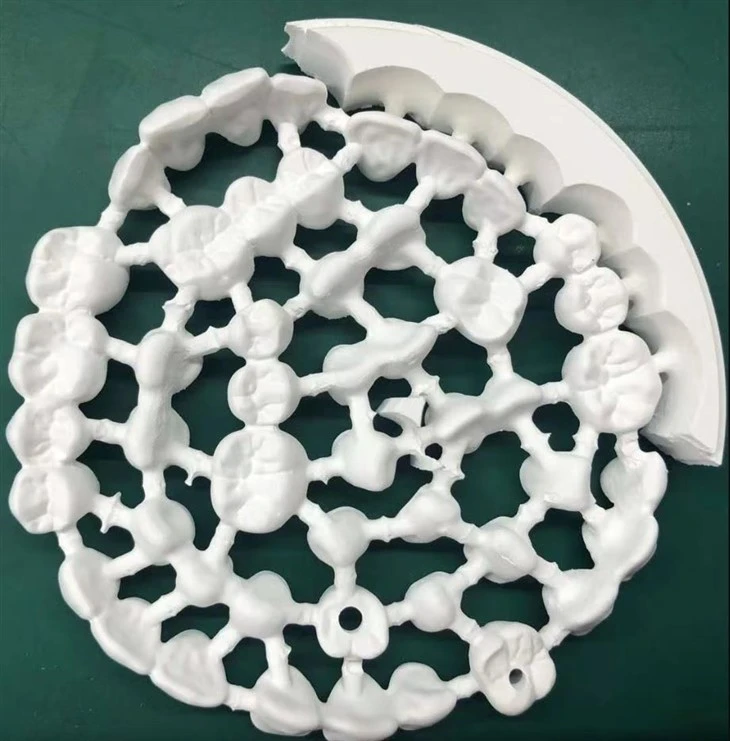

The machine processes zirconia, PMMA, wax, PEEK, and resin materials. Cutting parameters such as speed and feed rate are adjusted according to material hardness and machining requirements.
Digital workflow integration
Compatible with intraoral scanners and CAD software. Common formats such as STL and DCM can be imported directly into the system, supporting a complete digital production process from design to milling.
factory
Cover Area
years experience
Exported Countries
Customer Services
Products certificates
customer feedback
Products exhibition
Hot Tags: milling machine,cad cam machine,dental lab machine ,dental zirconia milling, cad cam
