Dental Laboratory Equipments
Dental Laboratory Equipments,which is a dry and high precision milling machine for dental lab and milling center. It can mill zirconia,wax,pmma,peek. C5 uses high quality spindle and servo motor,which ensures the stability of the milling machine.
- Product Introduction
Products Description
Dental Laboratory Equipments milling machine is a specialized device used in dental laboratories to fabricate dental prostheses like crowns, bridges, and dental implants. These machines use computer-aided design (CAD) and computer-aided manufacturing (CAM) technology to precisely mill dental restorations from various materials such as ceramics, resins, or metals.
The Dental Laboratory Equipments milling machine feature :
+ Famous numerical control system, high speed data processing and analyzing.
+ Open processing system, compatibility.
+ High precision motorized spindle speed can reach 60000RPM.
+ Digital high resolution servo control system.
+ With 5 tools, automtic change and calibrate tools.
Products parameter
| Products |
|
|
The size of the milling material
|
98mm,98.5mm and the max thickness is 80mm
|
|
The max speed of XYZ axis
|
Z axis 4000mm/min XY axis 6000mm/min
|
|
The max speed of the spindle
|
6000-60000 rotation/min
|
|
The angle of the axis
|
Aaxis +-360°B axis :25-115°
|
|
The type of milling burs
|
Auto milling burs installation
|
|
The amount of milling burs
|
DiameterΦ 4*56mm
|
|
Controlling instruction set
|
NC code
|
|
Interface
|
USB 2.0.100M Internet access
|
|
Voltage
|
220V +-10%,50/60 Hertz
|
|
Power Consumption
|
Noise-pollution level
|
|
Noise-Pollution level
|
Standby model : under 45 decibel milling model: under 70 decibel The data was tested by UT353, the level of the noise varies when different material is used.
|
|
Install conditions
|
Indoor installation altitude below 2000m,temperature :5-40 degree Celsius
|
|
The size of the machine
|
470*560*650mm
|
|
Weight
|
90kg
|
Products Details
Products advantages
Intelligent tool storage management
The built-in tool storage device of the equipment can flexibly accommodate 8 to 14 tools. When the equipment is in standby mode, the tool storage unit automatically enters the protection mode to isolate the tool from the external environment, thereby effectively avoiding the interference of fine particles or processing dust on the tool and keeping it in the best condition at all times.
Remote monitoring and operation platform
The built-in communication module and digital control system realize the real-time networking function of the equipment. The operator can monitor the equipment status in real time on the remote platform, adjust the processing parameters, and perform online fault diagnosis when necessary.
Efficient raw material fixing technology
An original 100° raw material fixing system is adopted to achieve efficient use of raw materials in the processing process by optimizing the positioning and clamping method of the workpiece. This design can significantly reduce material waste and improve material utilization by about 30%.

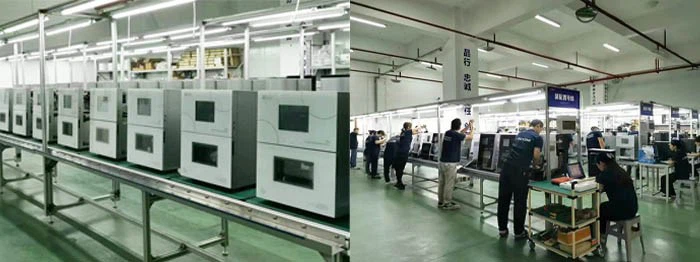

factory
Cover Area
years experience
Exported Countries
Customer Services
Our current products includes zirconia dental blocks ( white zirconia block series, prestained zirconia block series ) with approval of CFDA, ISO13485 and CE certificate, dyeing solution, CAD/CAM system and dental millig machine (4 Axis, 5 Axis).
With a devoted team focusing on researching and developing new technologies and improving the exisiting solutoins, we continue to invest in R&D, production, hiring the best team and keeping close collaborations with renowned stomatology universities to benefit our partners and customers globally with our core value "Creating superior products and service for human health".
Chongqing Zotion Dentistry Technology Co., Ltd. based in Chongqing ,Zotion is dedicated to the development, manufacture, sales and service of precise dental zirconia material together with dyeing solution, CAD/CAM systems and milling equipments for digital dental solution.
Products certificates
customer feedback
Products exhibition
Why do you choose us?
1.We have our own factory;
2.Fast delivery;
3.One sales representative serves you from inquiry to products shipped out.Communicate directly and conveniently.
4.Professional R&D team.
5.Strict QC.
6.Smooth shipping.
7.Experienced. We do OEM services.Our customers are all over the world, like USA, UK, Russia, Korea, Southeast Asia, etc
Hot Tags: Dental lab,dental cad cam,cad cam,cad cam machine,dental,zotion
