Biggest B Axis Rotate Angle zirconia Axis cad cam Milling Machine
Biggest B Axis Rotate Angle zirconia Axis cad cam Milling Machine T20D, It is a economical model , Compact structure, Small weight ,Easy to move. So,T20D is best choice for dental clinic .T20D has a high accuracy, good stability and excellent compatibility. Including long bridges,crown/coping.Equipped with high quality spindle and core parts.
- Product Introduction
Products Description
Zotion T20D is used in dental laboratories and chairside clinics, with its small size and lightweight structure, making it easy to move. It offers a competitive price. If you are interested, you can contact us and give you the best price!
|
Model
|
T20D
|
|
Axis
|
5
|
|
Milling mode
|
Dry
|
|
Milling type
|
Crown/coping,Bridge,
|
|
Max spindle speed
|
60000 RPM/min
|
|
Spindle power
|
500w
|
|
Spindle cooling
|
Air cooling
|
|
Rotation range
|
Aaxis: ± 360° Baxis：+25°-135°
|
|
Number of tool housed
|
12
|
|
Compatible compressed air
|
＞6pa(No oil and no water)
|
|
Loadable workpiece shape
|
Disk diameter: 98mm
|
|
Input Voltage
|
AC220V ±10%,50/60HZ
|
|
External dimensions
|
420*540*580mm
|
|
Weight
|
50kg only
|
|
Control command set
|
NC code
|
|
Brand
|
ZOTION
|
|
Factory Add
|
Chongqing,China
|
Products advantages

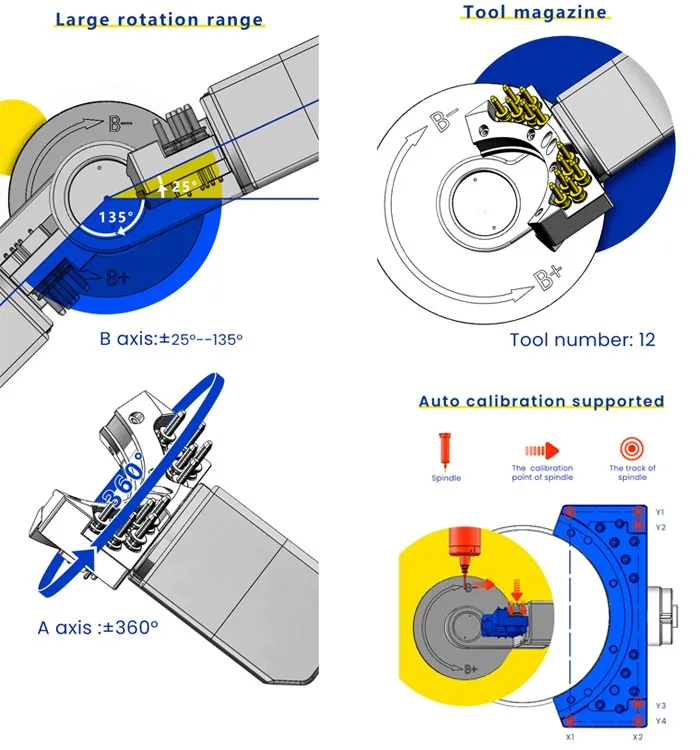

1. Wide B-axis rotation range
The B-axis supports +25° to -135° movement, giving a large working angle during milling.
Large-span bridges and complex restorations can be processed from multiple directions in a single setup. Areas that are difficult to reach with limited angles become easier to machine, and undercuts are reduced. Post-processing such as polishing takes less time, improving overall turnaround for labs and clinics.
2. Compact and lightweight structure
The machine is designed with a reduced footprint and low overall weight.
It can be placed and relocated in small dental labs or clinics without heavy installation requirements. Space utilization becomes more flexible, especially in environments with limited working areas.
3. Material-saving bracket design
A specially designed bracket system improves material utilization during milling.
Compared with standard 180° or 360° fixtures, material usage is reduced by about 30%. The structure supports stable clamping while reducing unnecessary waste, helping lower production costs over time.
4. Power-loss recovery function
Processing status is stored automatically during operation. If power is interrupted, the system retains tool position and machining progress.
After power is restored, work can continue from the last point without restarting the job. This helps avoid material waste and reduces time loss caused by unexpected shutdowns.
5. One-touch calibration
Calibration is completed through a single command instead of multiple manual steps.
Setup time is shortened significantly, and the machine can move directly into production. This reduces preparation workload and simplifies daily operation.
6. Clear and intuitive interface
The control system displays milling parameters and processing progress in real time.
Information is presented in a straightforward layout, making it easier to understand machine status. New operators can start using the system with minimal training, reducing operational errors.
7. Tool and machining tracking system
The machine records milling time and tool usage during operation.
Tool wear status can be monitored in real time, supporting timely replacement and maintenance. This helps maintain machining accuracy, improves production planning, and extends tool lifespan.

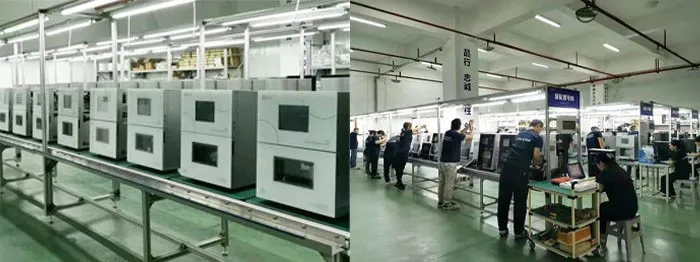

factory
Cover Area
years experience
Exported Countries
Customer Services
Zotion was established in 2009 and has been working in the dental equipment field for more than 17 years. The factory brings together an experienced R&D team and a stable production system, focusing on dental equipment and consumable manufacturing.
Products certificates
customer feedback
Hot Tags: Biggest B Axis Rotate Angle zirconia Axis cad cam Milling Machine, China, suppliers, manufacturers, factory, customized
