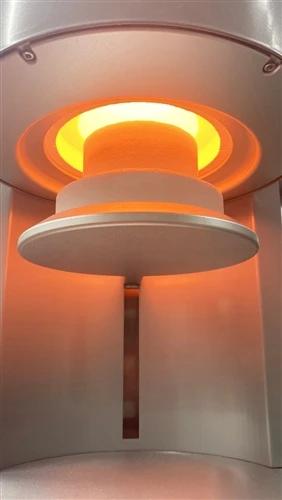

What Is the Purpose of Sintering in Dentistry?



If you are new to dental zirconia, one question often comes up:

Why does a zirconia restoration need to be sintered after milling?

After a zirconia block has been milled into the shape of a crown, bridge, or other restoration, it may already look close to the final restoration. However, the material is still in a pre-sintered state. Its density, strength, dimensions, and appearance are not yet the same as those after the recommended sintering cycle.

This is where sintering becomes an important part of zirconia processing.

From a manufacturing point of view, sintering is more than simply heating a restoration to a high temperature. The heating rate, target temperature, holding time, cooling stage, furnace condition, loading arrangement, and characteristics of the zirconia material can all affect the result.

For a dental laboratory, understanding this process can also make it easier to identify where a problem may have started when the final restoration does not come out as expected.

What Happens Before Sintering?

Most CAD/CAM dental zirconia blocks are supplied in a partially sintered, or pre-sintered, condition.

At this stage, the zirconia has enough strength to be handled and milled, but it has not reached the density of fully sintered zirconia.

This difference is important for CAD/CAM processing.

Fully sintered zirconia is much harder to machine. Pre-sintered zirconia is easier for a milling machine to cut, which can reduce tool wear and machining time.

There is another important point: the restoration is intentionally milled larger than its final size.

This is because the material will shrink during sintering.

For example, if a zirconia block has a specified linear shrinkage of approximately 20%, the CAD/CAM system needs to compensate for this change when calculating the milling dimensions. The actual shrinkage value varies between zirconia materials and manufacturers, so the value provided for the specific block should be used.

This is also why changing zirconia brands without checking the new material's shrinkage information can cause dimensional problems.

The restoration may look correct immediately after milling, but it is still an intermediate product.

What Is the Purpose of Sintering?

The main purpose of sintering is to increase the density of the zirconia by heating the material under a controlled temperature cycle.

As the temperature rises, the zirconia particles gradually bond and the spaces between them become smaller. The material becomes denser, and the restoration contracts.

This contraction is the reason the oversized milled restoration can reach its intended dimensions after sintering.

In simple terms:

Milling shapes the restoration.
Sintering develops the dense zirconia structure.

The two processes are closely connected when working with pre-sintered dental zirconia.

Sintering also affects the final microstructure of the material. The resulting mechanical and optical characteristics depend on the zirconia formulation, its starting condition, and the sintering conditions used.

It is more accurate to think of sintering as part of the material processing process rather than simply the final heating step.

Why Does Zirconia Shrink During Sintering?

This is an important point for both laboratory technicians and dental material distributors.

A pre-sintered zirconia block contains spaces between the zirconia particles. During sintering, particle bonding and diffusion reduce these spaces.

As the structure becomes denser, the overall dimensions decrease.

The amount of shrinkage is not necessarily the same for different zirconia products.

Differences in powder composition, particle characteristics, forming process, pre-sintered density, and manufacturing conditions can affect the specified shrinkage.

For this reason, there is no single shrinkage value that can be applied to every dental zirconia block.

If a laboratory changes from one zirconia brand to another, the shrinkage factor supplied with the new material should be checked before milling. The corresponding CAD/CAM settings may also need to be updated.

A small difference in the compensation factor can become noticeable after sintering, especially when the restoration requires a close fit.

What Changes During Sintering?

Several changes take place during the sintering process.

1. Density increases

The pre-sintered zirconia has a relatively porous structure. As the particles bond during heating, the spaces within the material decrease and the density increases.

The final density depends on the zirconia material and the processing conditions.

2. The restoration becomes smaller

The restoration contracts as the material becomes denser.

The CAD/CAM system accounts for this dimensional change before milling by applying the shrinkage information provided for the zirconia block.

3. The microstructure develops

Sintering changes the microstructure of the zirconia.

The composition, grain structure, density, and sintering conditions all have a role in the final mechanical properties of zirconia.

This is one reason why the manufacturer's recommended sintering cycle matters. A furnace reaching the target temperature does not tell the whole story.

4. The appearance changes

The appearance of zirconia can also change during sintering.

For preshaded and multilayer zirconia, the final shade and translucency are related to the material's formulation and processing conditions. The appearance before sintering should not be treated as an exact indication of the final appearance.

When comparing two zirconia products, it is useful to look at their instructions for use rather than assuming that the same furnace program will produce the same result.

Why Is the Sintering Temperature So High?

Dental zirconia requires high-temperature sintering because the particles need sufficient thermal energy for diffusion and densification to take place.

Many dental zirconia materials use sintering temperatures around 1,500°C or higher, although the recommended temperature depends on the specific material.

A furnace may have a maximum rated temperature of 1,600°C or 1,650°C, for example.

That specification tells you the upper temperature capability of the furnace. It does not mean that zirconia should normally be sintered at that temperature.

The recommended sintering temperature comes from the zirconia manufacturer.

This distinction is worth keeping in mind when comparing dental sintering furnaces:

Furnace maximum temperature ≠ zirconia sintering temperature.

A laboratory may need a furnace with a suitable temperature range, but the actual program should be selected according to the zirconia being processed.

Does a Higher Temperature Mean Better Sintering?

Not necessarily.

A higher maximum temperature can be a useful furnace specification, but it is only one part of the evaluation.

A zirconia sintering cycle involves several parameters:

Heating rate

Target temperature

Holding time

Temperature uniformity

Cooling rate

Furnace loading

Position of the restorations

Recommended program for the zirconia material

For example, if a zirconia manufacturer recommends sintering at a particular temperature for a specified holding time, increasing the temperature simply because the furnace can reach it may change the material's microstructure.

The same applies to holding time.

A longer or hotter cycle is not automatically a better cycle.

When evaluating a furnace, I would look at how well it can reproduce the temperature cycle required by the materials used in the laboratory, rather than focusing on the maximum temperature alone.

Why Is the Sintering Program Important?

The sintering program determines how the furnace moves through the heating, holding, and cooling stages.

A simple program can be described as:

Heating → Holding → Cooling

In actual dental applications, the program may contain several temperature stages and different heating rates.

For example, a conventional zirconia cycle may take several hours. Some zirconia materials are also designed for shorter fast-sintering cycles.

A fast-sintering cycle is not simply a shorter version of a conventional cycle.

A fast-sintering program changes the way the material is heated and cooled. Whether it is appropriate depends on the zirconia formulation and the recommendations provided by the material manufacturer.

For this reason, a laboratory should not assume that a fast program suitable for one zirconia should be used directly for another zirconia brand.

When a new zirconia material is introduced, I would check its recommended cycle and compare it with the available furnace programs before using it for regular production.

What Happens If the Sintering Conditions Are Wrong?

The result depends on which parameter falls outside the recommended range and by how much.

Possible issues include:

Final dimensions that differ from the expected result

Changes in mechanical properties

Differences in shade or translucency

Variation between sintering batches

Distortion in some restorations

Longer processing time

Additional adjustments or remakes

Not every problem that appears after sintering is caused by the furnace.

For example, an incorrect shrinkage factor in the CAD/CAM software can affect the final dimensions even when the furnace is operating normally.

The same applies to milling.

Tool condition, milling accuracy, restoration design, and the condition of the zirconia block can also affect the final result.

When investigating a sintering problem, it is useful to look at the whole processing chain rather than changing the furnace temperature immediately.

What Should a Laboratory Check Before Sintering?

When using a new zirconia material, I would check the following information first:

1. Recommended sintering temperature

Check the target temperature specified by the zirconia manufacturer.

2. Heating rate

Some materials have a specified heating rate or a recommended program with multiple heating stages.

3. Holding time

Check how long the material should remain at the target temperature.

4. Fast-sintering requirements

If the laboratory wants to use a shorter cycle, confirm that the zirconia is suitable for that type of program.

5. Shrinkage factor

Check the value that needs to be entered into the CAD/CAM software.

6. Cooling requirements

Some materials may have specific recommendations for the cooling stage. Rapid cooling and natural cooling should not be treated as interchangeable processes.

7. Furnace compatibility

Check whether the available furnace can run the required temperature range and program.

These points are usually more useful than comparing furnaces only by their maximum temperature.

What Should Distributors Know About Sintering?

Distributors who sell dental zirconia or dental laboratory equipment may also receive questions about sintering.

For example:

Why did the restoration become smaller?

Why is the final size different from the CAD design?

Can this zirconia be fast sintered?

Why does this zirconia require a different program?

Can the same program be used for another zirconia brand?

Why does the shade look different after sintering?

Why are two zirconia materials behaving differently in the same furnace?

You do not need to be a sintering engineer to answer these questions.

A basic understanding of the relationship between the zirconia material, shrinkage compensation, milling process, sintering program, and final restoration is useful when communicating with dental laboratories.

It also helps when comparing products from different manufacturers.

For example, if two zirconia blocks have different recommended shrinkage factors or sintering cycles, they should not be evaluated only by their stated strength or translucency. The processing requirements are also part of the material information.

Sintering Is Part of the Whole CAD/CAM Process

It is easier to understand zirconia processing when the steps are considered as one continuous process:

Zirconia block → CAD design → Milling → Sintering → Finishing

Each stage has its own requirements.

The CAD software needs the correct shrinkage information.

The milling machine needs to process the block according to the material specifications.

The furnace needs to run a suitable sintering cycle.

After sintering, the restoration needs to be inspected for dimensions, fit, shade, surface condition, and other requirements relevant to the case.

This is also how I would approach a sintering problem in a laboratory.

If a crown comes out with an unexpected size, for example, I would not immediately assume that the furnace is responsible. I would first check the zirconia batch, shrinkage factor, CAD/CAM settings, milling process, sintering program, furnace loading, and temperature records.

Looking at these factors together provides a practical starting point for troubleshooting.

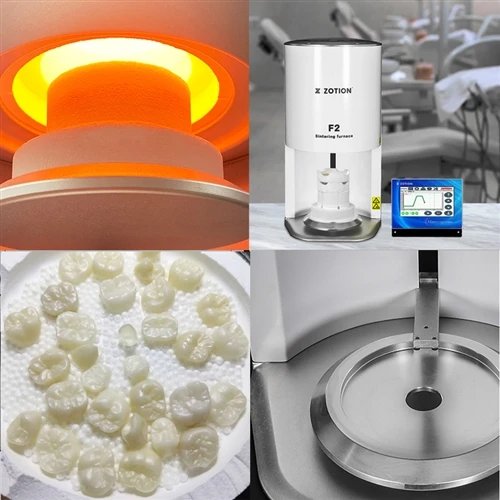

What Does This Mean When Choosing a Dental Sintering Furnace?

For a laboratory, the furnace should be considered in relation to the zirconia materials being used.

Important specifications can include:

Maximum operating temperature

Heating rate

Temperature control accuracy

Temperature uniformity

Available sintering programs

Programmable heating and cooling stages

Chamber capacity

Number and type of sintering trays

Support for conventional and fast-sintering cycles

Program storage and editing

Temperature monitoring and control

The actual importance of each specification depends on the laboratory's workflow.

A small laboratory processing a limited number of crowns may have different requirements from a larger laboratory producing multiple bridges and full-arch restorations each day.

The same principle applies to fast sintering. A shorter cycle can be useful for certain workflows, but the zirconia manufacturer's processing requirements still need to be considered first.

Final Thoughts

Sintering is the stage where pre-sintered zirconia is heated to develop a denser structure and reach the dimensions and material characteristics expected after processing.

The process may look simple from the outside: place the restoration in the furnace, start the program, and wait for it to cool.

In practice, several variables are involved.

The zirconia material, shrinkage factor, CAD/CAM settings, milling process, heating curve, target temperature, holding time, cooling process, and furnace condition all have a role in the final result.

For laboratories, I would not start by asking only:

"How hot can this furnace get?"

A more useful question is:

"Can this furnace run the temperature cycle required by the zirconia materials I use?"

That question gives a better starting point when comparing dental sintering furnaces and when deciding whether a furnace is suitable for a particular laboratory workflow.
