What Type of Furnace Is Used for Sintering?



When a dental laboratory starts working with zirconia, one of the first equipment questions is usually quite simple:

What type of furnace is actually used for sintering?

At first, the answer seems obvious.

Zirconia needs to be sintered at a high temperature, so the laboratory needs a high-temperature sintering furnace.

Once you start comparing different types of equipment, however, the question becomes more complicated.

There are conventional electric resistance furnaces, fast-sintering furnaces, furnaces using molybdenum disilicide (MoSi₂) heating elements, furnaces using silicon carbide (SiC) elements, and other heating technologies, including microwave and induction systems.

For a laboratory or distributor looking at this equipment for the first time, these terms can easily become confusing.

From an R&D perspective, I think the more useful question is not simply:

"Which type of furnace is the best?"

A more practical question is:

"Which heating method and furnace configuration match the zirconia materials, production volume, and sintering programs that the laboratory actually uses?"

That gives us a better starting point for comparing different furnaces.

The Furnace Used for Zirconia Is Different From a Conventional Ceramic Furnace

The first distinction is probably the most important one.

A conventional dental ceramic firing furnace and a zirconia sintering furnace are not interchangeable simply because both are used in dental laboratories.

Traditional ceramic firing processes generally take place at much lower temperatures.

Zirconia sintering is a high-temperature process, with many dental zirconia programs operating around the 1,450–1,600°C range, depending on the material and the manufacturer's recommended cycle.

For example, Nabertherm's dental LHT ../17 D series is specified for zirconia sintering up to 1,650°C, and the manufacturer lists molybdenum disilicide heating elements for these furnaces. Depending on the model, the company lists capacities of up to 30 or 75 single crowns per cycle.

This gives us a simple starting point:

A furnace for zirconia needs to be designed around high-temperature sintering rather than conventional ceramic firing.

Maximum temperature, however, is only one part of the specification.

The heating elements, chamber design, insulation, temperature control, cooling behavior, program settings, and usable loading area all affect how the furnace performs in actual use.

So, What Types of Furnaces Are Used?

There are several ways to classify zirconia sintering furnaces.

One way is to look at the heating technology:

Electric resistance heating

Microwave heating

Induction heating

Another way is to look at the sintering workflow:

Conventional sintering

Speed sintering

Fast or high-speed sintering

Electric resistance furnaces can also be divided according to the heating elements they use.

Two types commonly encountered in dental zirconia furnaces are:

Molybdenum disilicide (MoSi₂)

and

Silicon carbide (SiC).

These are not simply different names for the same component.

They have different electrical and thermal characteristics, and those differences can affect the way a furnace is designed and operated.

1. Electric Resistance Sintering Furnaces

The most familiar type of dental zirconia furnace is an electric resistance furnace.

The basic principle is relatively straightforward.

Electrical energy passes through a resistive heating element.

The element heats up.

Heat is transferred into the furnace chamber.

The zirconia restorations are then heated according to the programmed temperature cycle.

This type of furnace is widely used for dental zirconia processing.

A review of zirconia sintering technologies describes conventional furnaces as using resistance heating elements and notes that conventional systems can typically achieve heating rates in the range of approximately 40–70°C/min, depending on the furnace configuration.

The actual heating rate of a specific furnace can be lower or higher depending on its design and the selected program, so this range should not be treated as a universal specification.

The main point is that electric resistance heating remains a common approach for dental zirconia sintering.

Why Is Electric Resistance Heating So Common?

One reason is the level of temperature control it can provide.

The furnace can be programmed with a defined temperature-time profile.

For example:

Room temperature

↓

Controlled heating

↓

Target sintering temperature

↓

Holding period

↓

Controlled cooling

This type of control allows the furnace to follow different sintering programs for different zirconia materials.

A laboratory may have several programs saved in the furnace for different materials.

The same basic furnace can therefore be used for conventional zirconia sintering, approved fast-sintering cycles, and other material-specific programs, provided that the equipment can reproduce the required conditions.

This flexibility is one reason electric resistance furnaces remain common in dental laboratories.

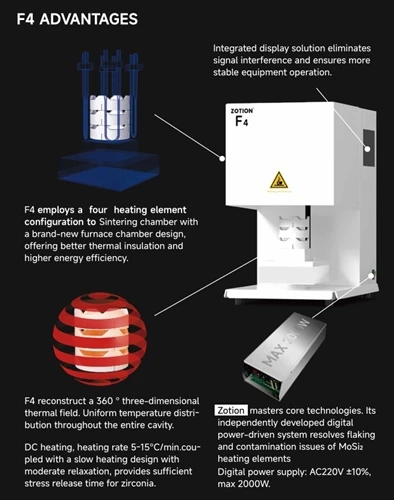

2. MoSi₂ Heating Elements

When people start comparing zirconia sintering furnaces, they will often encounter the term MoSi₂.

MoSi₂ stands for molybdenum disilicide.

It is a high-temperature heating element material commonly used in zirconia sintering furnaces.

A technical article published by Ceramic Applications describes MoSi₂ and SiC as two main heating-element types found in dental zirconia furnaces. It notes that MoSi₂ elements can be used at temperatures up to around 1,750°C, depending on the element quality and furnace design, while SiC elements are commonly used at lower maximum temperatures.

The same source reports that MoSi₂ elements can have a surface power load above 25 W/cm² and discusses heating to 1,550°C in less than 15 minutes under certain equipment conditions.

That does not mean every MoSi₂ furnace will heat at that speed.

Furnace structure, element arrangement, insulation, power control, and temperature-control settings all affect the actual heating rate.

The example does, however, show why MoSi₂ is commonly associated with high-temperature applications and relatively fast heating.

What Is Special About MoSi₂?

One characteristic of MoSi₂ is the protective silica-based layer that forms on the surface during high-temperature operation.

This oxide layer plays an important role in protecting the element at high temperatures.

The heating element is therefore quite different from a simple metallic heating wire.

For a zirconia furnace, this matters because the furnace may spend a significant amount of time at temperatures around 1,500°C or higher.

The heating elements need to withstand repeated high-temperature cycles.

The choice of heating element is therefore not just a small component decision. It is part of the furnace's overall thermal design.

3. SiC Heating Elements

Another heating element that laboratories may encounter is silicon carbide (SiC).

SiC heating elements have also been used in high-temperature dental sintering furnaces.

Compared with MoSi₂, they have different electrical and thermal characteristics.

A technical comparison published in Ceramic Applications reported that SiC elements are commonly used up to around 1,530°C, while MoSi₂ can operate at substantially higher temperatures, depending on the element and furnace design.

This difference is useful when looking at furnace specifications.

If a laboratory mainly uses zirconia materials whose recommended cycles are within the lower part of the high-temperature range, a SiC-based system may be technically suitable.

If the laboratory needs a higher maximum temperature or certain heating rates, MoSi₂ may be a suitable option, depending on the furnace design and the required sintering programs.

For this reason, I would not describe the question simply as:

"Is MoSi₂ better than SiC?"

A more useful question is:

"What does the laboratory need the furnace to do?"

4. What About Microwave Sintering?

Microwave sintering is another technology that has been studied for zirconia.

Unlike conventional resistance heating, microwave systems use electromagnetic energy to heat the material.

This changes the way energy is introduced into the zirconia and the surrounding system.

Microwave sintering has attracted research interest because it can potentially reduce processing time and produce a different heating behavior compared with conventional resistance heating.

However, microwave sintering is not simply a matter of replacing the heating elements in a conventional dental furnace.

The microwave system requires different equipment and control methods.

It is also useful to distinguish between a technology that has been studied or demonstrated experimentally and one that is commonly used in everyday dental laboratories.

For a laboratory purchasing a furnace, the practical question is whether the technology has an established workflow for the specific zirconia materials being used.

5. Induction Sintering

Induction is another technology that has been investigated for zirconia.

The principle is different again.

Instead of relying on a conventional resistance element to heat the chamber, an alternating electromagnetic field is used to generate heating through an electrically conductive susceptor or a related system.

A systematic review of zirconia sintering technologies describes induction heating as a field-assisted heating approach and notes that it can achieve higher heating rates than conventional resistance furnaces.

The review also discusses reported high-speed protocols involving heating rates of approximately 50–100°C/min and holding at around 1,570–1,590°C for 10 minutes in some research settings.

These numbers should not be interpreted as a universal induction-sintering program.

The appropriate temperature and cycle still depend on the zirconia material and the specific equipment being used.

For a dental laboratory, a high heating rate does not automatically mean that every zirconia block can be processed using that cycle.

Conventional, Speed, and Fast Sintering Are Not the Same Thing

Another source of confusion is the word "fast."

A laboratory may see terms such as:

Conventional sintering

Speed sintering

Fast sintering

High-speed sintering

These terms are related, but they are not necessarily standardized names for exactly the same process.

A recent review of zirconia sintering technologies describes speed sintering as a process that can take roughly 30–120 minutes, using a conventional furnace with a faster heating rate.

It also gives an example of a speed-sintering schedule involving a 17°C/min ramp, a 35-minute holding period at 1,540°C, followed by controlled cooling.

The exact program is material-dependent.

For buyers, this is an important point to check.

When a manufacturer says:

"This is a fast-sintering furnace."

the next question should be:

"Which zirconia materials have been tested with the fast program?"

That question provides more useful information than looking at the cycle time alone.

Why Can't Every Zirconia Be Fast Sintered?

This question comes up quite often.

The reason is that zirconia is not one single formulation.

Different zirconia materials can have different compositions, powder characteristics, and microstructures.

Their recommended sintering conditions can therefore differ.

Some zirconia manufacturers publish fast-sintering programs for specific products.

Others may recommend conventional cycles.

For example, published KATANA zirconia sintering schedules distinguish between conventional and fast programs, with different peak temperatures, heating rates, and holding times. The manufacturer's published information also specifies which restorations can be processed using the fast cycle.

This is a good example of why the furnace and the material need to be considered together.

A furnace capable of rapid heating does not automatically make every zirconia suitable for rapid sintering.

What Does the Laboratory Actually Need?

This is where the equipment decision becomes practical.

Imagine two laboratories.

Laboratory A

The laboratory mainly produces conventional zirconia restorations.

It runs several batches every day.

Cycle time is relevant, but there is no need to process every case immediately.

For this laboratory, a conventional high-temperature electric resistance furnace may be perfectly adequate.

Laboratory B

This laboratory frequently receives same-day cases.

It mills restorations in the morning and needs to complete sintering within a much shorter window.

For this laboratory, a furnace with an approved fast-sintering capability may be more useful.

The two laboratories do not necessarily need the same furnace.

Neither one is making the wrong choice.

Their production requirements are simply different.

What About a Small Furnace?

Small dental sintering furnaces have one practical advantage.

A smaller chamber contains less thermal mass, which can make heating and cooling faster, depending on the furnace design.

An older industry report on dental sintering furnaces noted that some small furnaces could process approximately 20–50 units per cycle while offering sintering cycles as short as around 90 minutes.

This illustrates a useful trade-off.

A small chamber may be attractive for:

Smaller laboratories

Same-day cases

Lower daily production

Faster heating and cooling

A larger chamber may make more sense for:

High-volume laboratories

Multiple trays

Larger batches

Laboratories trying to reduce the number of daily cycles

The right capacity depends on actual production volume.

Buying the largest furnace available does not automatically make a laboratory more efficient.

What About a Larger Furnace?

Large furnaces are useful when the laboratory needs to process more restorations per cycle.

For example, Nabertherm currently lists one LHT model for up to 30 single crowns per cycle and another for up to 75 single crowns per cycle, depending on the model.

Capacity should be considered together with cycle time.

For example:

Furnace A

20 crowns × 2-hour cycle

Furnace B

60 crowns × 6-hour cycle

The second furnace has three times the capacity, but the daily production calculation is more complicated.

The laboratory needs to consider:

Number of cycles per day

Loading and unloading time

Cooling time

Actual number of restorations per cycle

Peak production periods

A furnace should therefore be evaluated according to the laboratory's workflow, not only its chamber volume.

The Heating Element Is Not the Only Important Part

When buyers hear "MoSi₂" or "SiC," it is easy to focus entirely on the heating element.

The heating element, however, does not operate independently.

Actual furnace performance also depends on:

Chamber design

Insulation

Heating element arrangement

Temperature sensor

Control system

Power control

Tray design

Cooling system

These components affect temperature distribution and the way the furnace follows the programmed cycle.

For example, two furnaces can both use MoSi₂ elements but have different chamber structures and different temperature characteristics.

Therefore:

The same heating element does not necessarily mean the same furnace performance.

This is worth keeping in mind when comparing equipment from different manufacturers.

What About Temperature Uniformity?

Temperature uniformity is another factor that deserves attention.

A furnace may reach 1,500°C, but that does not automatically mean every point inside the chamber is exactly 1,500°C.

Temperature distribution depends on the furnace's thermal design.

When evaluating a furnace, buyers can ask:

How is temperature uniformity measured?

At what temperature?

How many measurement points are used?

What is the effective sintering area?

Was the furnace empty or loaded during the test?

Is there a temperature mapping record?

These questions can provide more useful information than simply asking for the maximum temperature.

What Should a Distributor Compare?

For distributors, furnace selection can be more complicated because the equipment may be supplied to laboratories with very different production patterns.

One customer may need a small furnace for 10–20 restorations.

Another may process 50 or more restorations per cycle.

Another may care most about fast sintering.

Another may primarily work with high-translucency zirconia and place more emphasis on following the material manufacturer's recommended thermal cycle.

For this reason, I would avoid recommending a furnace based only on:

Price + maximum temperature.

A more useful comparison would include:

Parameter	Why it matters
Maximum temperature	Indicates the available high-temperature range
Heating rate	Relevant to conventional and fast-sintering programs
Heating element	Affects temperature capability and furnace design
Chamber capacity	Determines the possible batch size
Temperature uniformity	Relevant to consistency across the usable area
Program control	Useful when working with several zirconia materials
Cooling	Affects total cycle time and the complete thermal profile
Serviceability	Matters when the furnace is used every day
Replacement parts	Important for long-term operation
Supported materials	Should match the zirconia products used by customers

This type of comparison is more useful than simply ranking furnaces by maximum temperature.

What Type of Furnace Should a Laboratory Buy?

There is no single answer.

If the laboratory mainly needs conventional zirconia sintering, a reliable electric resistance furnace with an appropriate high-temperature heating system may be sufficient.

If the laboratory has a high daily workload, chamber capacity and cycle efficiency become more important.

If the laboratory needs same-day production, an approved fast-sintering capability may be useful.

If the laboratory works with several zirconia brands, programmable temperature cycles become more important.

If the laboratory is processing highly translucent zirconia, it should also pay attention to the material manufacturer's requirements and the furnace's cleanliness and heating-element characteristics.

The decision should start with the zirconia materials and the laboratory's workflow, then move to the furnace.

Not the other way around.

A Question I Would Ask Before Buying

If I were helping a laboratory choose a sintering furnace, I would not start by asking:

"How hot can it get?"

I would ask:

"What zirconia are you using, how many restorations do you sinter per day, and how quickly do you need the cycle to finish?"

Those three questions already provide a useful starting point.

Then I would look at:

What sintering programs do those zirconia materials require?

Can the furnace reproduce those programs?

How many restorations can actually be loaded?

How does the furnace perform at the required temperature?

What are the expected maintenance and replacement costs?

This gives us a more realistic picture of whether a furnace is suitable for the laboratory.

One More Thing: Don't Choose a Furnace by Heating Speed Alone

Fast heating is attractive because it can shorten the cycle.

It is not automatically better for every zirconia material, though.

The zirconia manufacturer's recommended program should remain the reference.

A furnace capable of 100°C/min does not mean that every material should be heated at 100°C/min.

Likewise, a furnace with a 1,650°C maximum temperature does not mean that zirconia should be sintered at 1,650°C.

The furnace provides a range of capabilities.

The material determines which part of that range should actually be used.

Final Thoughts

So, what type of furnace is used for sintering?

For dental zirconia, the most common approach is a high-temperature electric resistance sintering furnace, with MoSi₂ and SiC among the heating-element technologies used in the market.

Other approaches, including microwave and induction heating, have also been investigated and used in specific applications, particularly where faster heating or different thermal mechanisms are being explored. Research reviews have reported speed-sintering and induction-based cycles with higher heating rates than conventional programs.

For a laboratory, however, the most useful question is not which technology sounds the most advanced.

The more practical question is whether the furnace can provide the temperature, heating rate, holding time, cooling conditions, and temperature distribution required by the zirconia materials being used.

A furnace with a higher maximum temperature is not automatically a better furnace.

A faster furnace is not automatically a better furnace.

A larger furnace is not automatically a better furnace.

And a particular heating element does not tell the whole story.

When we look at a sintering furnace from an R&D perspective, we look at the complete thermal system.

The heating element is one part.

The chamber is one part.

The temperature control is one part.

The program is one part.

And the zirconia material itself is another.

The most suitable equipment choice is usually the one that fits these factors with the laboratory's actual workflow.
